Deluxe Drip Screed
  • Available in Aluminum Alloy (6063 T-5)
  • Available With 1/8‚Äù x 1‚Äù Vent Slots or Unvented
The Deluxe Drip Screed is a visually pleasing drip screed for conventional 3-coat stucco. It functions as a plaster stop and drip edge and creates a reveal at the fascia or a soffit corner condition.
Deluxe Drip Screed Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Aluminum Alloy (6063 T-5)

ASTM & CODE STANDARDS
AA-M32-C10A21, AAMA 605.2, C841, C1047, C1063, B136-84, B244-97, D4214-98, ND1730-67-TYPE B

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

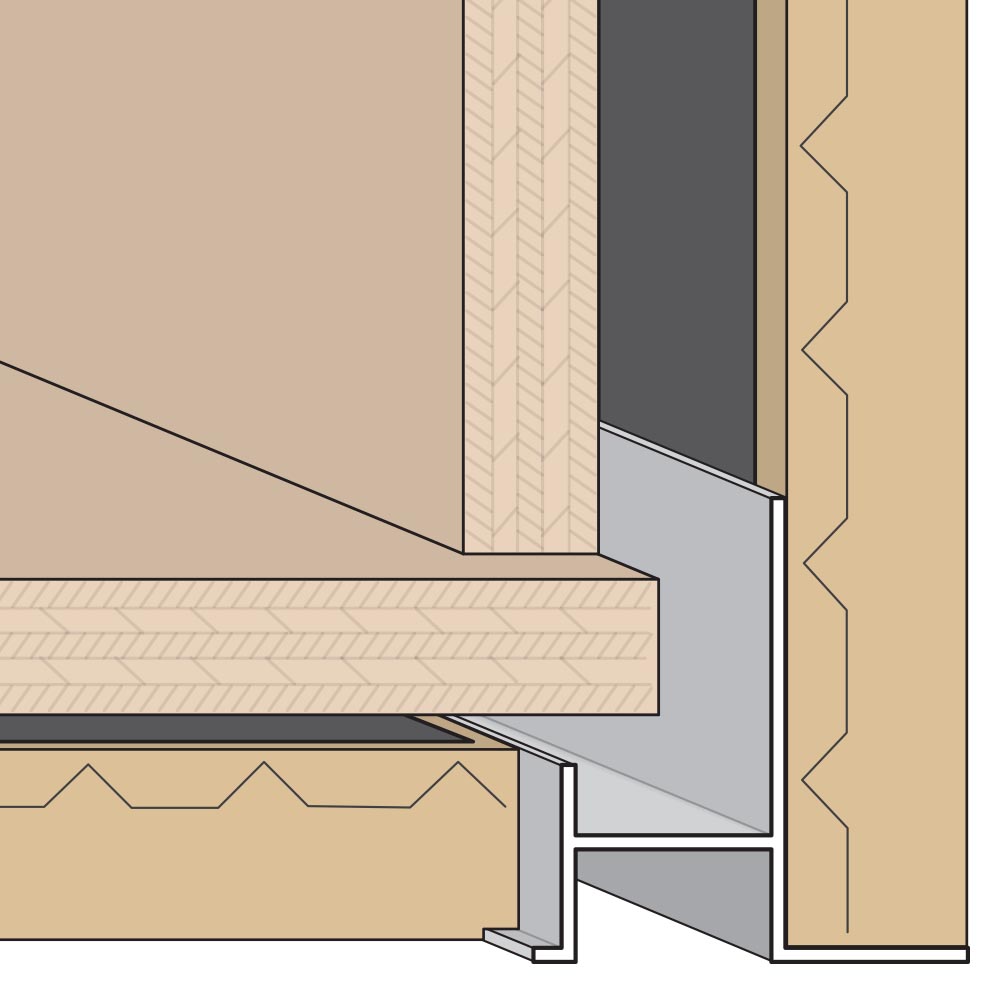

In Use

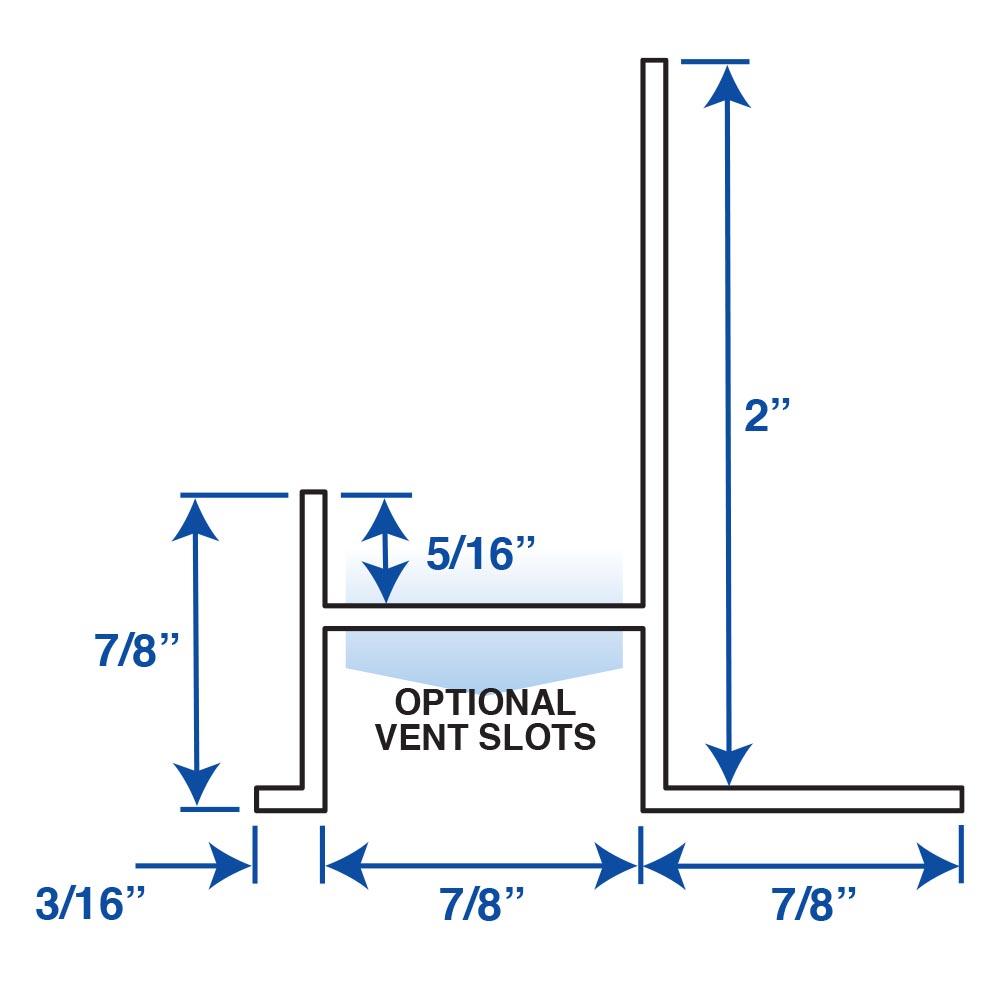

Dimensions

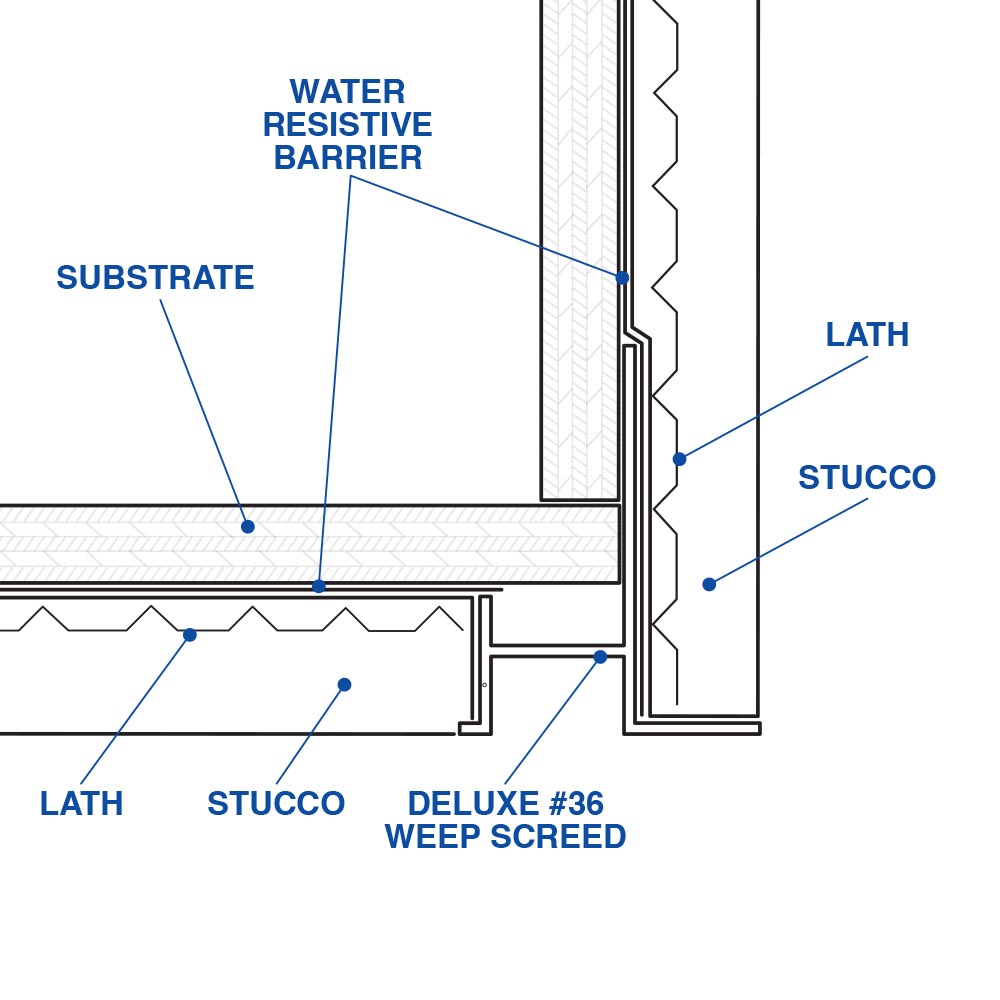

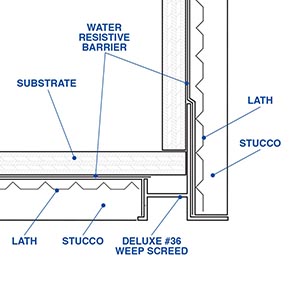

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.



Available Deluxe Drip Screed Part Numbers
DS 875M
Deluxe Drip Screed, Mill
DS 875C
Deluxe Drip Screed, Clear
DS 875CF
Deluxe Drip Screed, Chem Film
DS 875B
Deluxe Drip Screed, Black
DS 875-V-M
Deluxe Drip Screed, Vented, Mill
DS 875-V-C
Deluxe Drip Screed, Vented, Clear
DS 875-V-CF
Deluxe Drip Screed, Vented, Chem Film
DS 875-V-B
Deluxe Drip Screed, Vented, Black
