Deluxe Fascia Corner Molding
  • Available in Aluminum Alloy (6063 T-5)
The Deluxe Fascia Corner Molding is a plaster stop for fascia or soffit corner conditions that provides a reveal on the soffit portion.
Deluxe Fascia Corner Molding Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Aluminum Alloy (6063 T-5)

ASTM & CODE STANDARDS
AA-M32-C10A21, AAMA 605.2, C841, C1047, C1063, B136-84, B244-97, D4214-98, ND1730-67-TYPE B

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

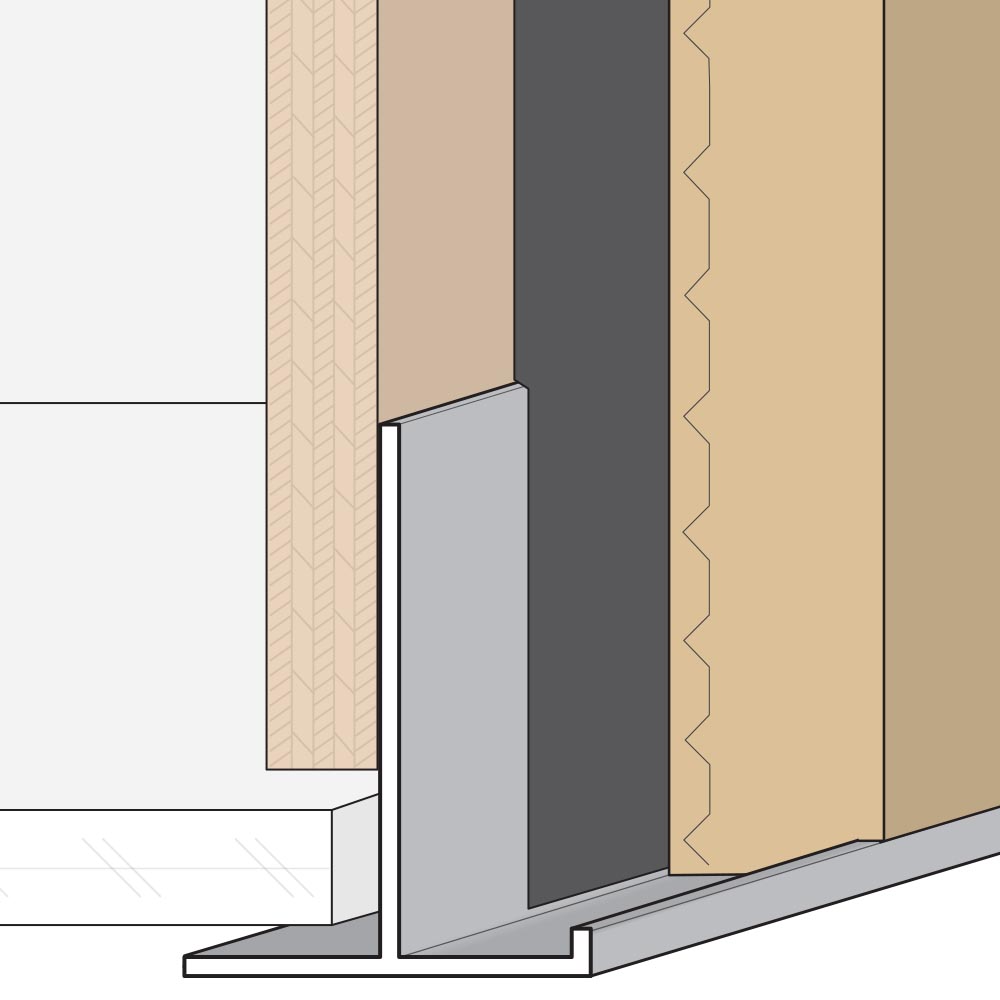

In Use

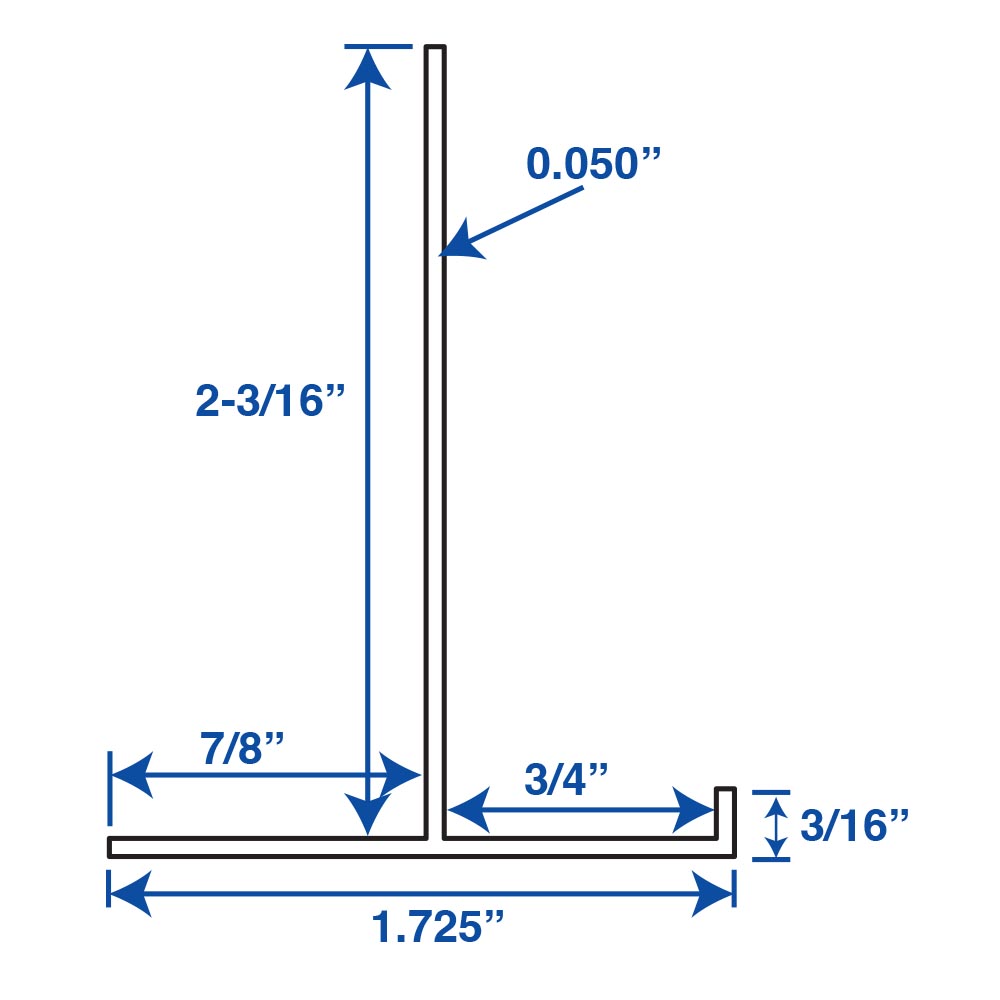

Dimensions

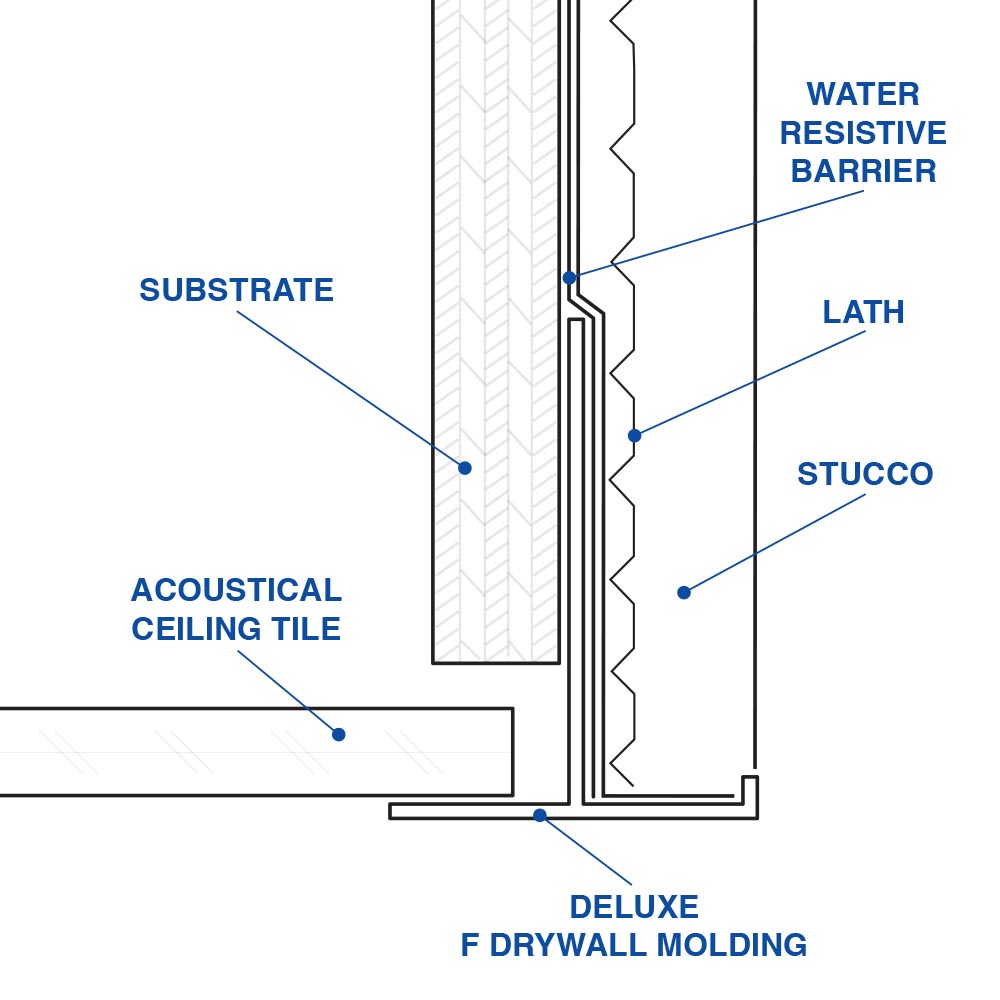

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.



Available Deluxe Fascia Corner Molding Part Numbers
FCM 75M
Deluxe Fascia Corner Molding, Mill
FCM 75C
Deluxe Fascia Corner Molding, Clear
