Deluxe Building Products > Extruded Products > Deluxe F Plaster Molding


Deluxe F Plaster Molding
  • Available in Aluminum Alloy (6063 T-5)
  • Available With 1/8‚Äù x 1‚Äù Vent Slots or Unvented
The Deluxe F Plaster Molding is a plaster stop or control screed for conventional 3-coat stucco, used at the top or base of columns, at the base to create a reveal, or the top of walls at the ceiling. It can also be used at the top of windows to permit the continuation of a horizontal reveal at the window line.
Deluxe F Plaster Molding Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Aluminum Alloy (6063 T-5)

ASTM & CODE STANDARDS
AA-M32-C10A21, AAMA 605.2, C841, C1047, C1063, B136-84, B244-97, D4214-98, ND1730-67-TYPE B

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

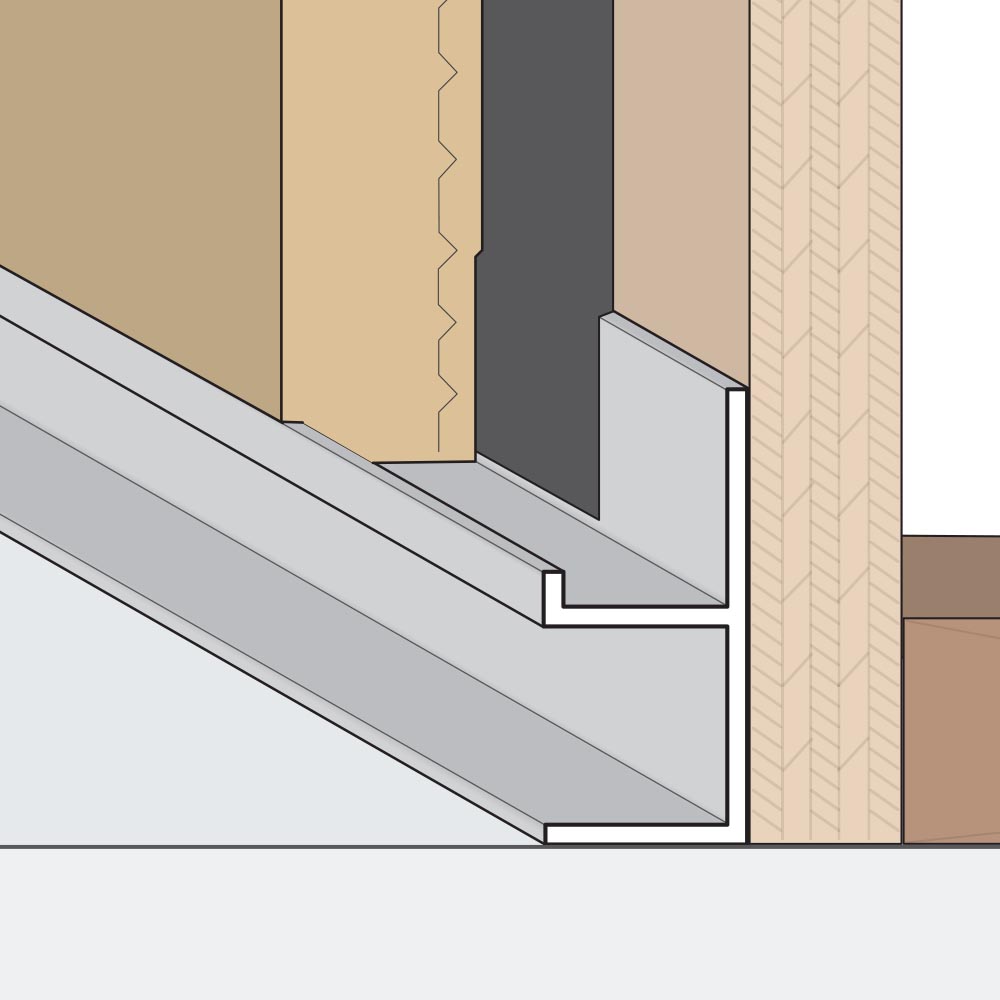

In Use

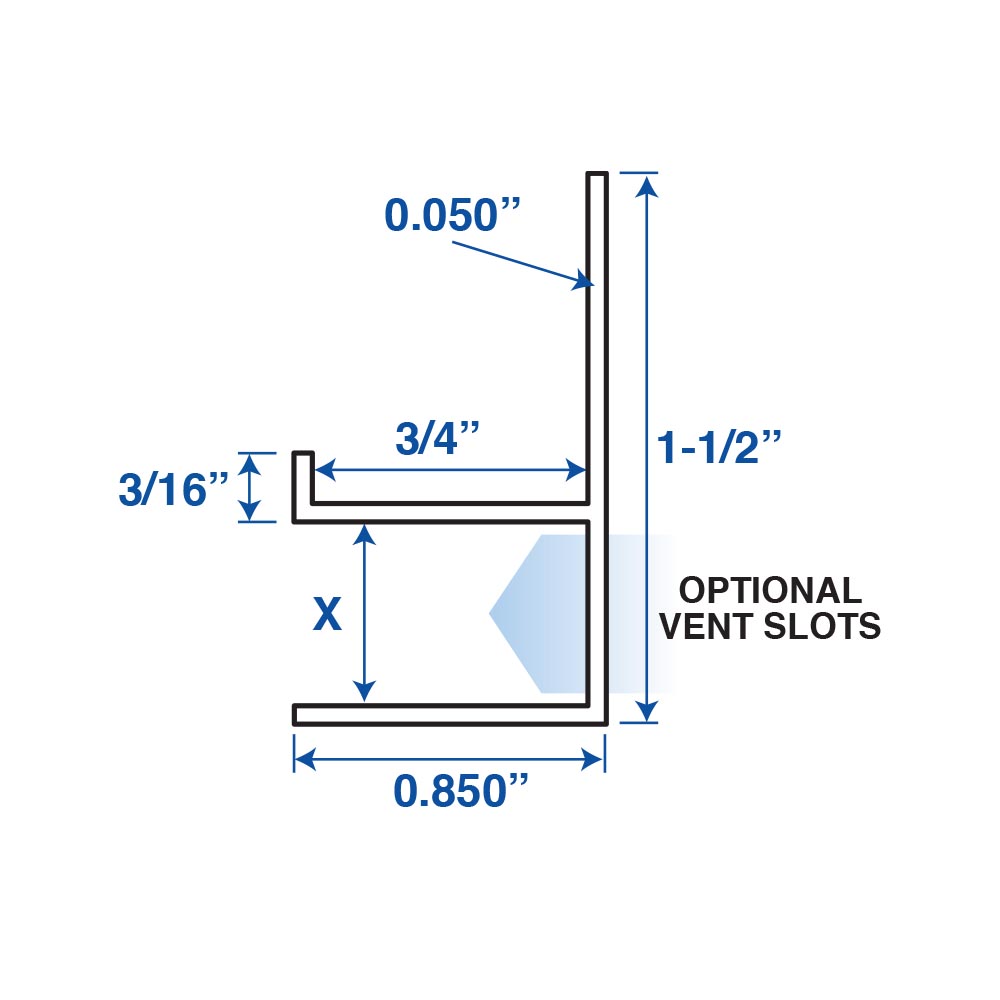

Dimensions

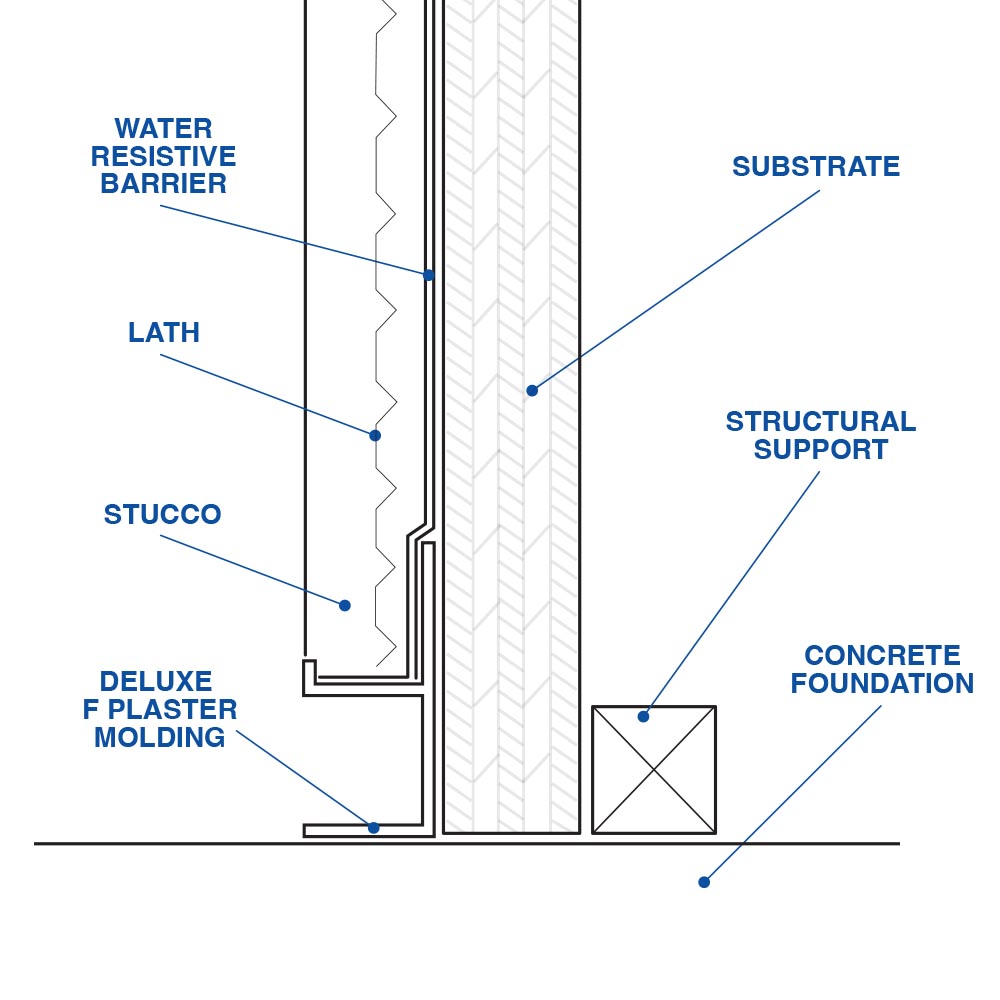

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe F Plaster Molding Sizes Options
X Size
1/2" or 3/4"

Available Deluxe F Plaster Molding Part Numbers
FPM 75-50M
Deluxe F Plaster Molding, 1/2", Mill
FPM 75-50C
Deluxe F Plaster Molding, 1/2", Clear
FPM 75-75M
Deluxe F Plaster Molding, 3/4", Mill
FPM 75-75C
Deluxe F Plaster Molding, 3/4", Clear
FPM 75-V-50M
Deluxe F Plaster Molding, 1/2", Vented, Mill
FPM 75-V-50C
Deluxe F Plaster Molding, 1/2", Vented, Clear
FPM 75-V-75M
Deluxe F Plaster Molding, 3/4", Vented, Mill
FPM 75-V-75C
Deluxe F Plaster Molding, 3/4", Vented, Clear
