Deluxe Building Products | Deluxe Plaster Channel Screed

Deluxe Building Products > Extruded Products > Deluxe Plaster Channel Screed

Deluxe Plaster Channel Screed

Available in Aluminum Alloy (6063 T-5)
Available With 1/8‚Äù x 1‚Äù Vent Slots or Unvented

The Deluxe Plaster Channel Screed is a visually pleasing reveal used as a plaster stop or control screed for conventional 3-coat stucco to separate dissimilar materials and/or to create a shadow lines on the exterior walls, ceilings and soffits.

Deluxe Plaster Channel Screed Data Sheet

Quote Request Form

MATERIALS AND FINISHES

Aluminum Alloy (6063 T-5)

ASTM & CODE STANDARDS

AA-M32-C10A21, AAMA 605.2, C841, C1047, C1063, B136-84, B244-97, D4214-98, ND1730-67-TYPE B

ADDITIONAL INFORMATION

Please note not all combinations of sizes and materials may be available in stock.

Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.

Ventilation Guide

Proper Measurement: Ground and Point-To-Point

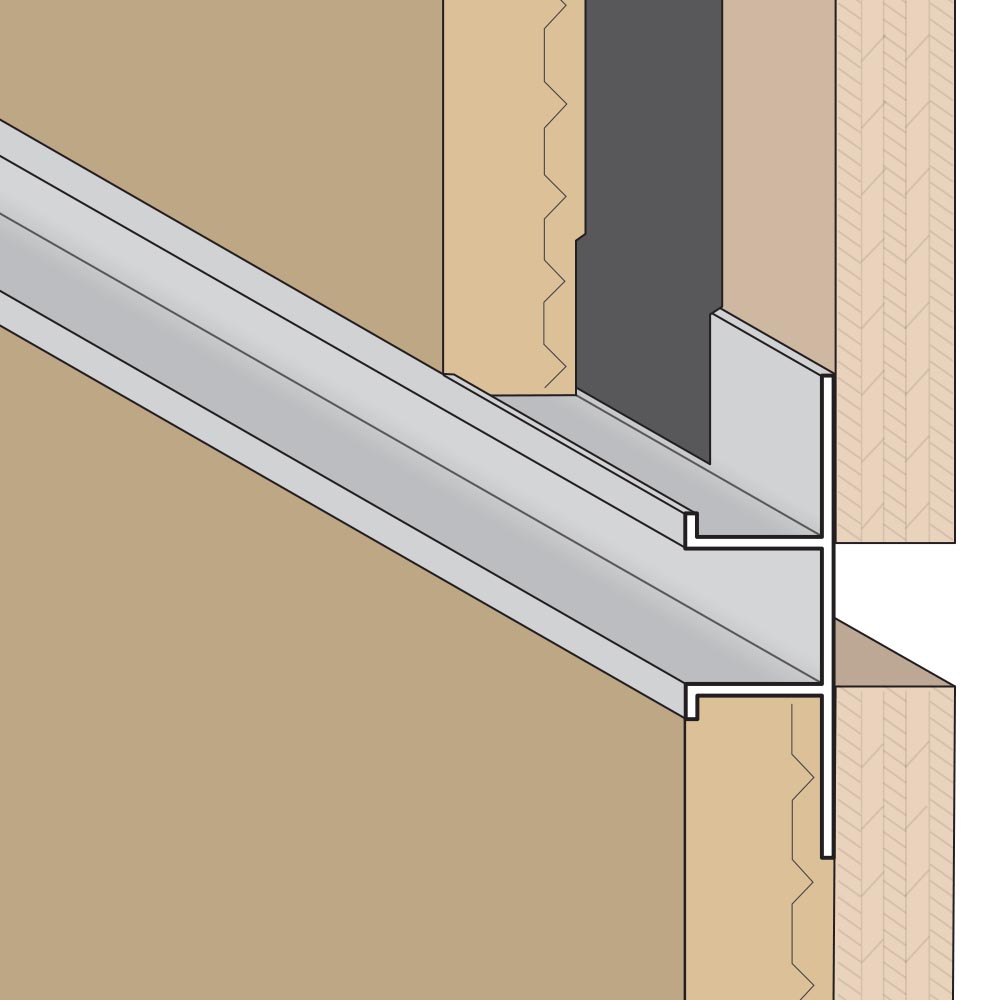

In Use

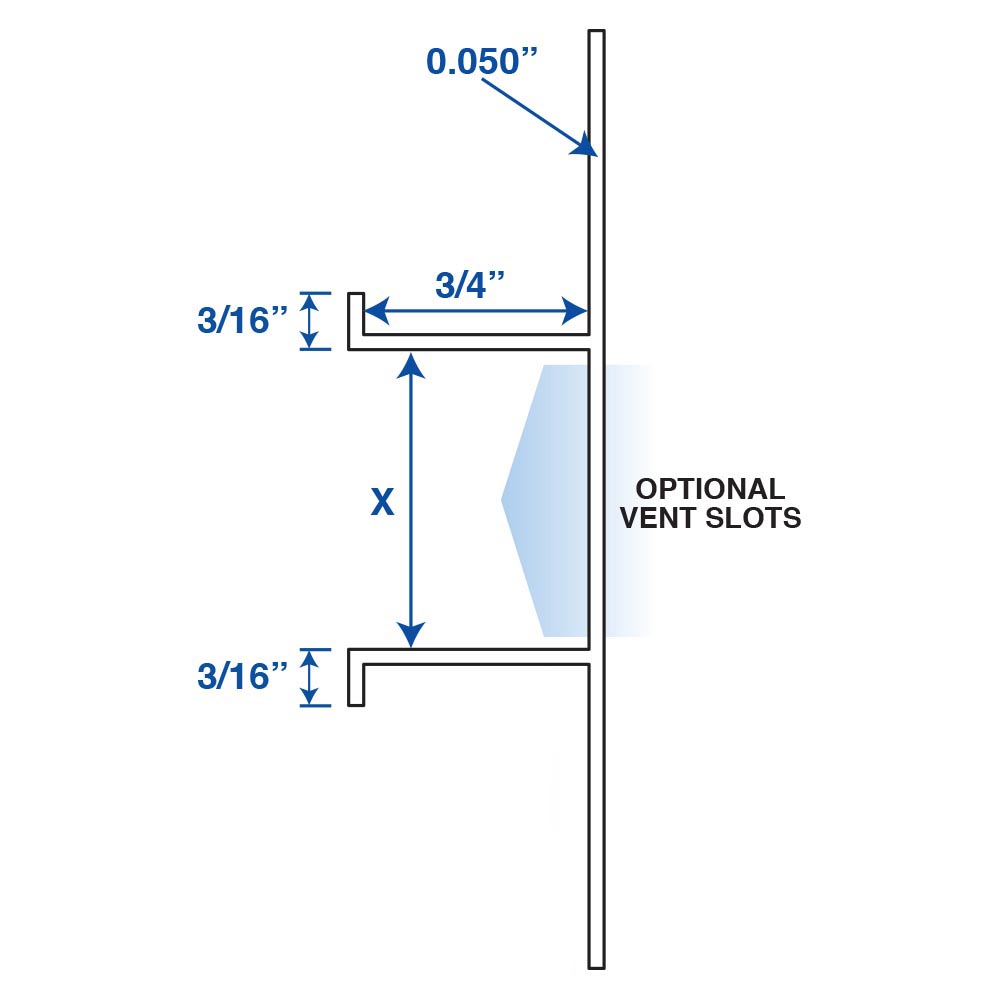

Dimensions

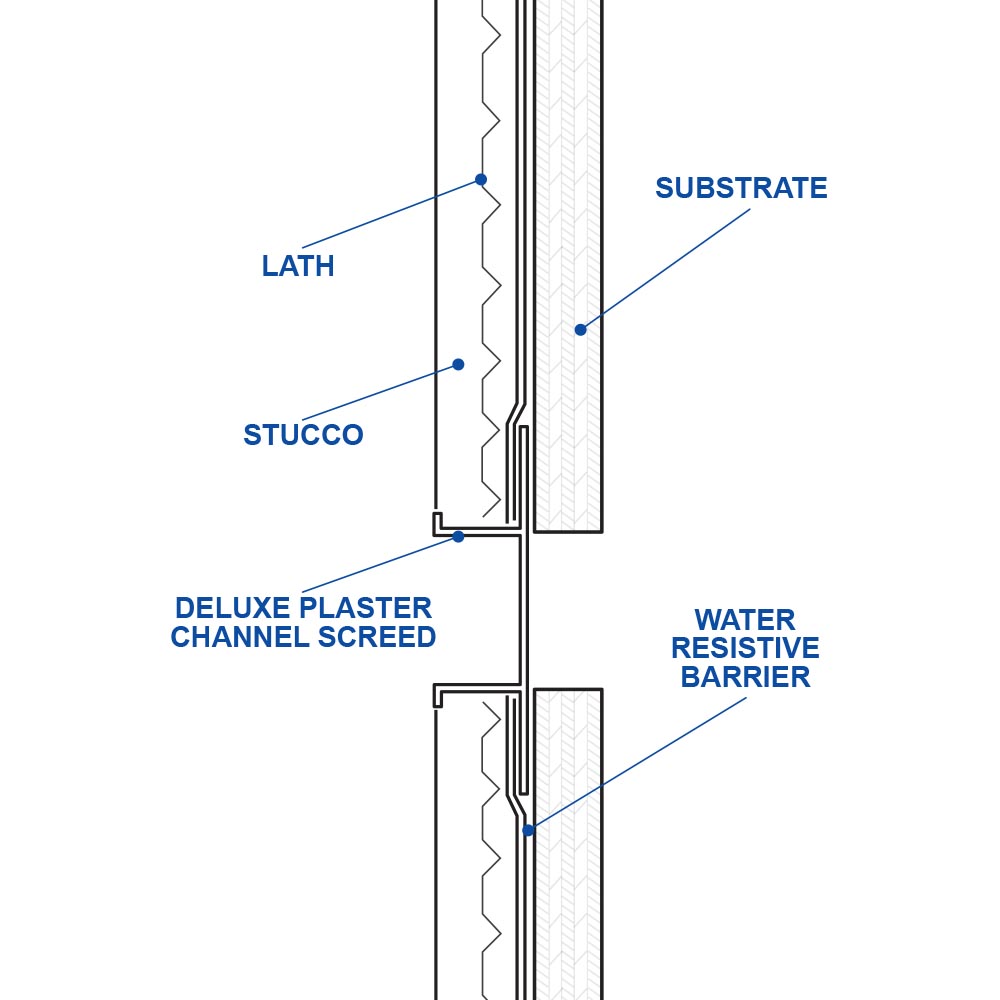

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.

Available Deluxe Plaster Channel Screed Sizes Options

X Size

1/2", 3/4", 1", 1-1/2", 2" or 3"

Available Deluxe Plaster Channel Screed Part Numbers

PCS 75-50M	Deluxe Plaster Channel Screed, 1/2", Mill
PCS 75-50C	Deluxe Plaster Channel Screed, 1/2", Clear
PCS 75-50CF	Deluxe Plaster Channel Screed, 1/2", Chem Film
PCS 75-75M	Deluxe Plaster Channel Screed, 3/4", Mill
PCS 75-75C	Deluxe Plaster Channel Screed, 3/4", Clear
PCS 75-75CF	Deluxe Plaster Channel Screed, 3/4", Chem Film
PCS 75-100M	Deluxe Plaster Channel Screed, 1", Mill
PCS 75-100C	Deluxe Plaster Channel Screed, 1", Clear
PCS 75-100CF	Deluxe Plaster Channel Screed, 1", Chem Film
PCS 75-150M	Deluxe Plaster Channel Screed, 1-1/2", Mill
PCS 75-150C	Deluxe Plaster Channel Screed, 1-1/2", Clear
PCS 75-200M	Deluxe Plaster Channel Screed, 2", Mill
PCS 75-200C	Deluxe Plaster Channel Screed, 2", Clear
PCS 75-200CF	Deluxe Plaster Channel Screed, 2", Chem Film
PCS 75-300M	Deluxe Plaster Channel Screed, 3", Mill
PCS 75-300C	Deluxe Plaster Channel Screed, 3", Clear
PCS 75-V-50M	Deluxe Plaster Channel Screed, 1/2", Vented, Vented, Mill
PCS 75-V-50C	Deluxe Plaster Channel Screed, 1/2", Vented, Clear
PCS 75-V-50CF	Deluxe Plaster Channel Screed, 1/2", Vented, Chem Film
PCS 75-V-75M	Deluxe Plaster Channel Screed, 3/4", Vented, Mill
PCS 75-V-75C	Deluxe Plaster Channel Screed, 3/4", Vented, Clear
PCS 75-V-75CF	Deluxe Plaster Channel Screed, 3/4", Vented, Chem Film
PCS 75-V-100M	Deluxe Plaster Channel Screed, 1", Vented, Mill
PCS 75-V-100C	Deluxe Plaster Channel Screed, 1", Vented, Clear
PCS 75-V-100CF	Deluxe Plaster Channel Screed, 1", Vented, Chem Film
PCS 75-V-150M	Deluxe Plaster Channel Screed, 1-1/2", Vented, Mill
PCS 75-V-150C	Deluxe Plaster Channel Screed, 1-1/2", Vented, Clear
PCS 75-V-200M	Deluxe Plaster Channel Screed, 2", Vented, Mill
PCS 75-V-200C	Deluxe Plaster Channel Screed, 2", Vented, Clear
PCS 75-V-200CF	Deluxe Plaster Channel Screed, 2", Vented, Chem Film
PCS 75-V-300M	Deluxe Plaster Channel Screed, 3", Vented, Mill
PCS 75-V-300C	Deluxe Plaster Channel Screed, 3", Vented, Clear
