Deluxe Removable Balcony Soffit Vent
  • Available in Aluminum Alloy (6063 T-5)
  • Available With 1/8‚Äù x 1‚Äù Vent Slots or Unvented
  • For Retrofit Or New Construction
The Deluxe Removable Balcony Soffit Vent is a removable soffit vent that allows quick access to the balcony soffit space for inspection at the balcony's wall transition. It also allows for air movement and ventilation. Complies with the City of Berkley R1 and R2 Zoning Districts for Exterior Elevated Elements. The soffit vent is easily installed and removed. 1/2" wide return legs are provided that will cover the rough opening.
FAQs Berkely Balcony Code
Deluxe Removable Balcony Soffit Vent Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Aluminum Alloy (6063 T-5)

ASTM & CODE STANDARDS
AA-M32-C10A21, AAMA 605.2, C841, C1047, C1063, B136-84, B244-97, D4214-98, ND1730-67-TYPE B

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

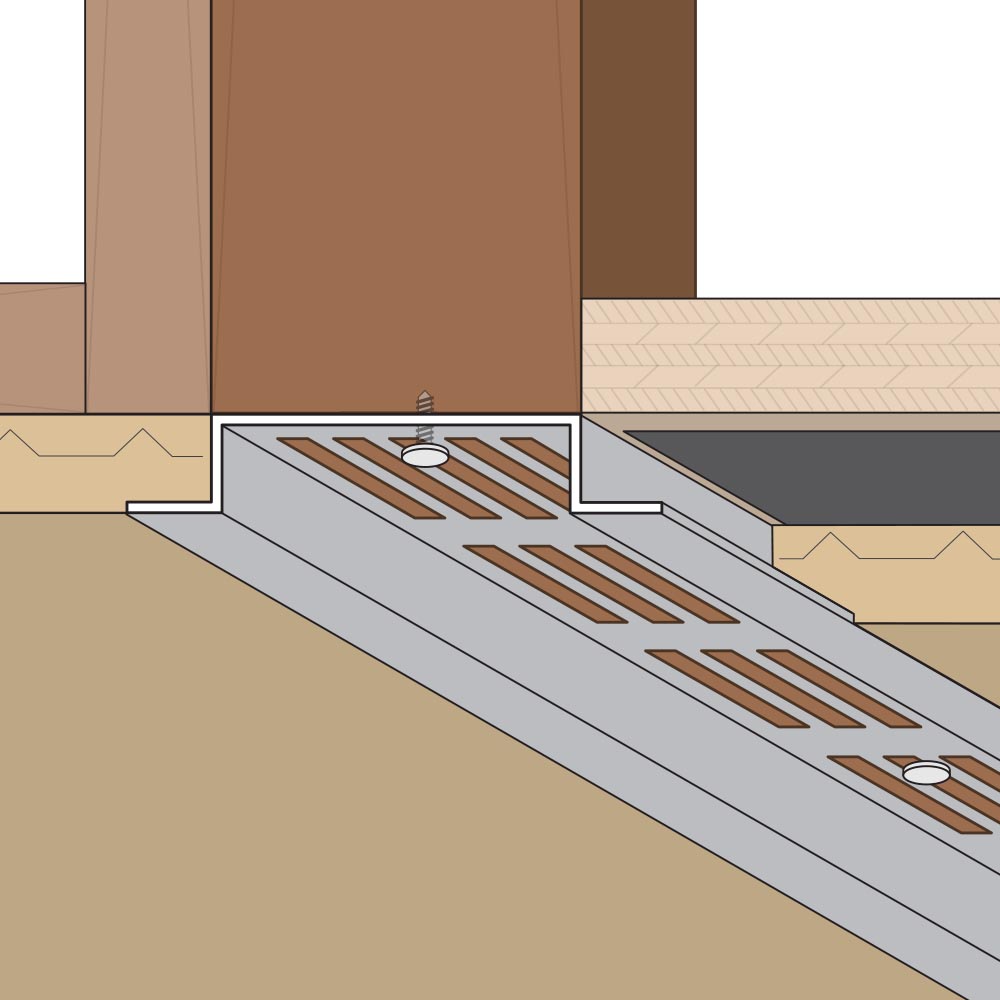

In Use

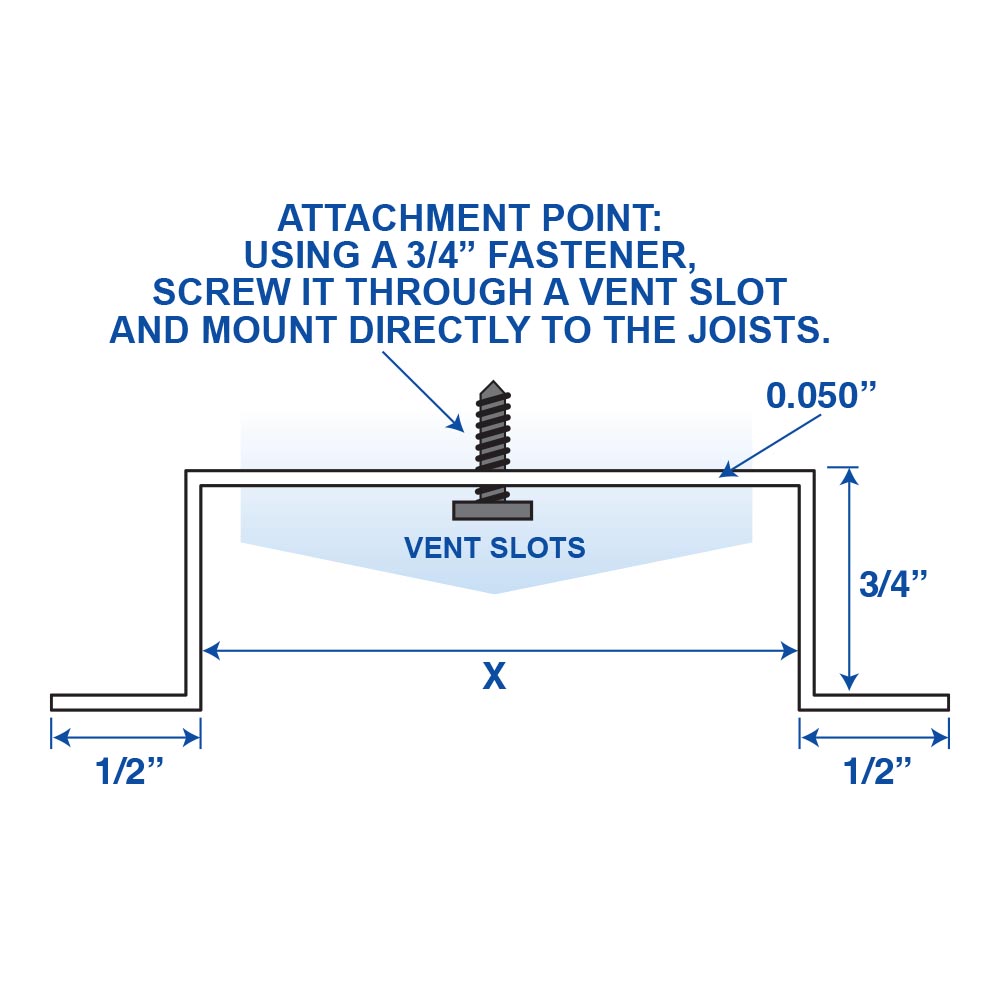

Dimensions

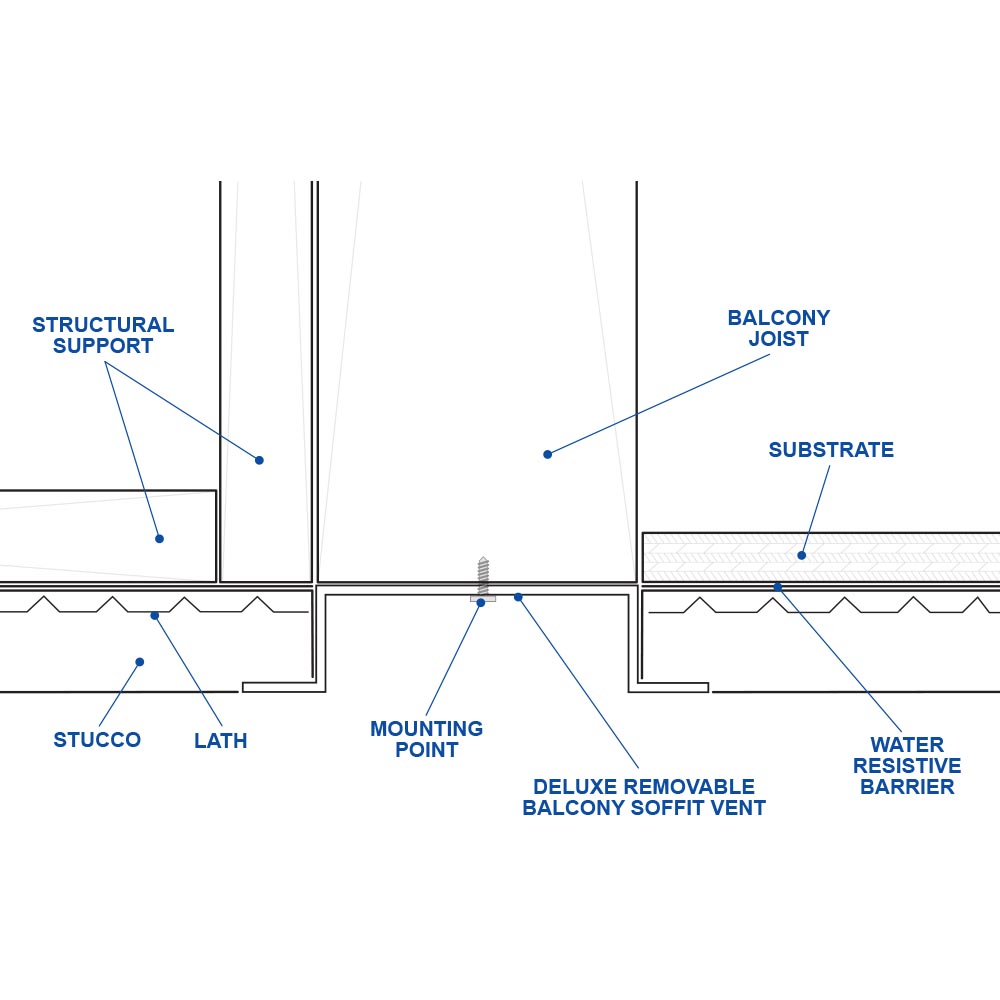

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Removable Balcony Soffit Vent Sizes Options
X Size
2", 3" or 4"

Available Deluxe Removable Balcony Soffit Vent Part Numbers
RBSV 75-200M
Deluxe Removable Balcony Soffit Vent, 2", Mill
RBSV 75-200C
Deluxe Removable Balcony Soffit Vent, 2", Clear
RBSV 75-300M
Deluxe Removable Balcony Soffit Vent, 3", Mill
RBSV 75-300C
Deluxe Removable Balcony Soffit Vent, 3", Clear
RBSV 75-400M
Deluxe Removable Balcony Soffit Vent, 4", Mill
RBSV 75-400C
Deluxe Removable Balcony Soffit Vent, 4", Clear
RBSV 75-V-200M
Deluxe Removable Balcony Soffit Vent, 2", Vented, Mill
RBSV 75-V-200C
Deluxe Removable Balcony Soffit Vent, 2", Vented, Clear
RBSV 75-V-300M
Deluxe Removable Balcony Soffit Vent, 3", Vented, Mill
RBSV 75-V-300C
Deluxe Removable Balcony Soffit Vent, 3", Vented, Clear
RBSV 75-V-400M
Deluxe Removable Balcony Soffit Vent, 4", Vented, Mill
RBSV 75-V-400C
Deluxe Removable Balcony Soffit Vent, 4", Vented, Clear
