Deluxe X Plaster Molding
  • Available in Aluminum Alloy (6063 T-5)
The Deluxe X Plaster Molding creates a visually pleasing inverted corner reveal detail for conventional 3-coat stucco at fascia or soffit conditions and around recessed entryways and doors. Can also be used to trim off the tops of pony walls and used as a drip edge on a fascia or soffit condition.
Deluxe X Plaster Molding Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Aluminum Alloy (6063 T-5)

ASTM & CODE STANDARDS
AA-M32-C10A21, AAMA 605.2, C841, C1047, C1063, B136-84, B244-97, D4214-98, ND1730-67-TYPE B

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

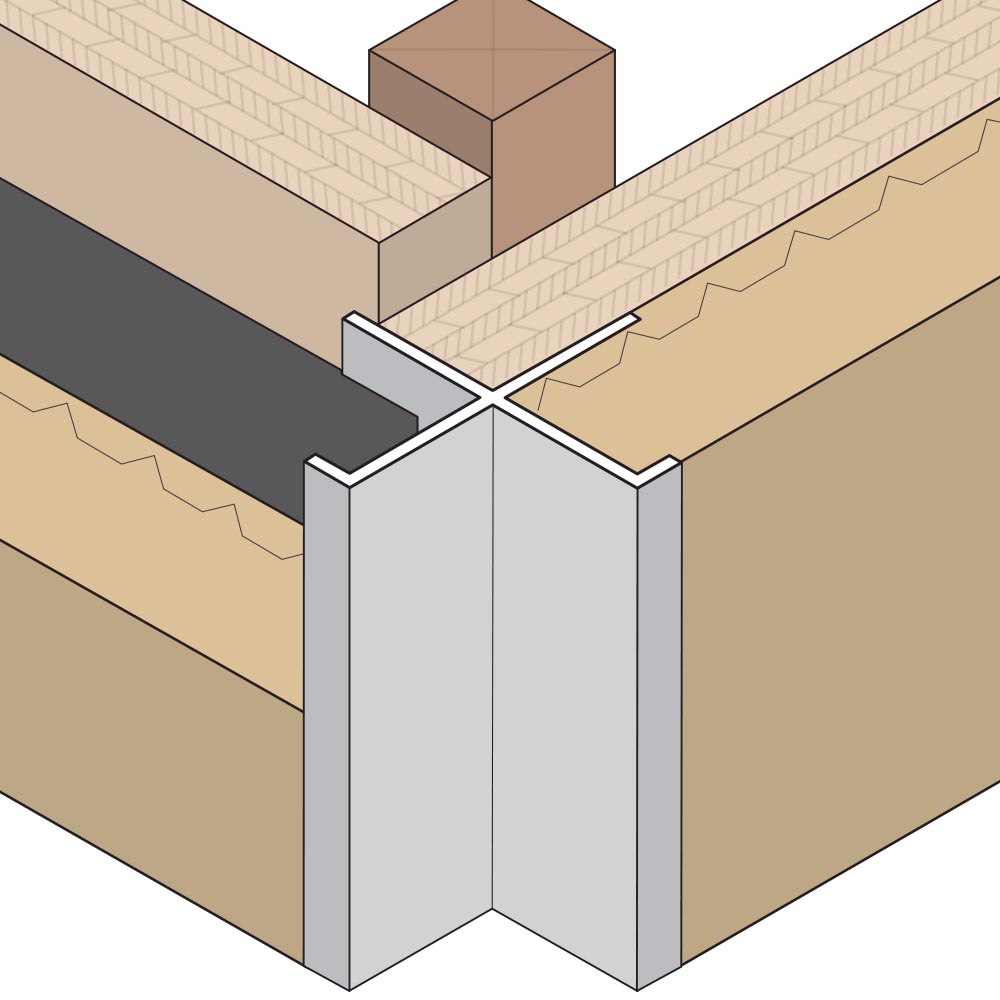

In Use

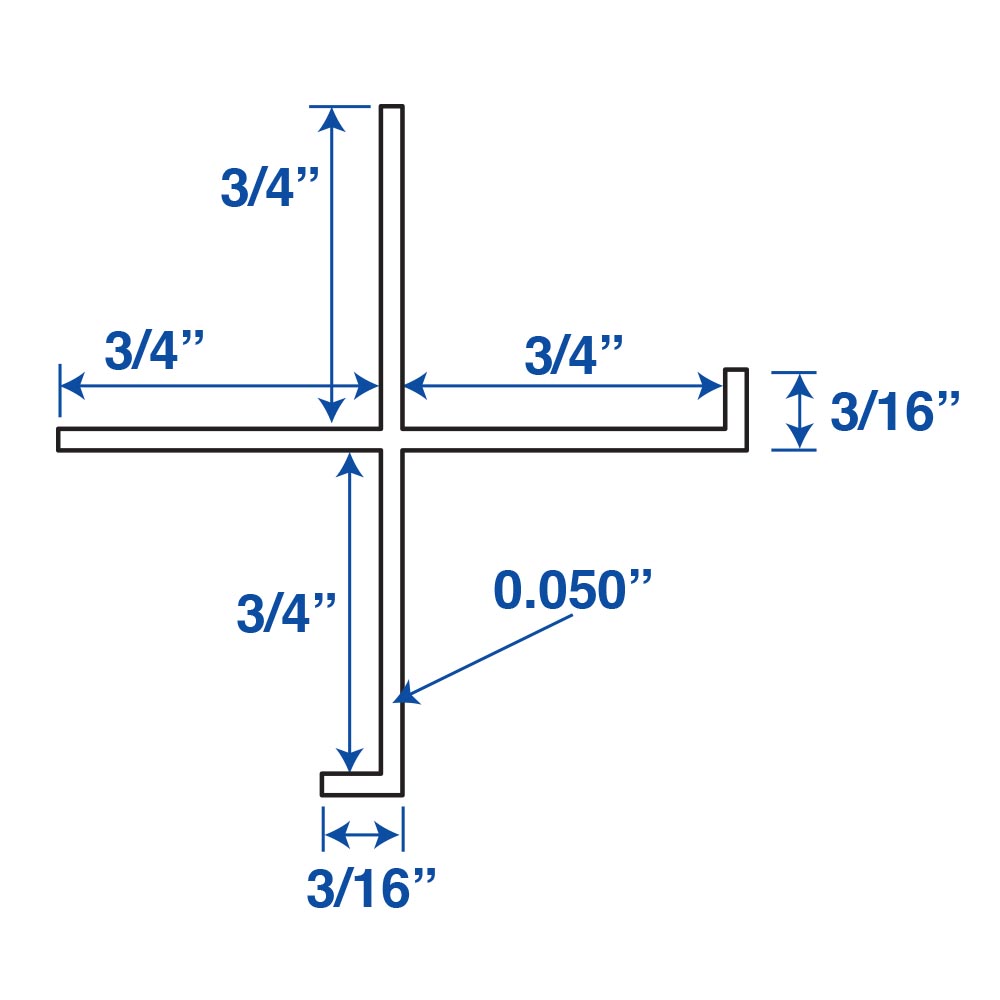

Dimensions

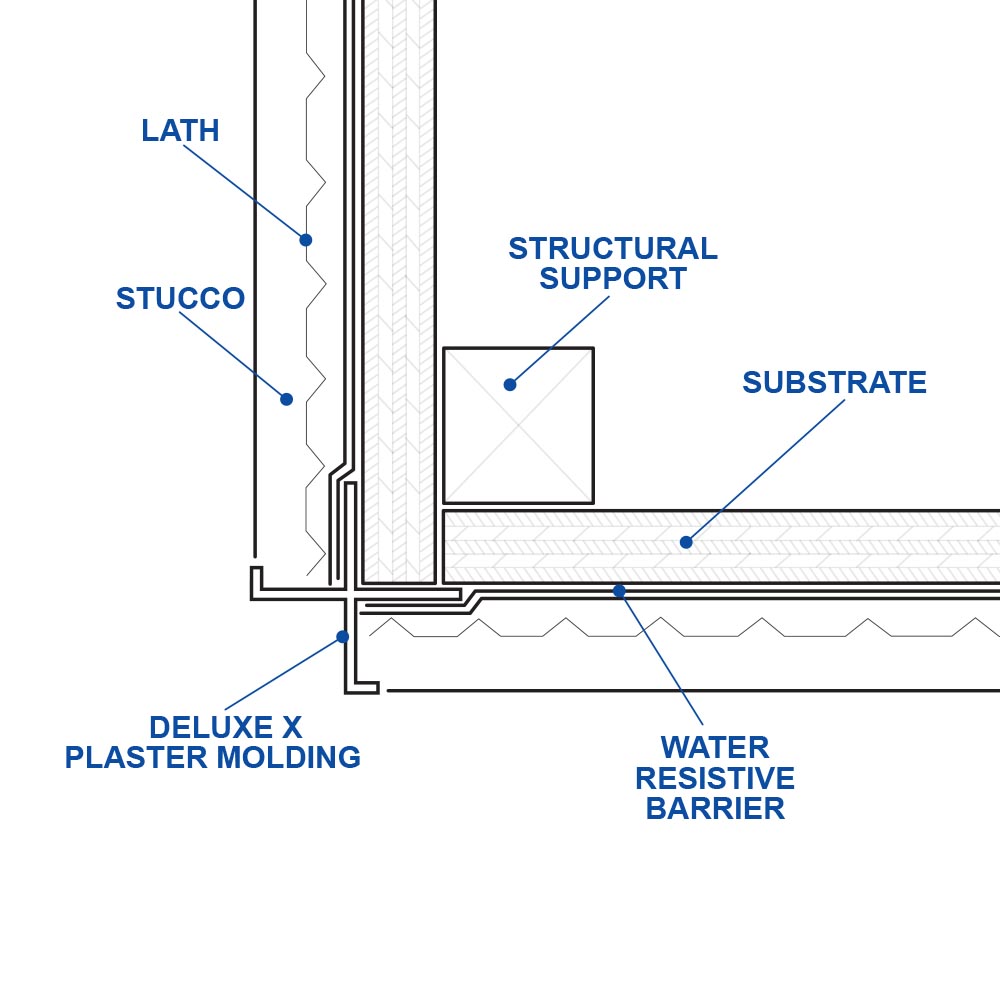

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.



Available Deluxe X Plaster Molding Part Numbers
XPM 75-75M
Deluxe X Plaster Molding, Mill
XPM 75-75C
Deluxe X Plaster Molding, Clear
