Deluxe RC-1 HD
  • Ideal For Sound Transfer Reduction
  • Available in Galvanized Steel
  • Custom Sizes Available!
The Deluxe RC-1 HD is a resilient channels are manufactured with a wide 1-1/2" top flange and a 1/2" nailing flange, giving the channel 1/2" furring height from the face of the wall stud. RC1-HD is produced from galvanized steel.

Sound Transmission Loss Test Report (#TL21-339)

NOTE:
1. Uncoated Steel Thickness. Thickness is for carbon sheet steel.
2. Minimum Thickness represents 95% of the design thickness and is the minimum acceptable thickness delivered to the job site, based on the AISI.
Deluxe RC-1 HD Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Galvanized Steel
Thickness (mil): 22
Design Thickness (in)1: 0.023 (059 mm)
Minimum Thickness (in)1 2: 0.022 (0.56 mm)

ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G40 (G60 upon request) zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69.

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Proper Measurement: Ground and Point-To-Point

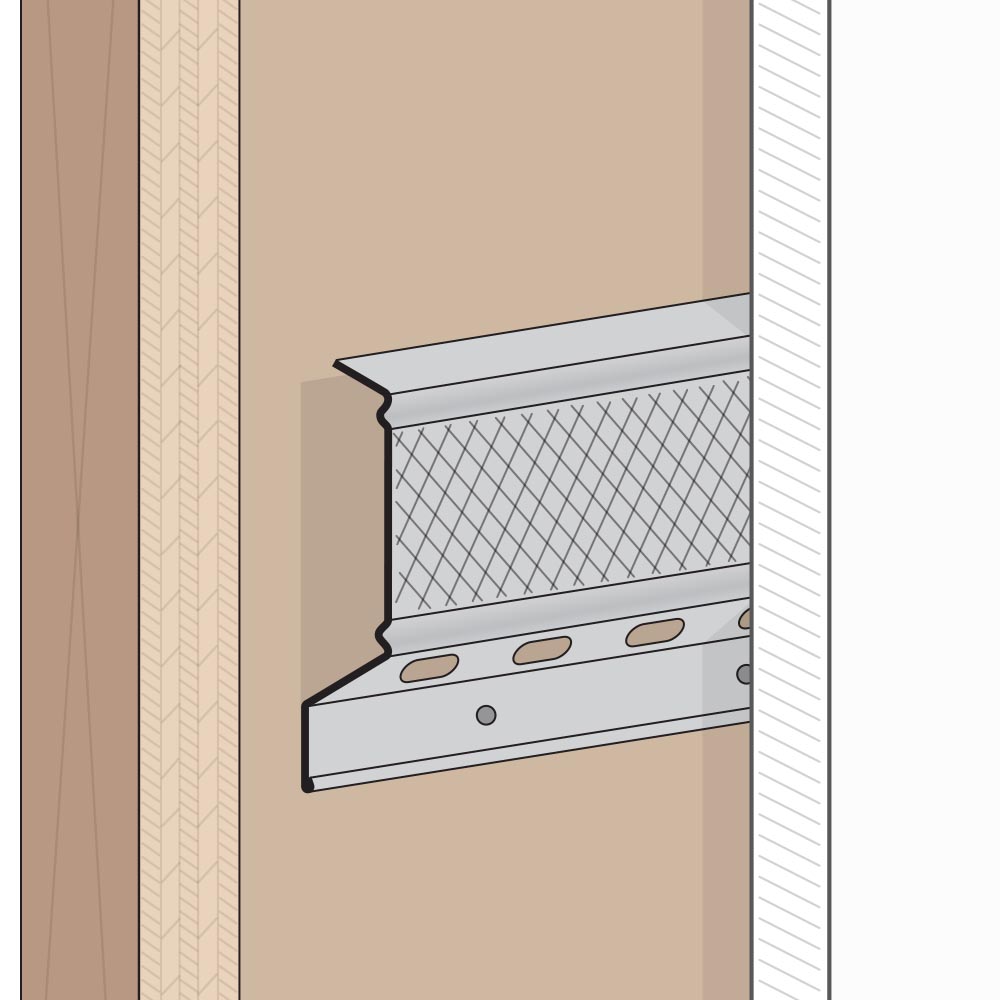

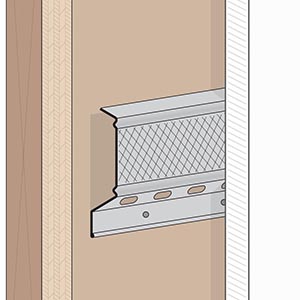

In Use

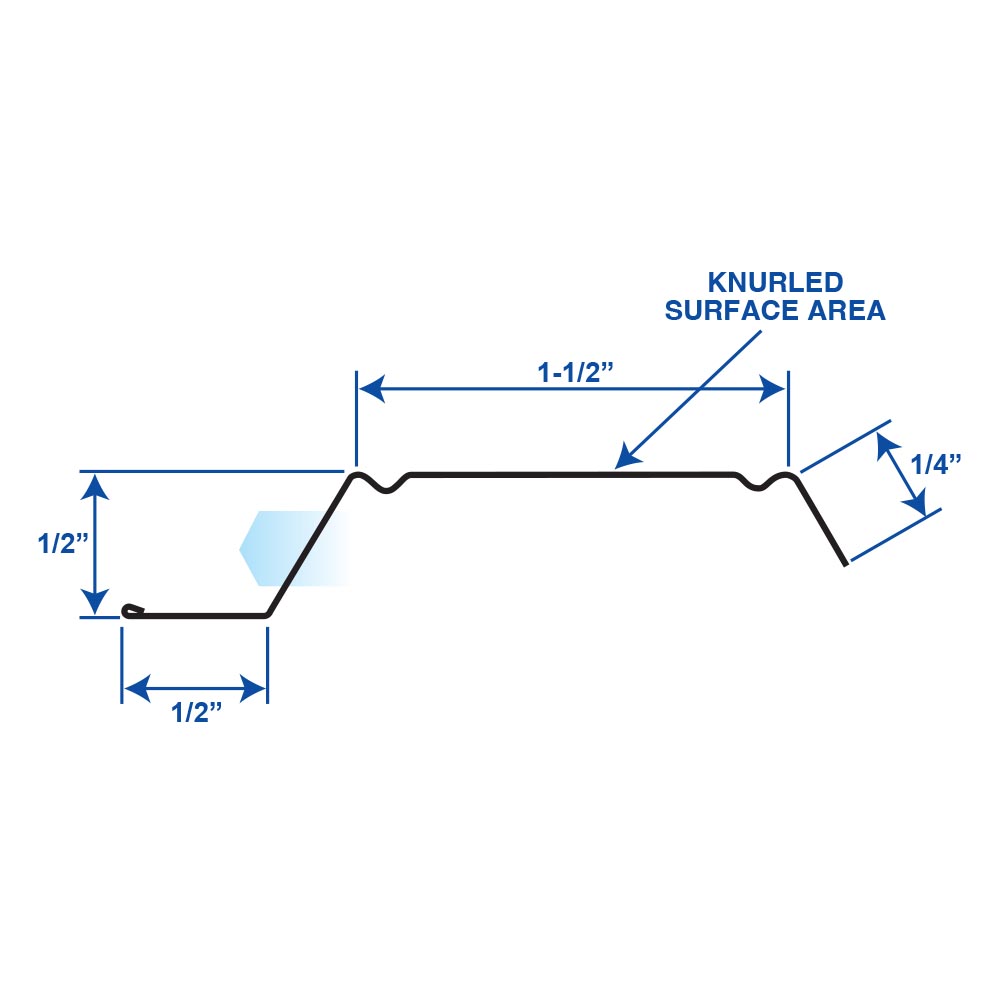

Dimensions

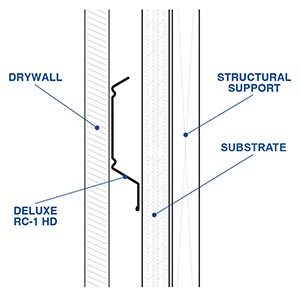

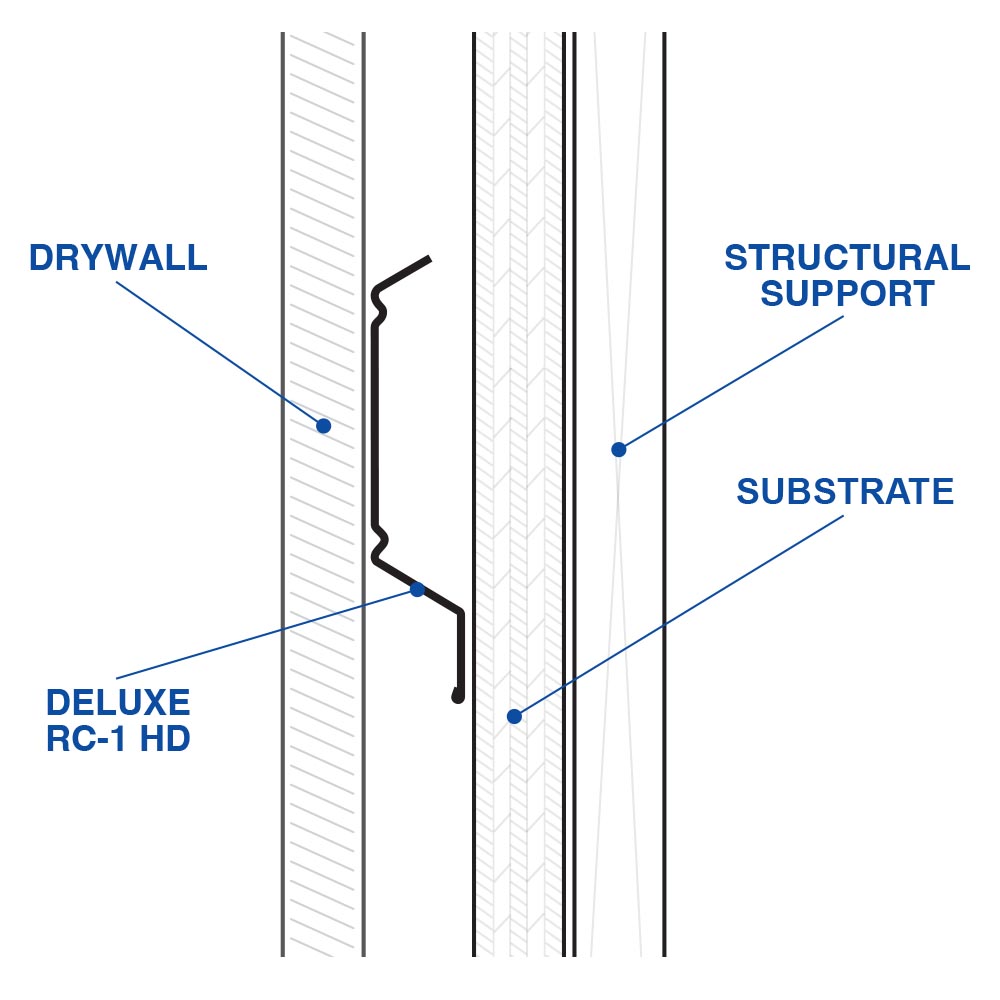

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.
