Deluxe Slotted Drift Track
  • Available in Galvanized Steel
The Deluxe Slotted Drift Track is a deflection track with slots in the legs to allow for vertical deflection and slots in the web to allow for horizontal drift when required by seismic designs. Giving you head of wall vertical deflection and the added horizontal drift movement.
Quote Request Form

MATERIALS AND FINISHES
Galvanized Steel

ASTM & CODE STANDARDS
A1003, A653, A924, C645, C754, C955

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Proper Measurement: Ground and Point-To-Point

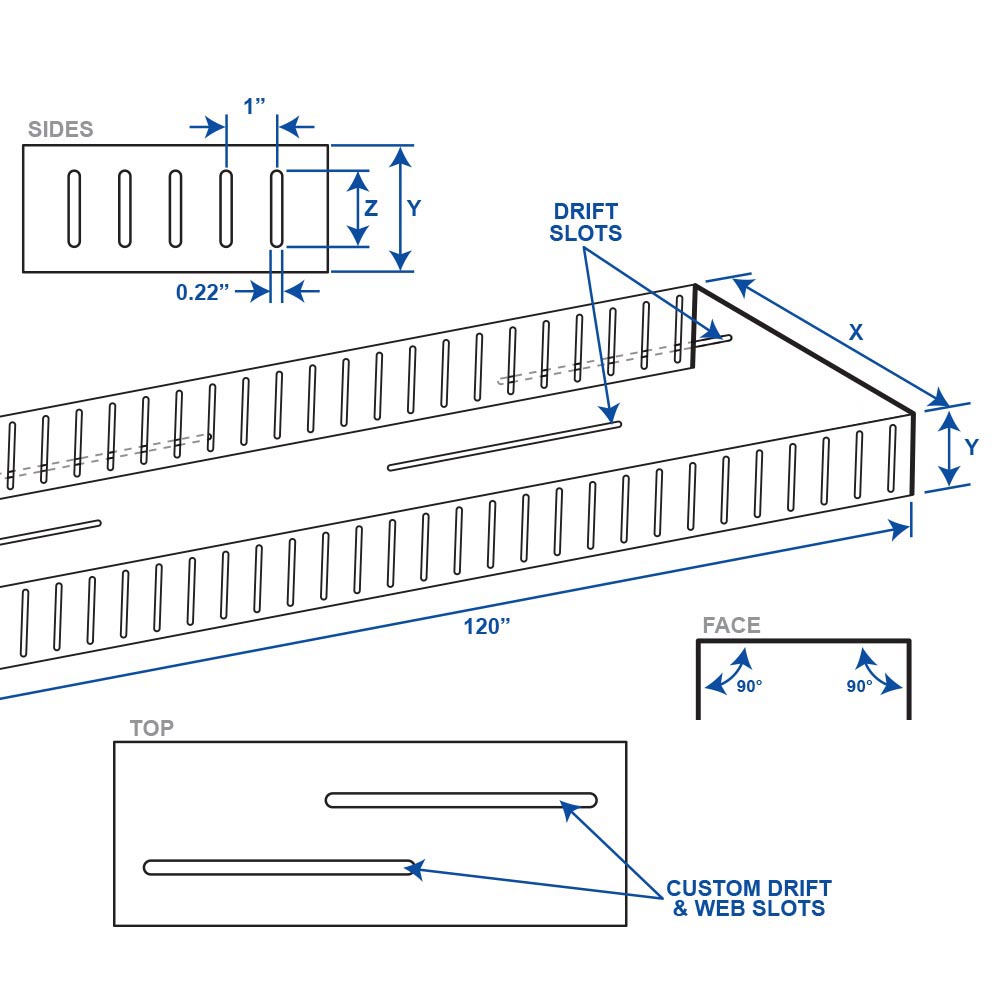

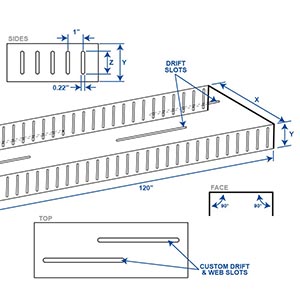

Dimensions

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Slotted Drift Track Sizes Options
X Sizes
User Defined
Y Sizes
User Defined
Length
120"
