Deluxe Building Products > Framing Products > Deluxe Z Trim


Deluxe Z Trim
  • Available in Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel
The Deluxe Z Trim is used to properly seal and join two pieces of plywood and other conditions where a "Z" shape is required
Quote Request Form

MATERIALS AND FINISHES
Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel

ASTM & CODE STANDARDS
A1003, A653, A924, C645, C754, C955

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Proper Measurement: Ground and Point-To-Point

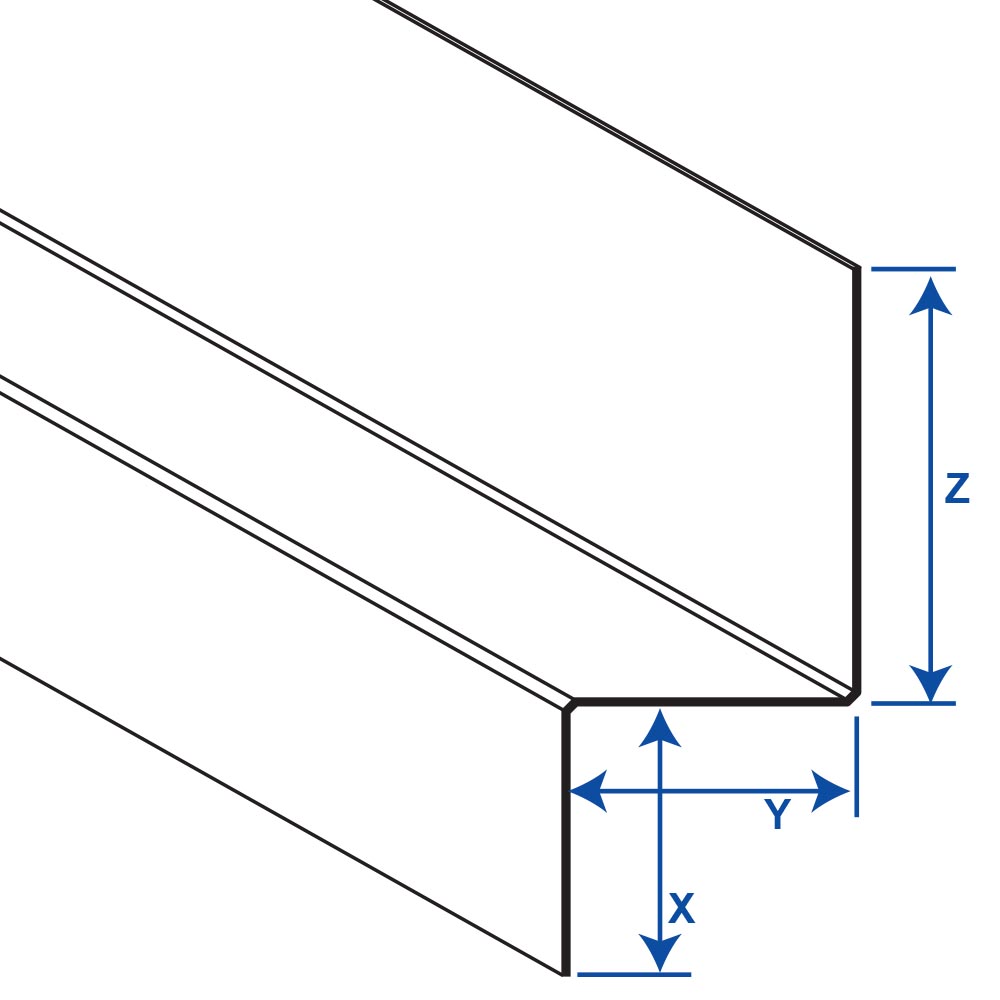

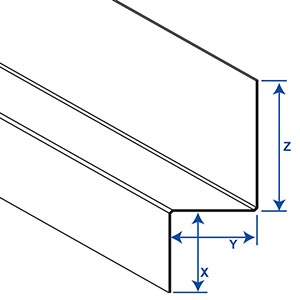

Dimensions

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Z Trim Sizes Options
X Sizes
1/4", 1/2", 1", 1-1/2" or 2"
Y Sizes
1/2", 5/8", 3/4", 1" or 2"
Z Sizes
3/4", 1", 1-1/2" or 2"
Length
120"
