Deluxe Attic Wing Fascia
  • Available Unvented or With Either 1/8" or 1/4" Vent Holes
  • Available in Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel
The Deluxe Attic Wing Fascia provides a ventilated finish at the juncture of a soffit and fascia providing attachment by a wing in attic. Available non-vented for use as a decorative reveal.
Deluxe Attic Wing Fascia Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel

ASTM & CODE STANDARDS
653-CS, A1018, A262, A36, A513, A653, A792, A924, B 370-12, B-209, B-209, B6/B69, C1047, C1063, C841, ML/SFA 920

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

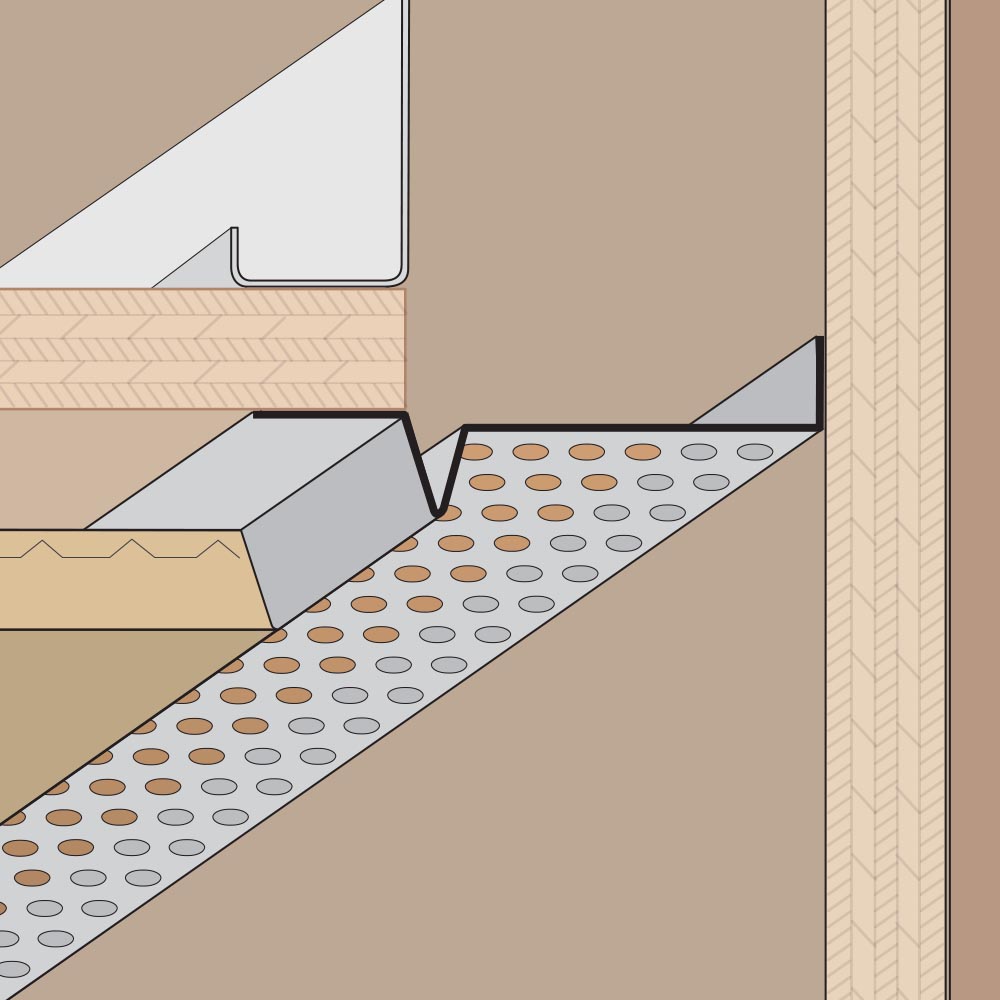

In Use

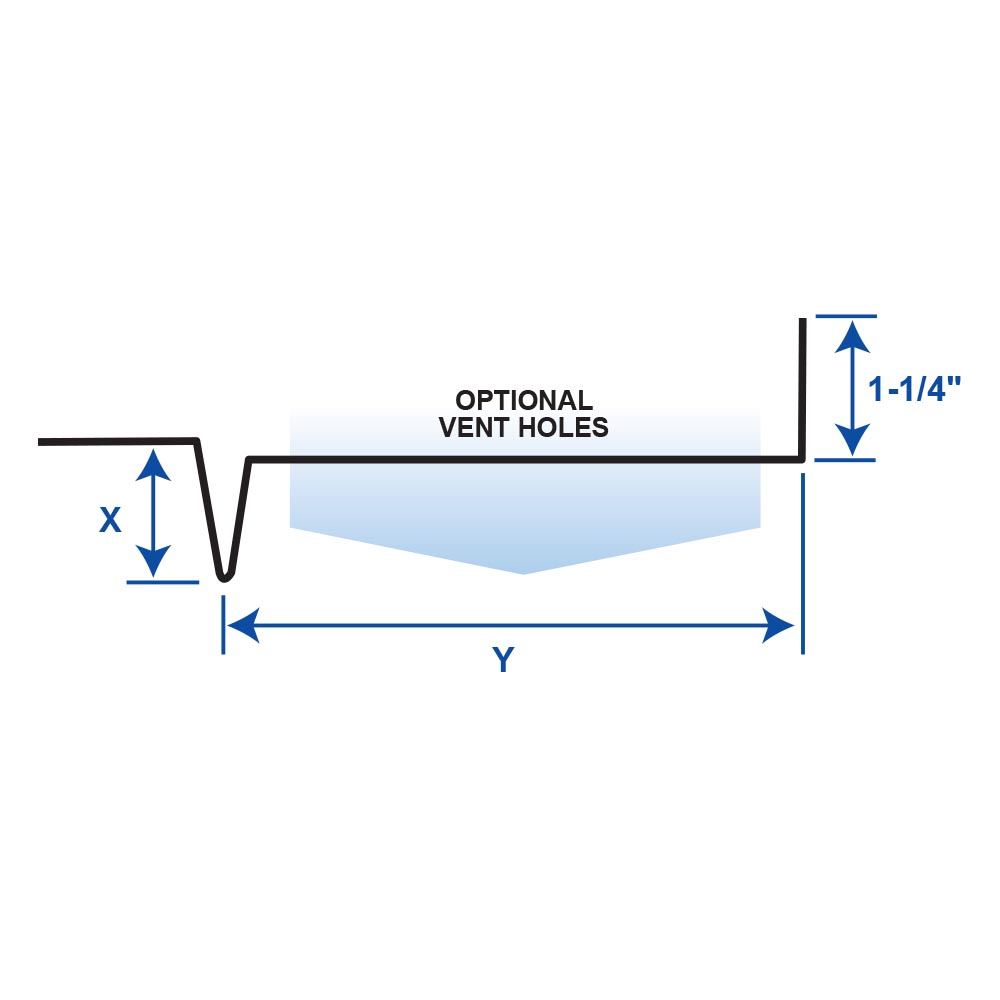

Dimensions

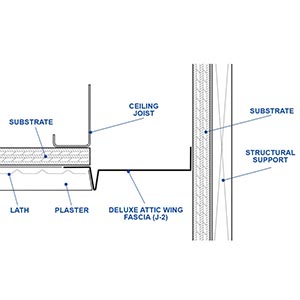

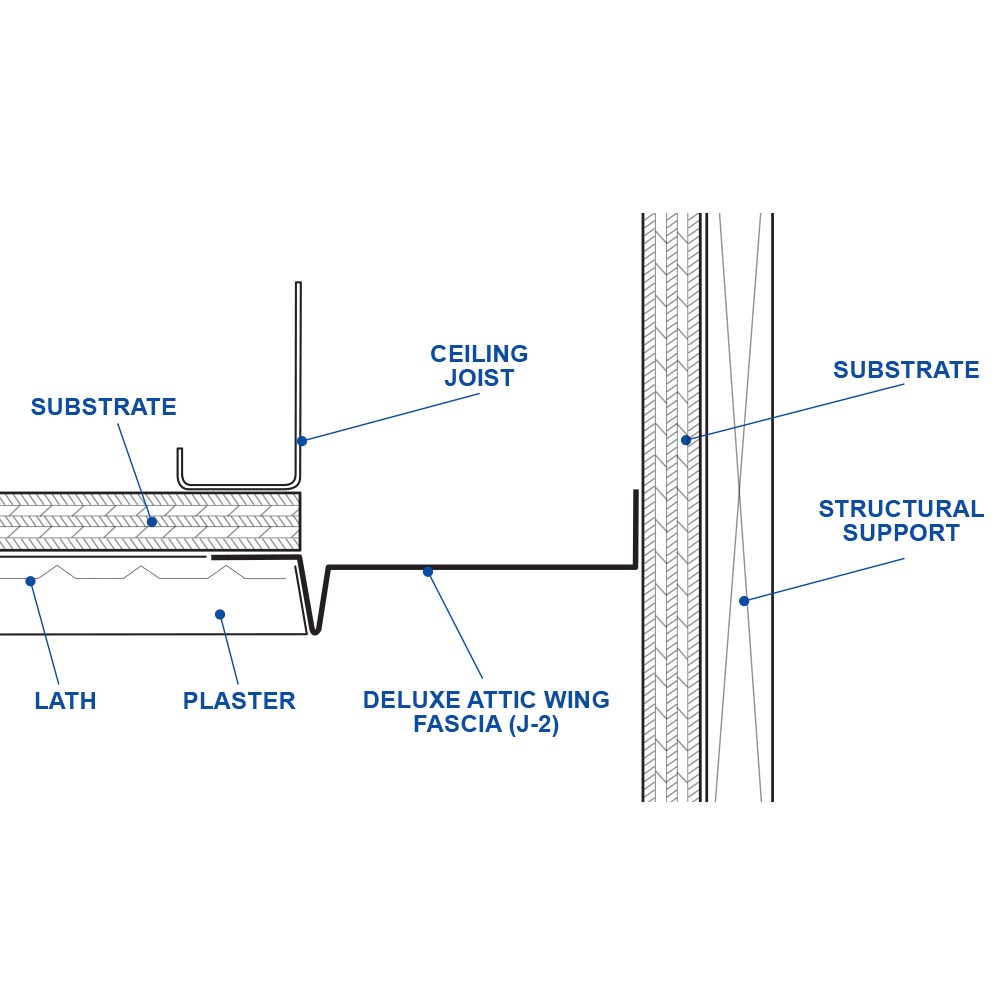

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Attic Wing Fascia Sizes Options
X Sizes
3/8", 1/2", 5/8", 3/4", 7/8" or 1"
Y Sizes
3/4", 1", 1 1/2", 2", 2 1/2", 3", 3 1/2", 4", 4 1/2" or 5",
Length
120"
