Deluxe Building Products > Lath & Plaster Products > Deluxe #30 Corner Expansion Joint


Deluxe #30 Corner Expansion Joint
  • Available in Galvanized Steel
The Deluxe #30 Corner Expansion Joint is a 90° for installation in the inside corners. The expanded flanges absorbs movement due and contraction of plastered walls. The expanded flanges also proper keying and easy application.
Deluxe #30 Corner Expansion Joint Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Galvanized Steel

ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G60 (G90 upon request) zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69.

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

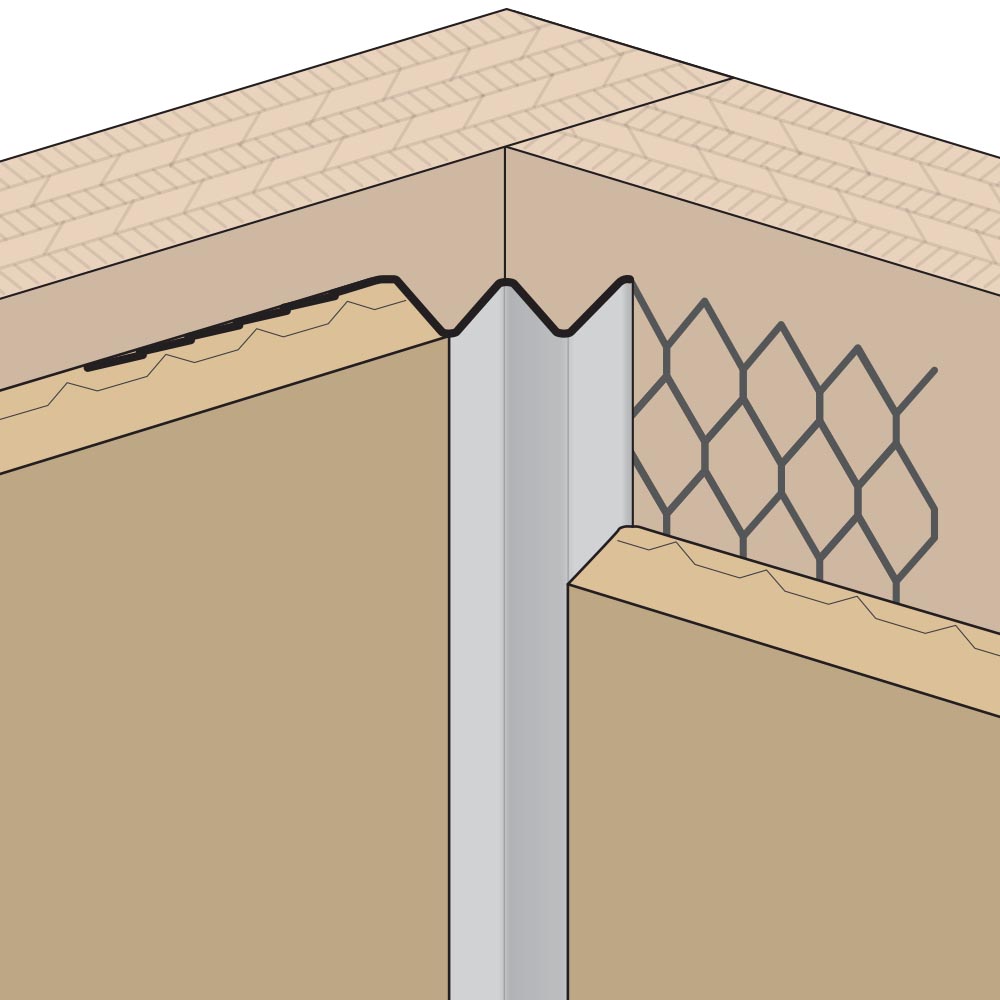

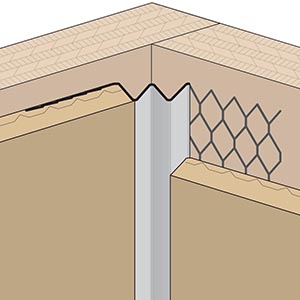

In Use

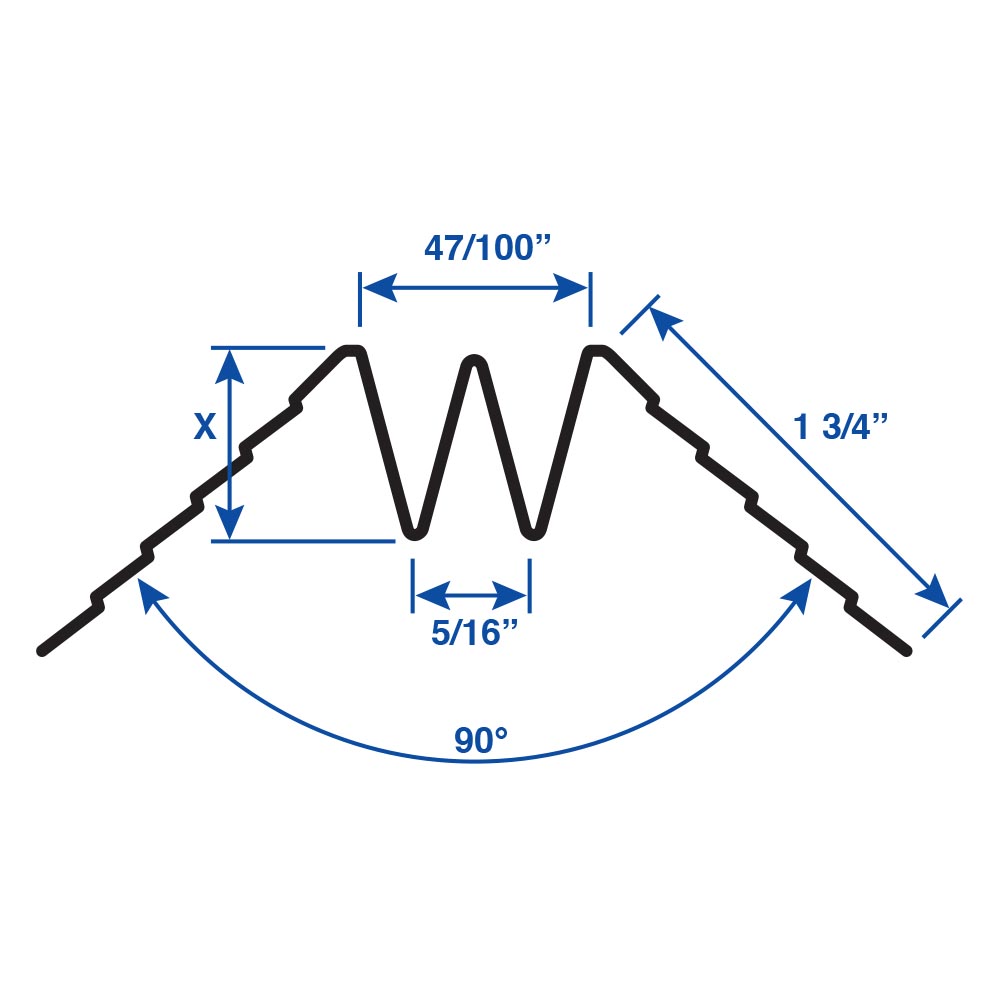

Dimensions

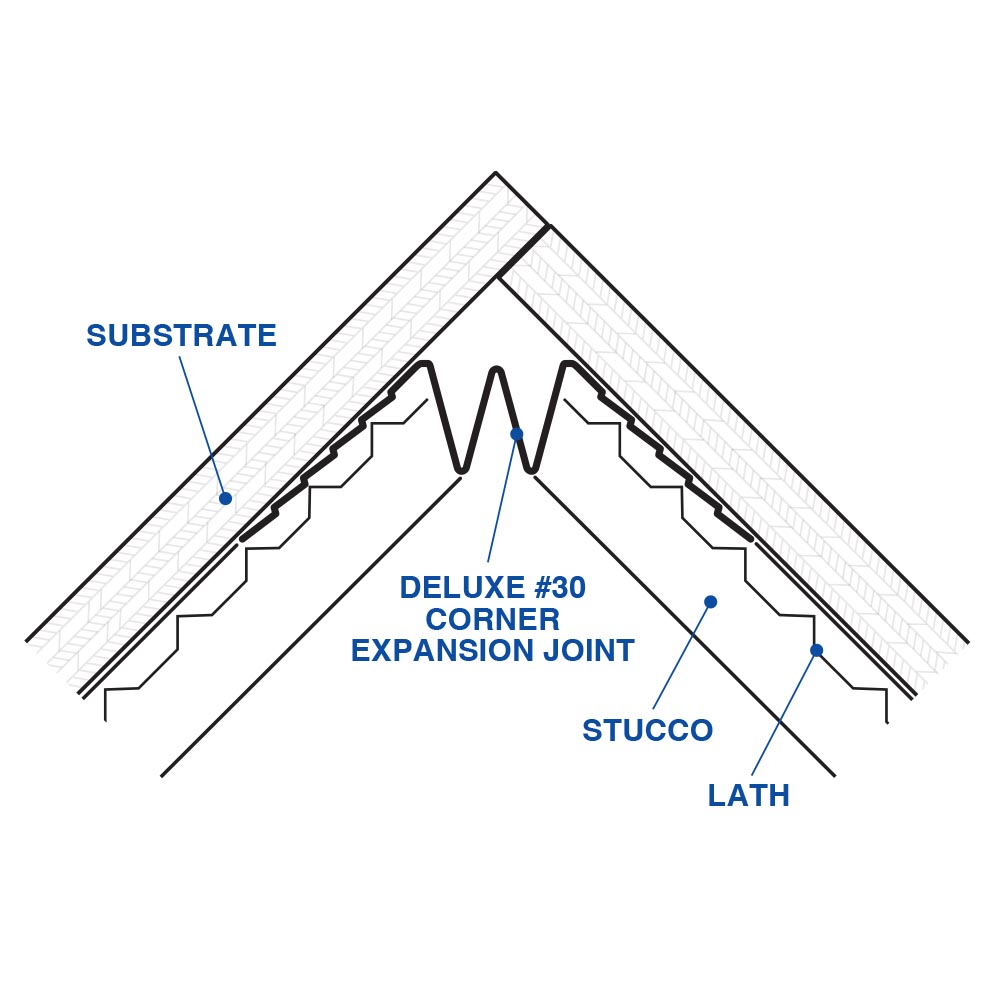

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe #30 Corner Expansion Joint Sizes Options
X Sizes
1/2", 3/4" or 7/8"
Length
120"
