Deluxe Cornermate II
  • Available in Galvanized Wire
The Deluxe CornerMate II is made with two nailing flange with on both sides. Featuring three nose wire, used for exterior corner reinforcing with conventional 3-coat 7/8" stucco.
Deluxe Cornermate II Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Class 1 G60 Galvanized (17 Gauge Wire)

ASTM & CODE STANDARDS
1063, 924, 641/A641 M-03, 653, 841, 580, Galvanized - C1063 & A924, Federal Spec QQ-S-775-D, 200 IBC, 2007 CBC

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

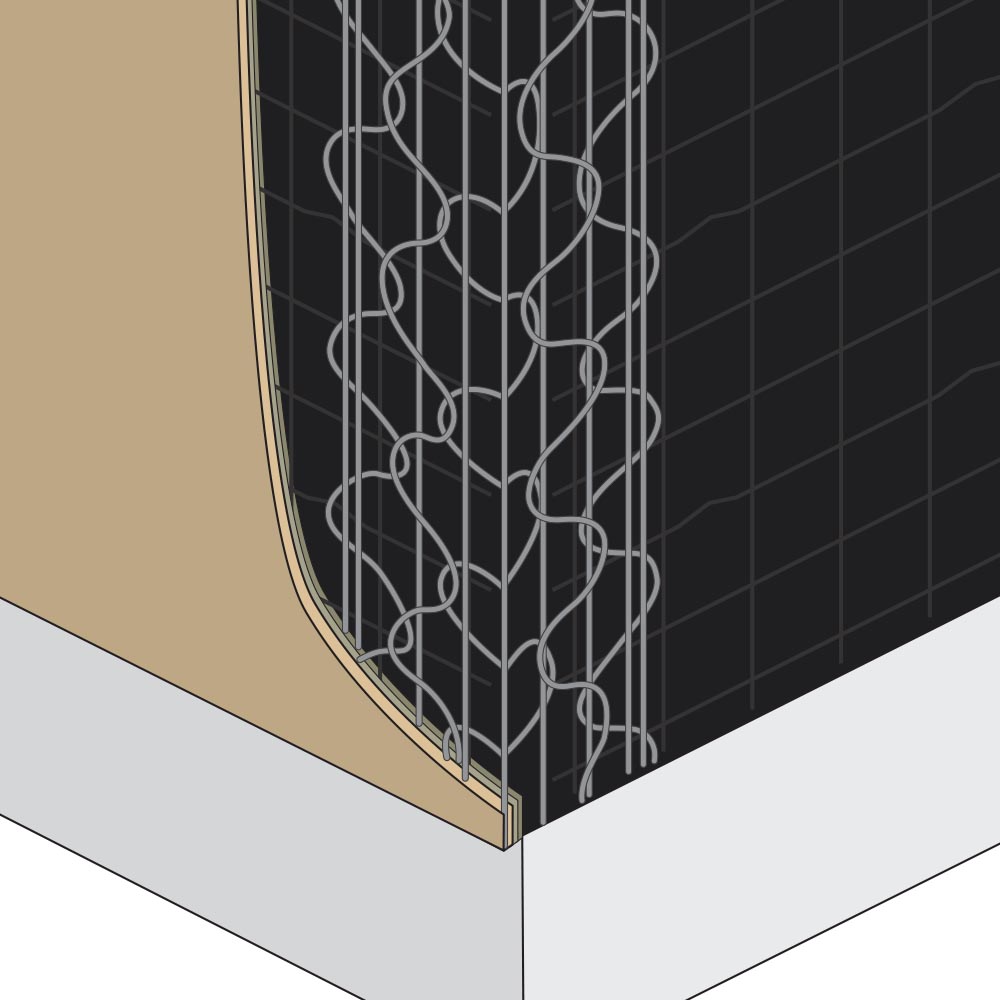

In Use

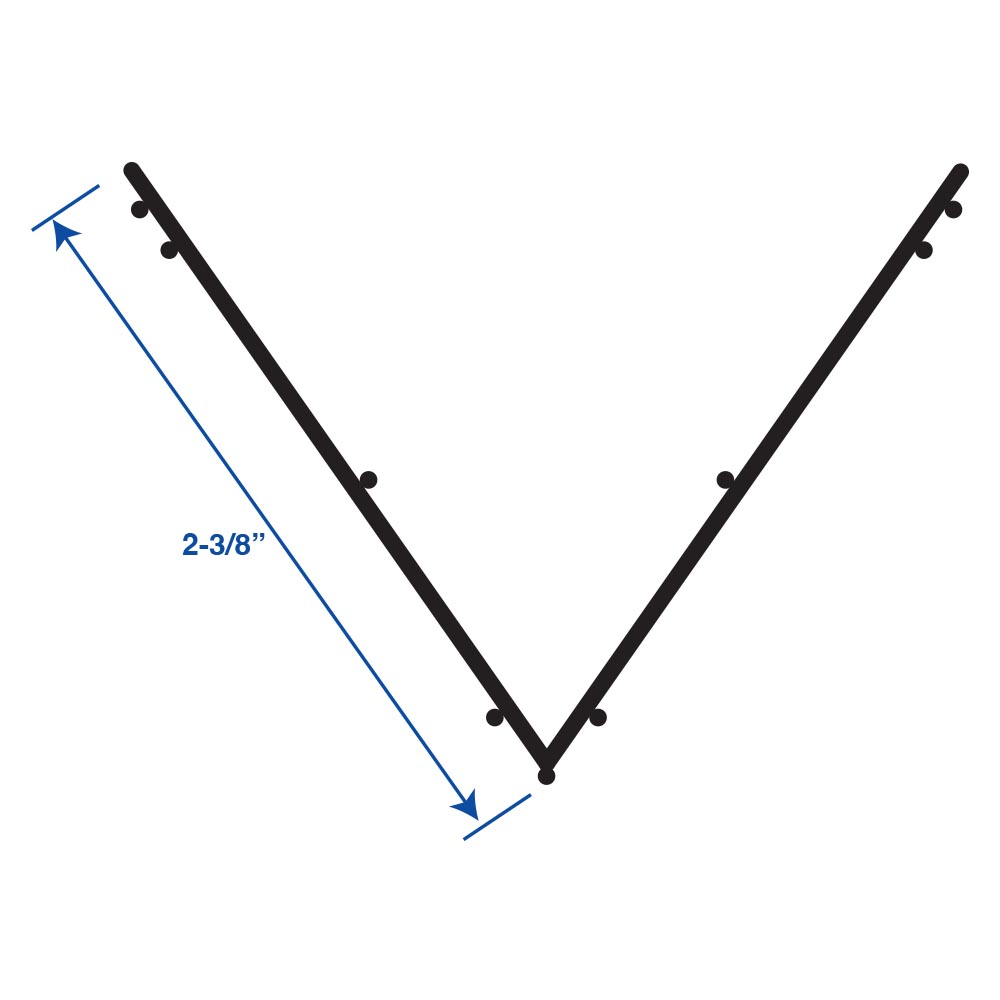

Dimensions

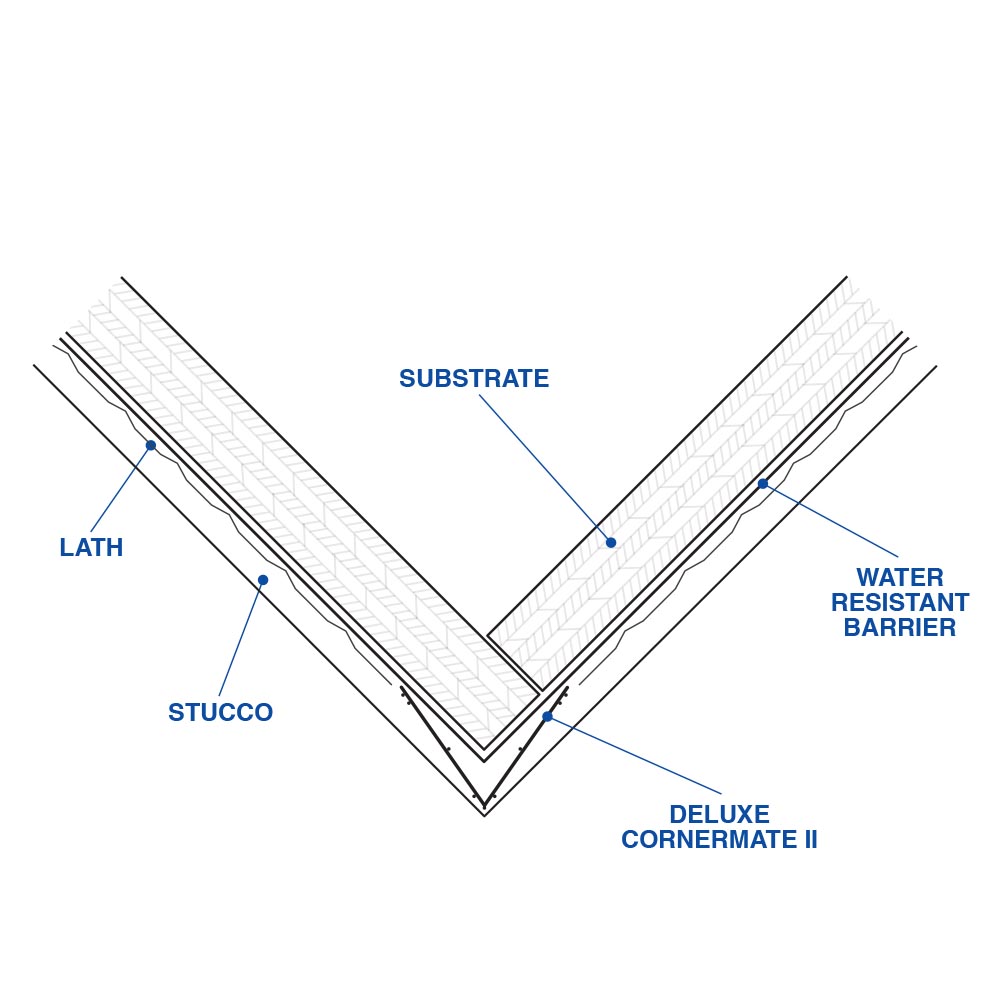

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Cornermate II Sizes Options
Total Feet
400'
Pieces
40
Length
120"
