Deluxe Diamond Lath V Groove

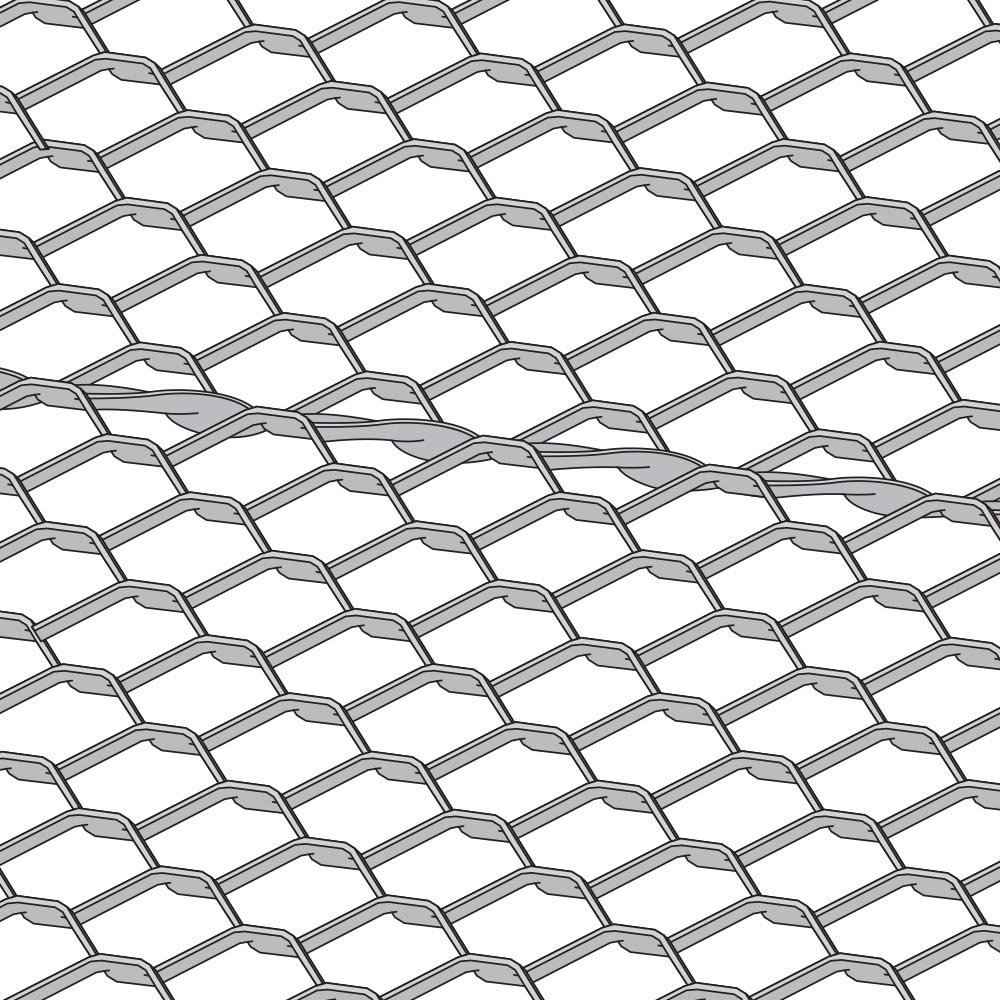

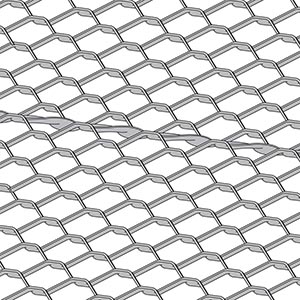

The Deluxe Diamond Lath V Groove is made with five V Grooves in the lath instead of dimples. These V Grooves provide the necessary 1/4" furring off the sheathing’s surface to allow for proper embedment and keying of the scratch coat on all types of walls.
Deluxe Diamond Lath V Groove Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Galvanized Steel

ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G60 (G90 upon request) zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69.

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

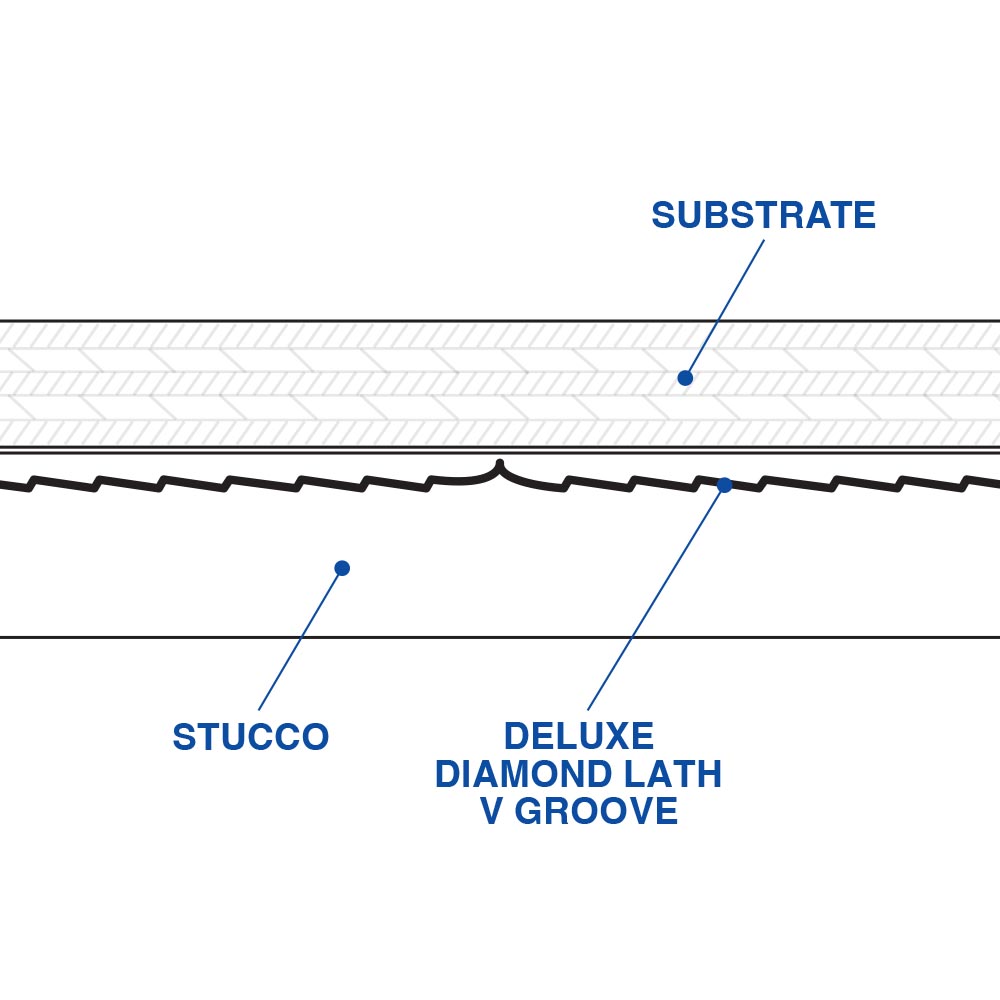

In Use

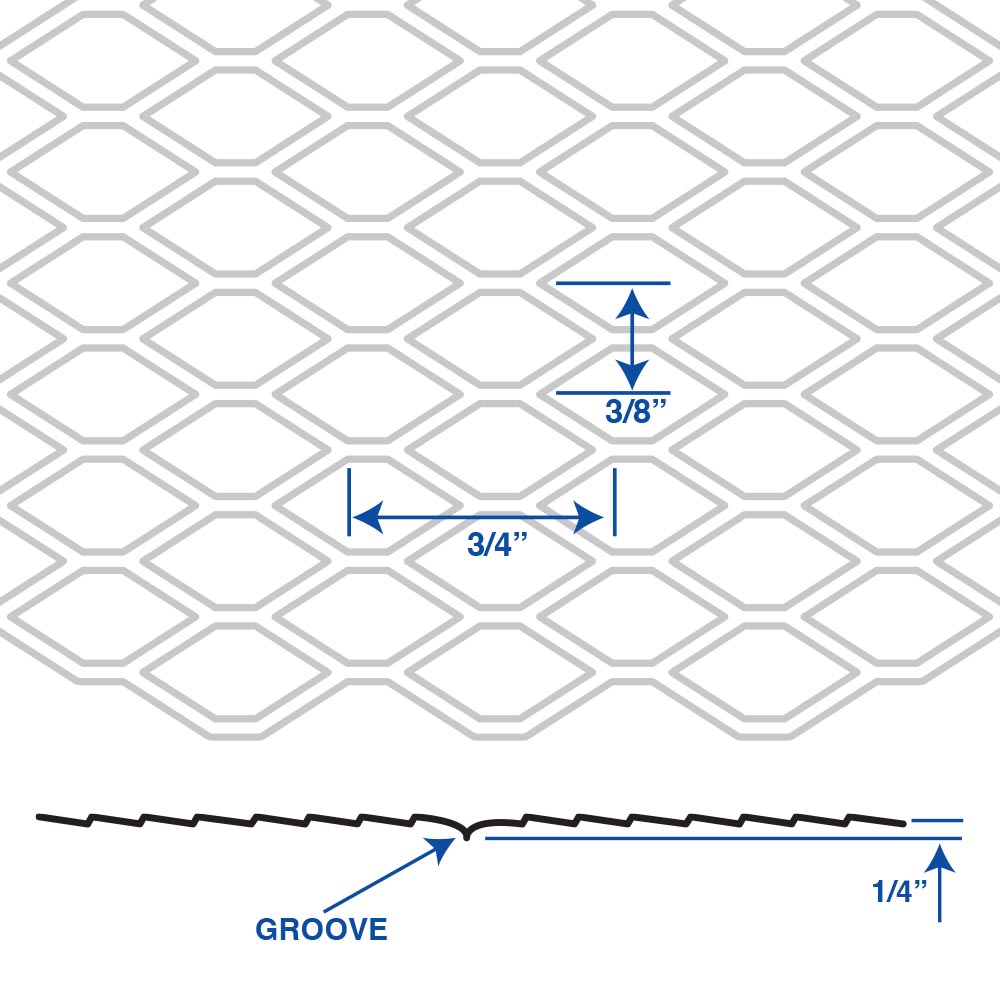

Dimensions

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Diamond Lath V Groove Sizes Options
Weight
2.5 LB or 3.4 LB
Dimensions
27" x 97"
