Deluxe #40 Expansion Joint - Two-Piece
  • Available Without Weep Holes or With 1/8" Weep Holes
  • Available in Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel
The Deluxe #40 Expansion Joint has an unique hem design to stop moisture penetration in a horizontal condition. The two-piece design allows for movement.
Deluxe #40 Expansion Joint - Two-Piece Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel

ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G90 zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69. Stainless Steel A480/A480M A580M (Stainless Steel) For installation and placement instructions refer to ASTM C1063, C841 and C926.

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

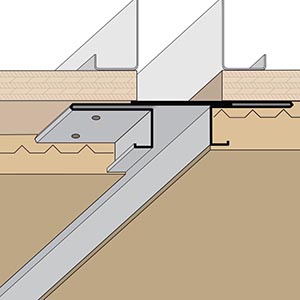

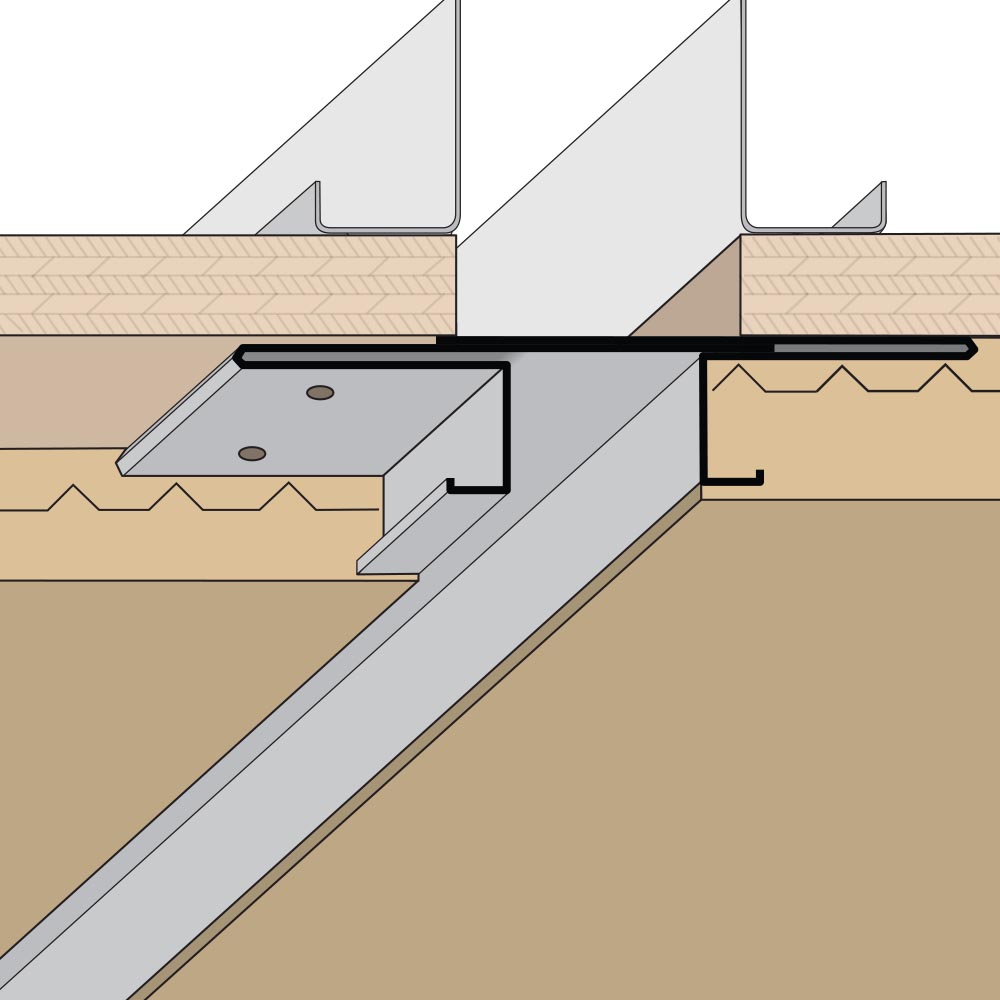

In Use

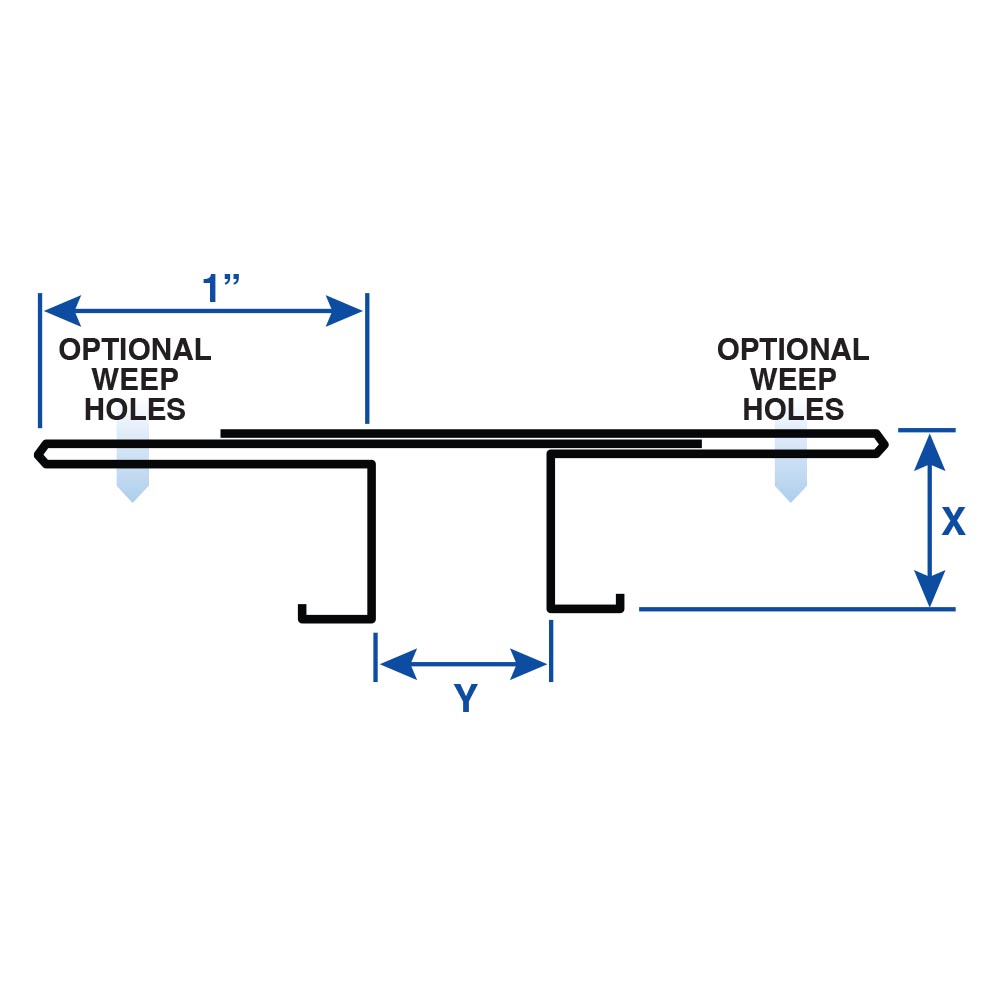

Dimensions

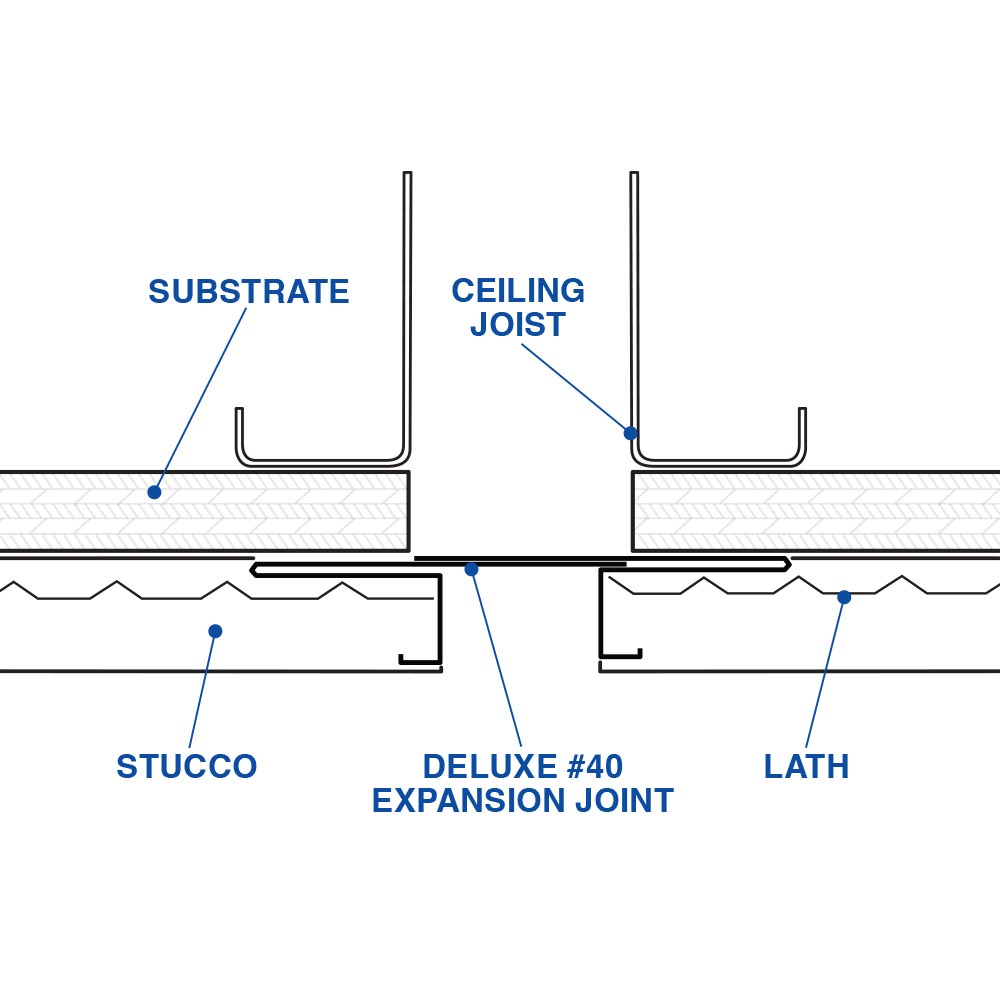

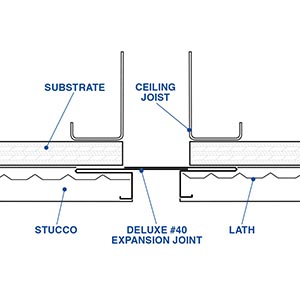

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe #40 Expansion Joint - Two-Piece Sizes Options
X Sizes
3/4", 7/8", 1", 1 1/4", 1 3/8" or 1 1/2"
Y Sizes
1/4", 1/2", 3/4", 1", 1 1/2" or 2"
Length
120"
