Deluxe Expansion Water-Resistant Reveal - 2 Piece
- Available With No Weep Holes or 1/8" Weep Holes
- Available in Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel
- Custom Sizes Available!

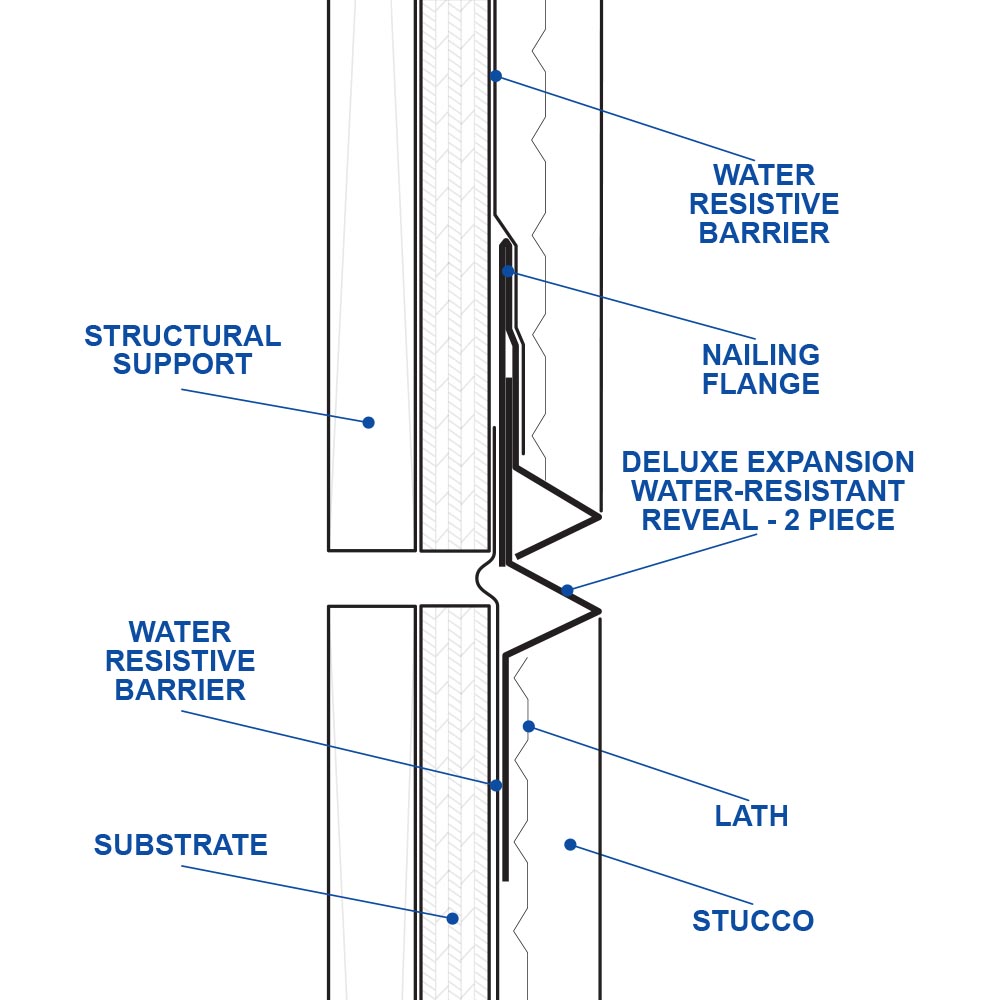

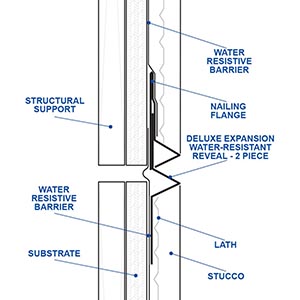

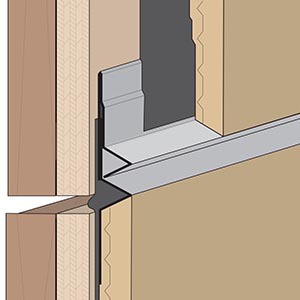

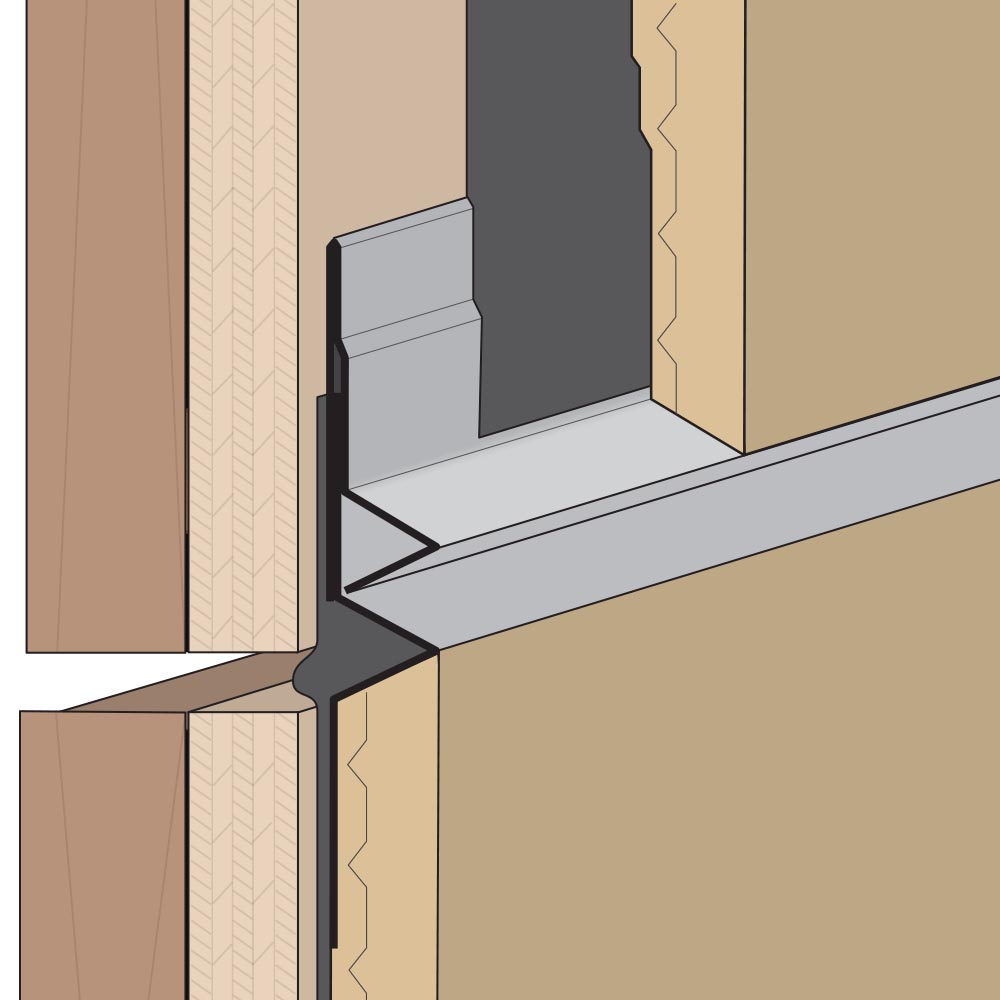

The Deluxe Expansion Water-Resistant Reveal - 2 Piece has dual function, the self-aligning expansion joint provides movement capability at the floor line while allowing moisture to release from the top ground and locks out moisture from the bottom. Special Step on the attachment leg provides a locator for correct placement of the fasteners and helps keep the molding laying flat on the wall.
MATERIALS AND FINISHES
Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel
ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G90 zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69. Stainless Steel A480/A480M A580M (Stainless Steel) For installation and placement instructions refer to ASTM C1063, C841 and C926.
ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.

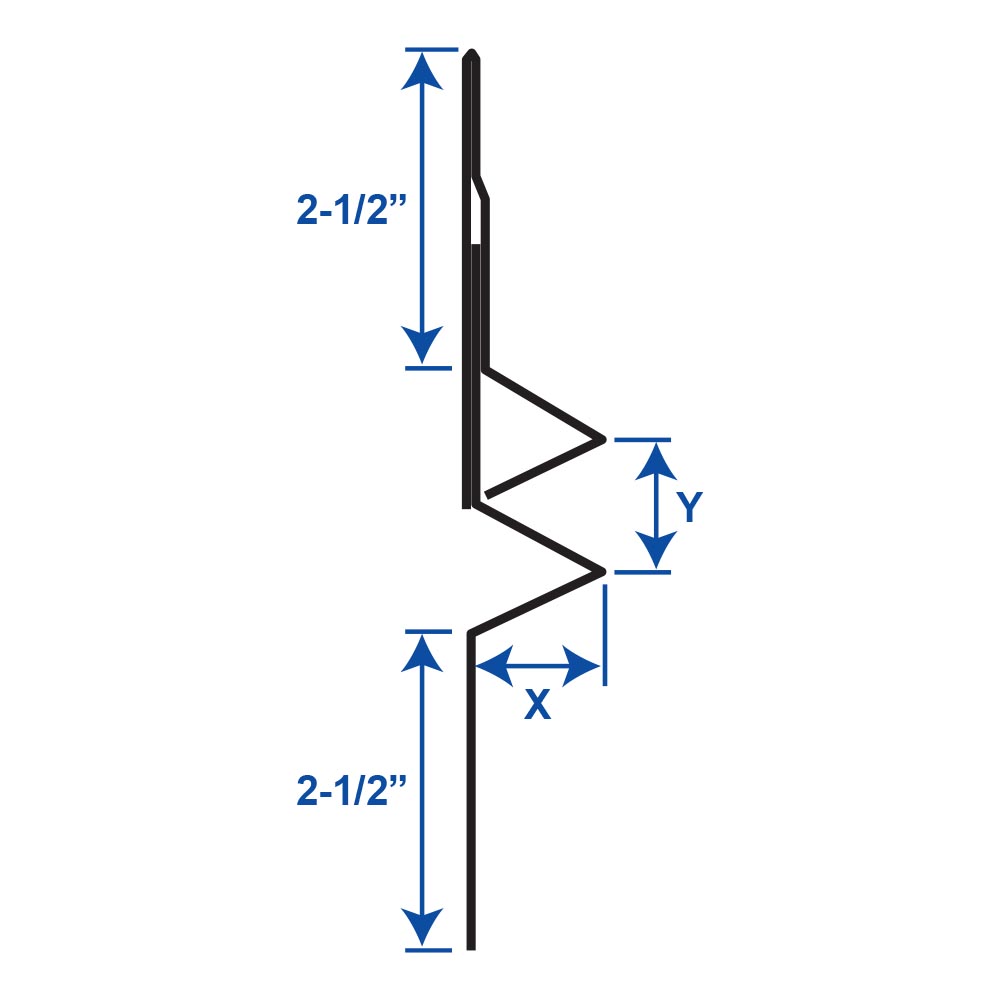

Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
