Deluxe Building Products > Lath & Plaster Products > Deluxe J Bead


Deluxe J Bead
  • Available Without Weep Holes or With 1/8" or 1/2" Weep Holes
  • Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel
The Deluxe J Bead is a standard plaster stop and casing bead for terminating stucco. Has a return key for finishing.
Deluxe J Bead Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Aluminum, Copper, Galvanized Steel, Bonderized® or Stainless Steel

ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G90 zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69. Stainless Steel A480/A480M A580M (Stainless Steel) For installation and placement instructions refer to ASTM C1063, C841 and C926.

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

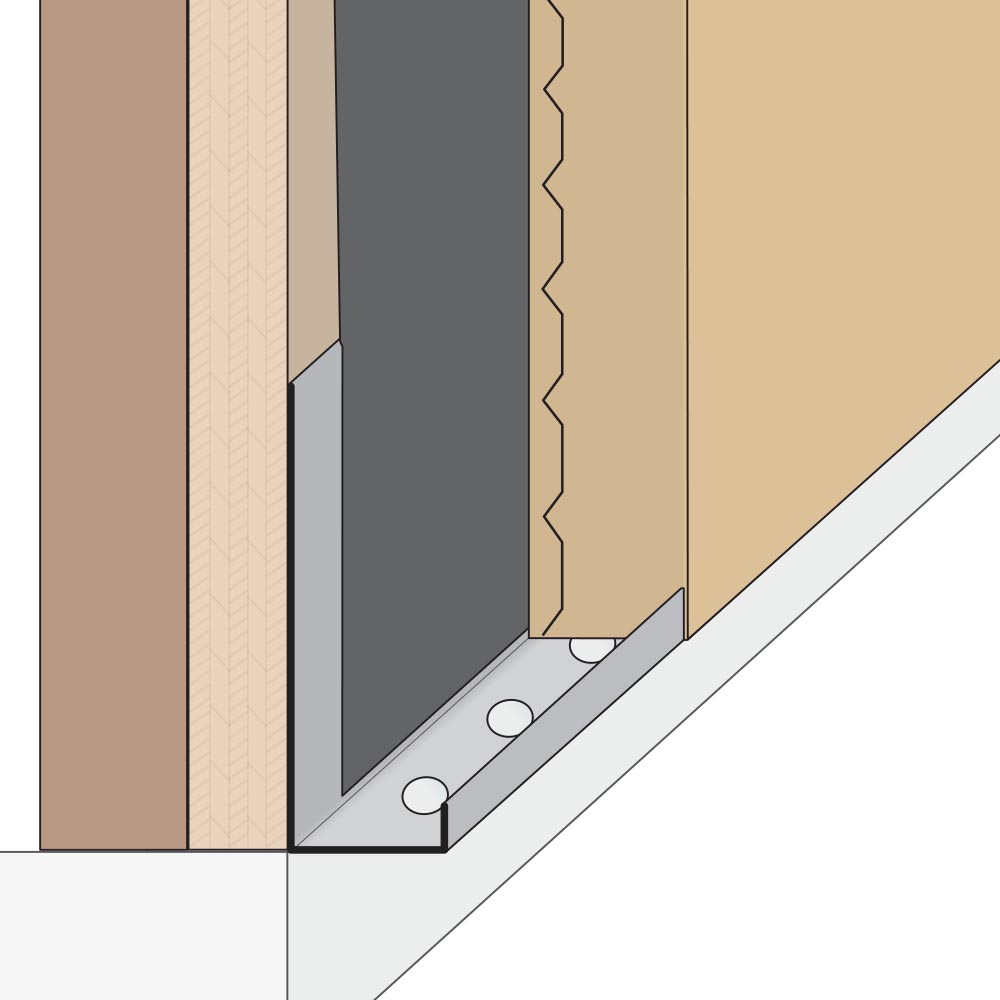

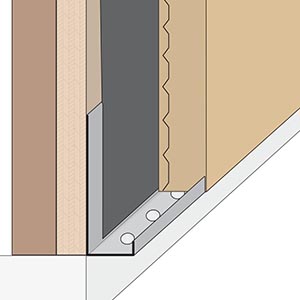

In Use

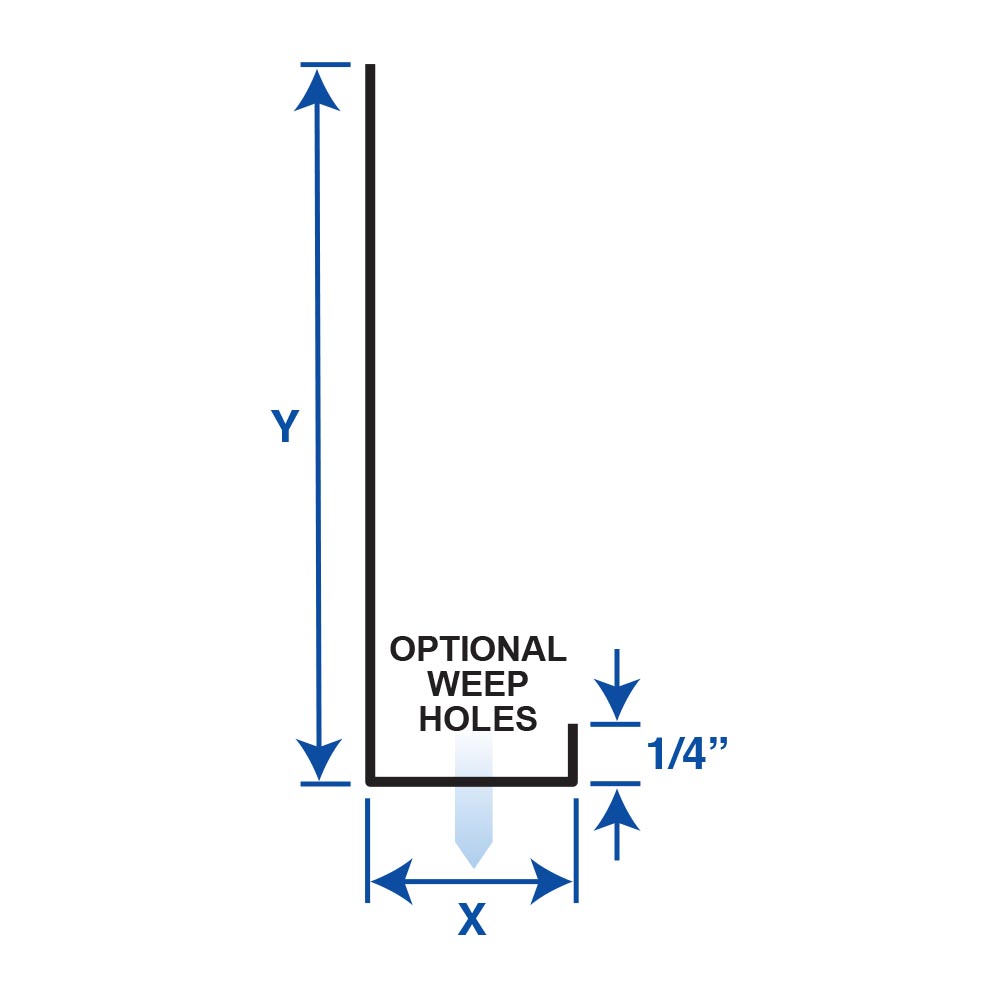

Dimensions

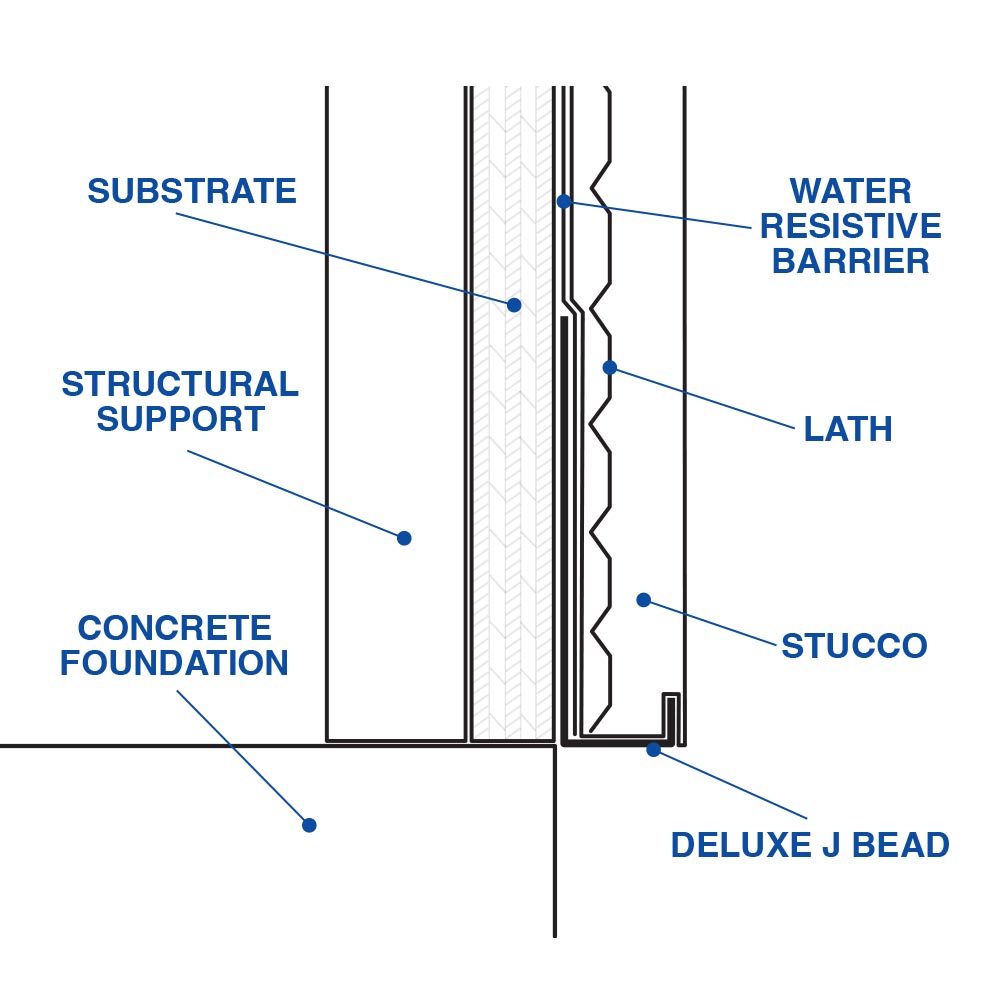

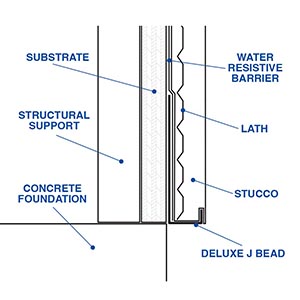

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe J Bead Sizes Options
X Sizes
3/8", 1/2", 3/4", 7/8", 1", 1 1/8", 1 1/4", 1 3/8", 1 1/2" or 2"
Y Sizes
3 1/2" or 5"
Length
120"
Deluxe Building Products > Lath & Plaster Products > Deluxe J Bead


Deluxe J Bead
  • Available in Galvanized Steel 26ga
  • Available in 10' length
  • Available in 3/8", 1/2", 3/4", 7/8" or 1-3/8"
Deluxe J Bead Data Sheet
Quote Request Form

MATERIALS AND FINISHES

ASTM & CODE STANDARDS

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point


In Use

Dimensions

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe J Bead Sizes Options
X Sizes
3/8", 1/2", 3/4", 7/8", 1", 1 1/8", 1 1/4", 1 3/8", 1 1/2" or 2"
Y Sizes
3 1/2" or 5"
Length
120"
