Deluxe JL Corner (Shaft Wall)
  • Eliminates Multi-Piece Shaft Wall Corner Construction
  • Eliminates Air Gaps In Shaft Wall Corners
  • Provides Greater Structural Integrity For Corners
  • Custom Lengths Available Up To 14' Long
  • Available in 20ga, 18ga, and 16ga Galvanized Steel
The Deluxe JL Corner is a single piece metal framing member designed for outside corners within shaft wall assemblies.
Quote Request Form

MATERIALS AND FINISHES
Galvanized

ASTM & CODE STANDARDS
653-CS, A1003, A653, A934, C645, C745, C955

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

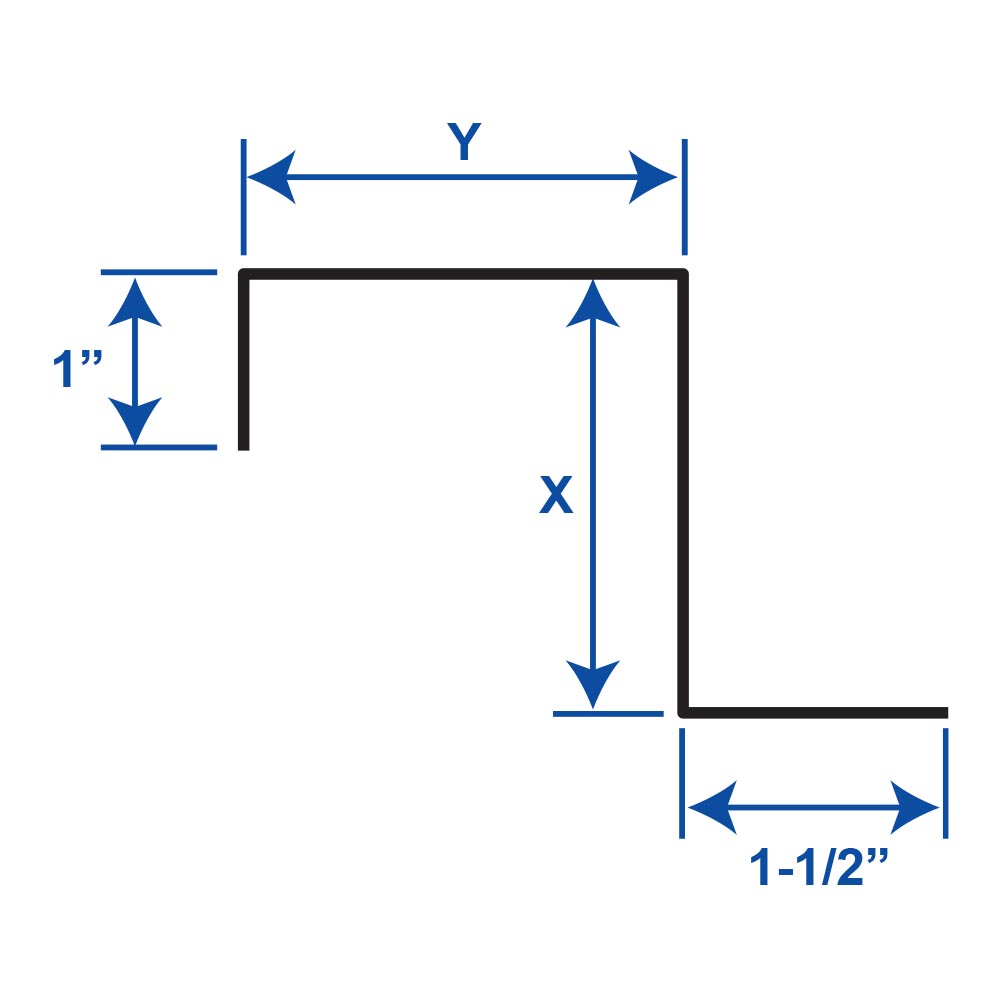

Dimensions

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe JL Corner (Shaft Wall) Sizes Options
X Sizes
2 1/2", 4" or 6"
Y Sizes
2 1/2", 4" or 6"
Length
up to 168"
