Deluxe Econo Slide Expansion Joint
- Available Without Weep Hole. With 1/4" or With 1/2” Weep Holes
- Available in Aluminum, Copper, Galvanized Steel (G90), Bonderized or Stainless Steel

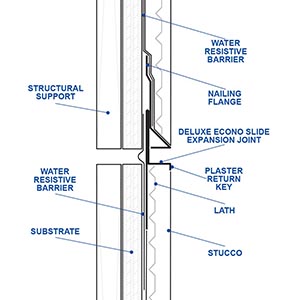

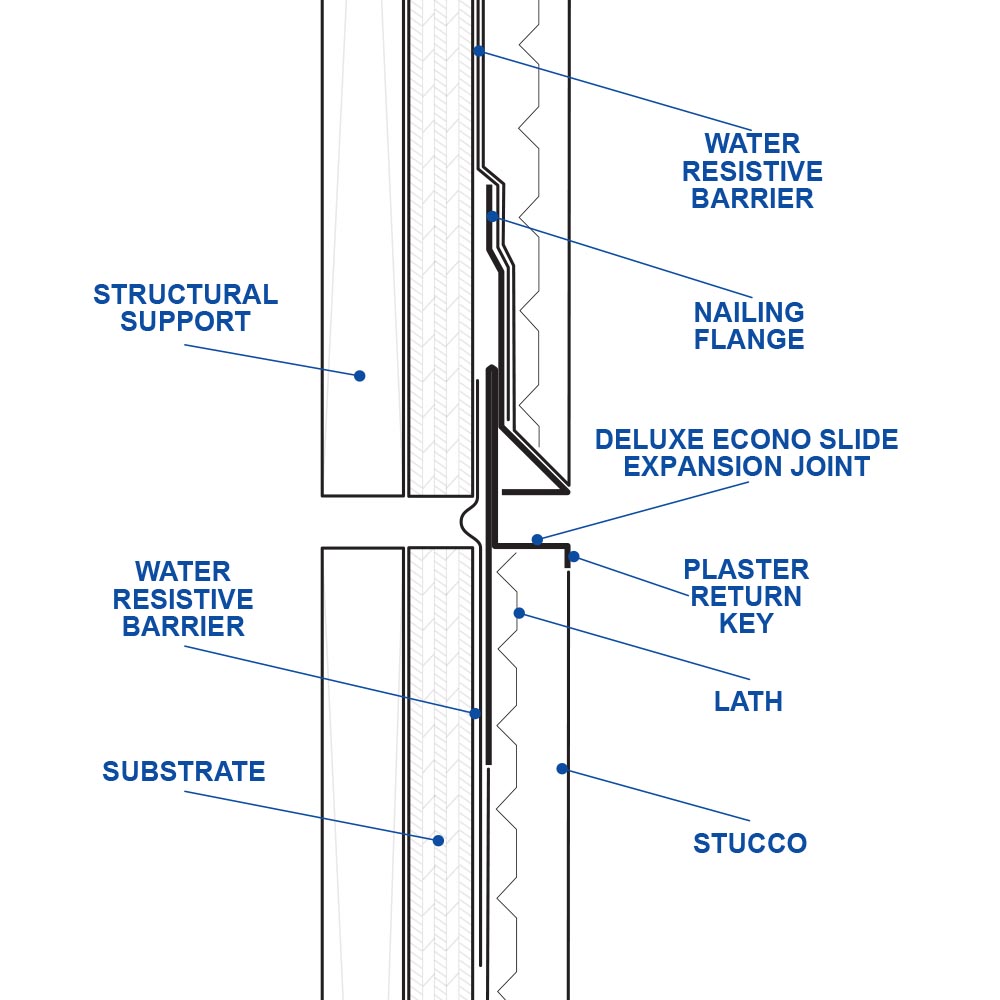

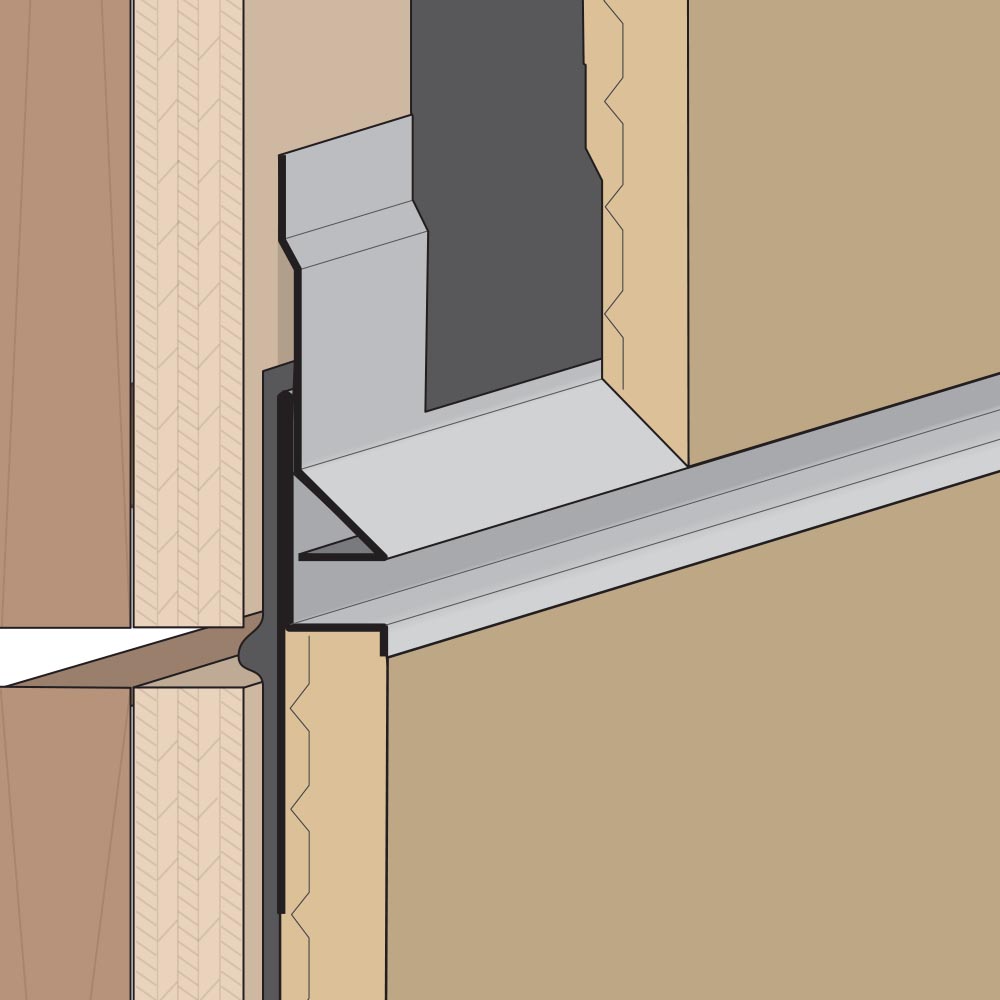

The Deluxe Econo Slide Expansion Joint is an economically priced version of our Deluxe Two Piece Expansions Joint. It does not have a back leg behind upper portion of the profile. These self aligning two piece design allows for 1" of vertical movement. These two pieces allow moisture drainage from the top and lock out moisture from the bottom.
MATERIALS AND FINISHES
Aluminum, Bonderized, Copper, Galvanized Steel or Stainless Steel
ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G90 zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69. Stainless Steel A480/A480M A580M (Stainless Steel) For installation and placement instructions refer to ASTM C1063, C841 and C926.
ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.

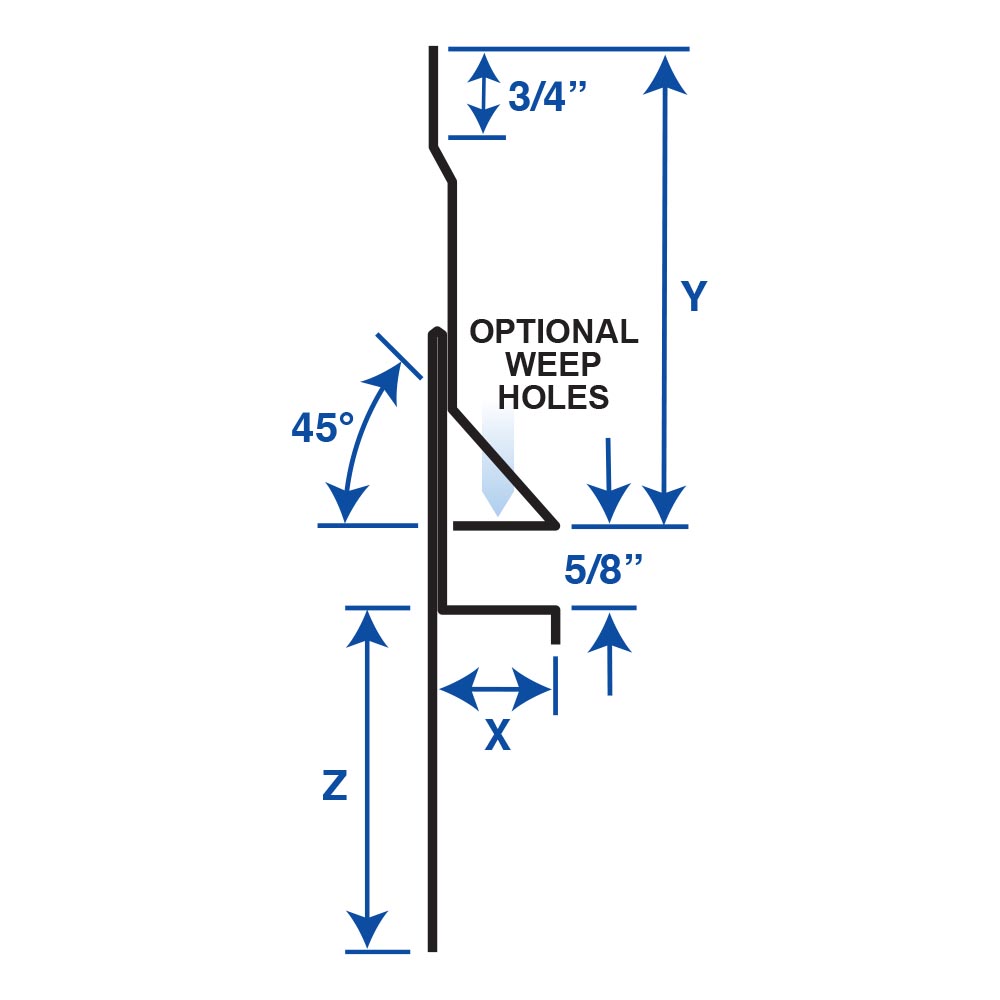

Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
