Deluxe Offset Weep Screed
  • Available With 1/2" Weep Holes or No Weep Holes
  • Available in Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel

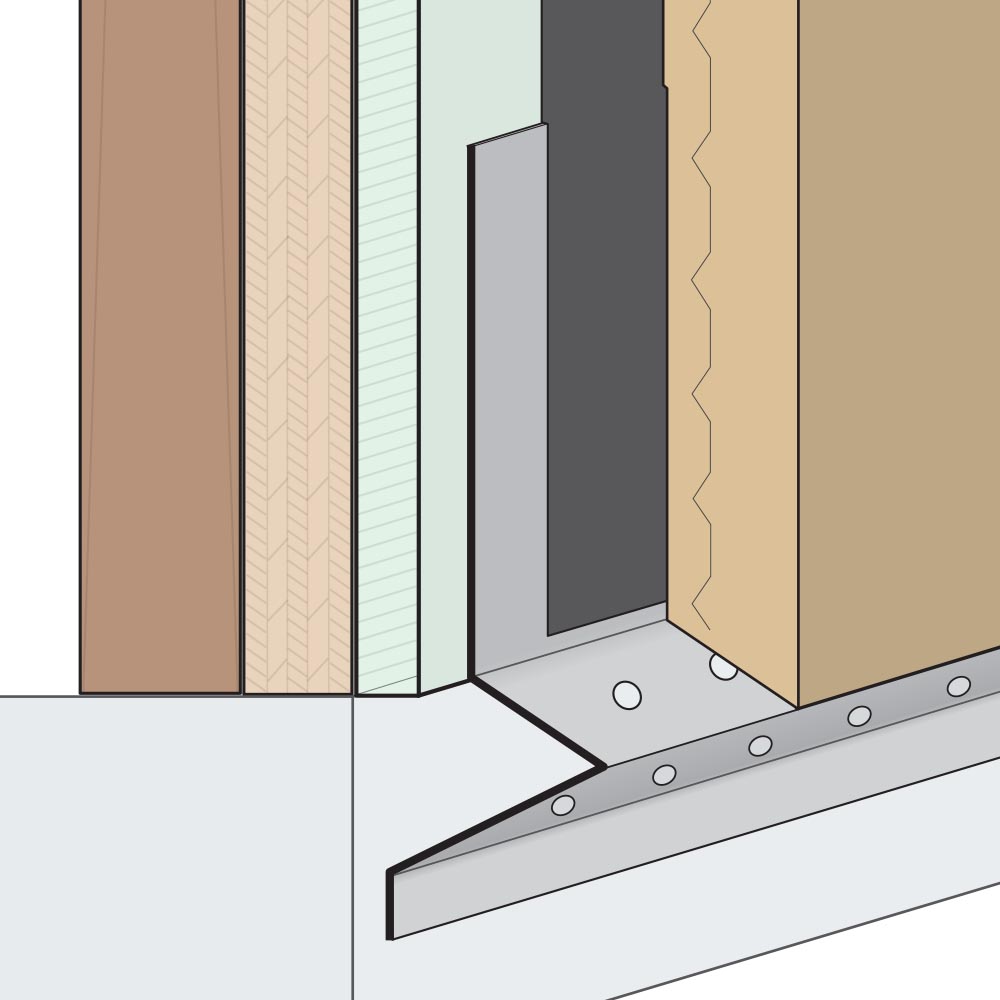

The Deluxe Offset Weep Screed is a special weep screed for those conditions where the sheer wall exceeds the foundation in plane. This special design permits the bottom leg of the weep screed to return back to the foundation
Quote Request Form

MATERIALS AND FINISHES
Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel

ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G90 zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69. Stainless Steel A480/A480M A580M (Stainless Steel) For installation and placement instructions refer to ASTM C1063, C841 and C926.

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

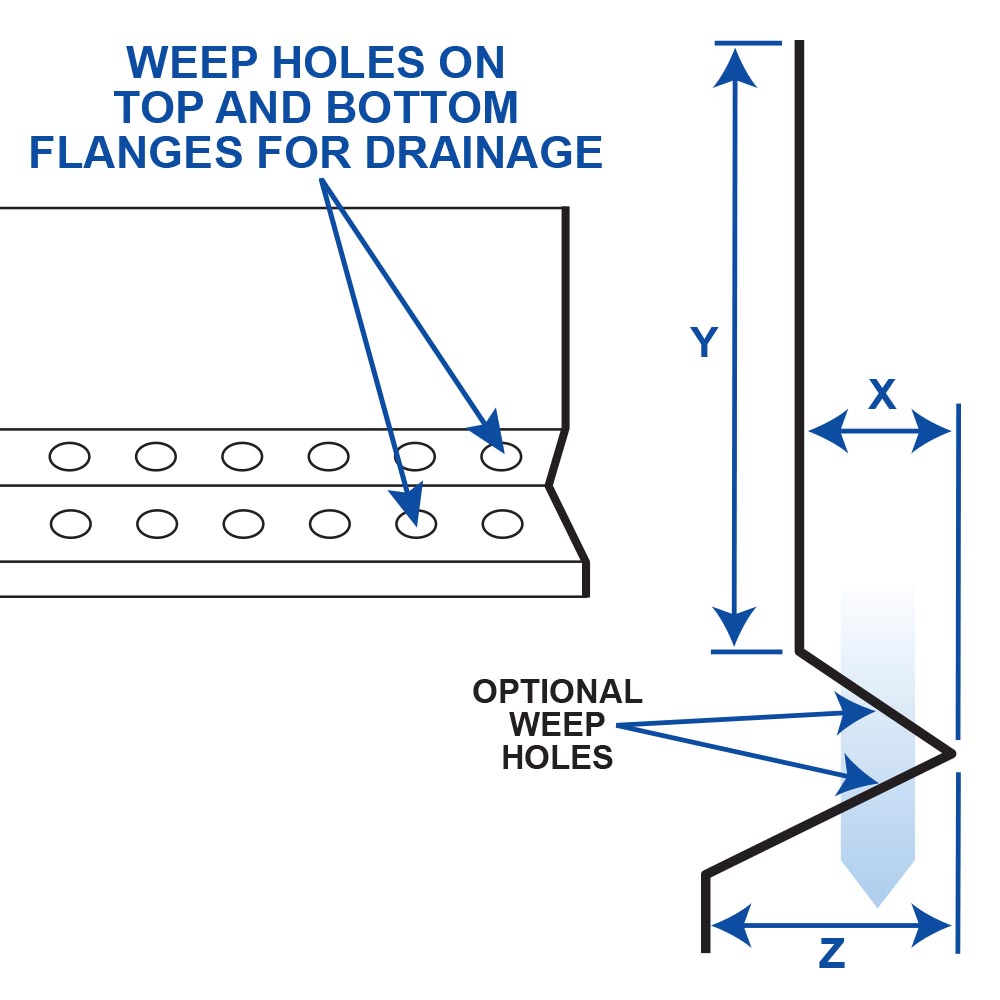

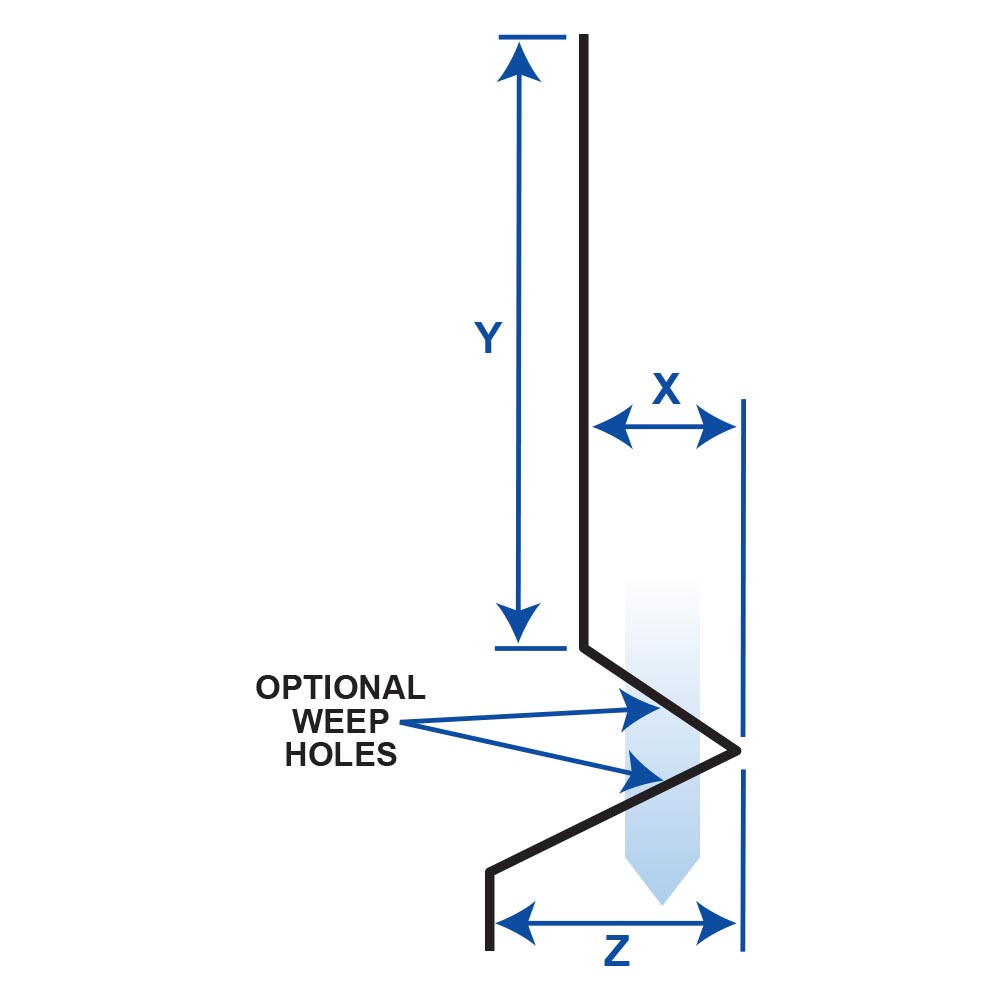

Dimensions

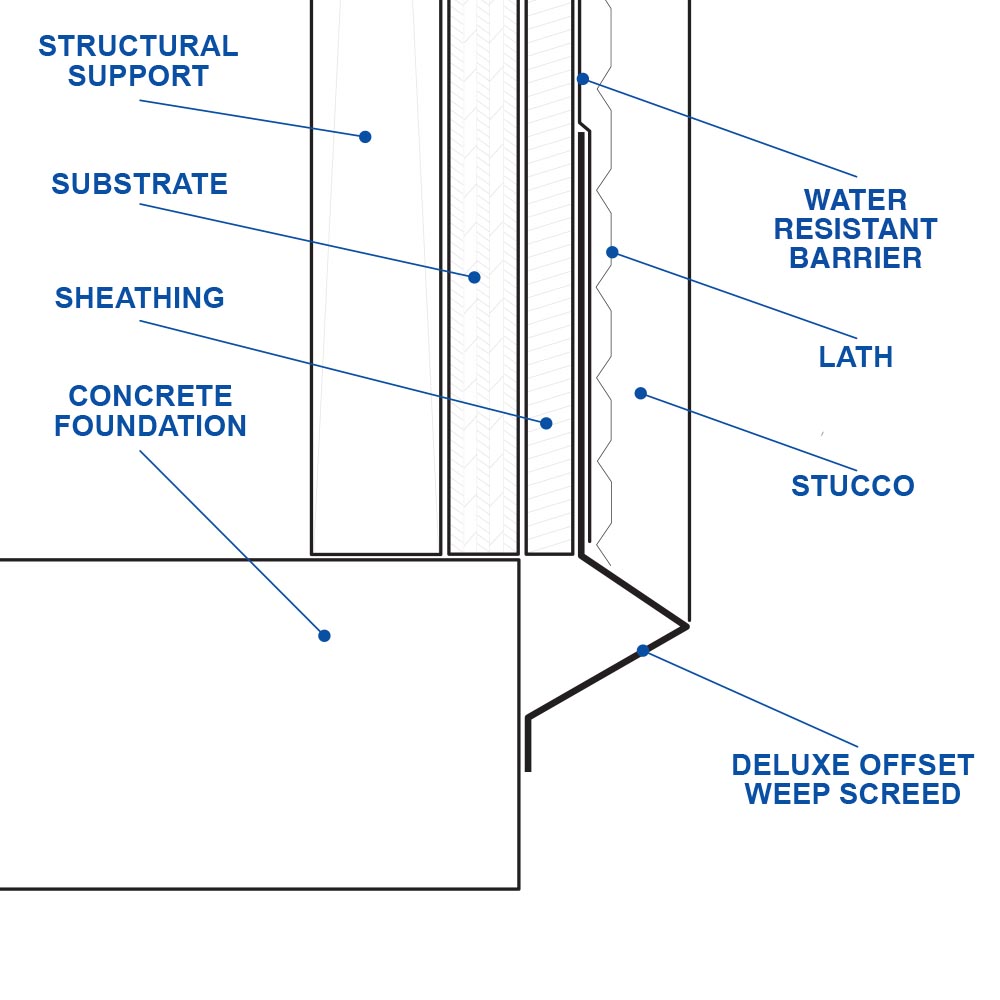

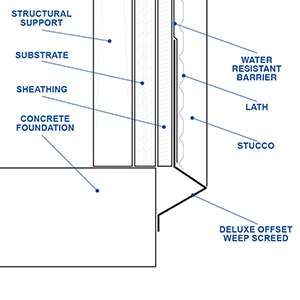

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Offset Weep Screed Sizes Options
X Sizes
1/2", 3/4", 7/8", 1", 1 3/8" or 1 1/2"
Y Sizes
3 1/2", 4", 4 1/2" or 5"
Z Sizes
1", 1 1/4", 1 3/8", 1 1/2" or 2"
Length
120"
