Deluxe Plywood Style Vent
  • Available Unventer or With Either 1/8" or 1/4" Vent Holes
  • Available Pre-Painted Brown (B), White (W) or Unpainted (G)
  • Galvanized Steel Only
  • Custom Sizes Available!
The Deluxe Plywood Style Vent is a specialty soffit vent for use with plywood soffit conditions.
Deluxe Plywood Style Vent Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Galvanized Steel

ASTM & CODE STANDARDS
653-CS, A1018, A262, A36, A513, A653, A792, A924, B 370-12, B-209, B-209, B6/B69, C1047, C1063, C841, ML/SFA 920

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

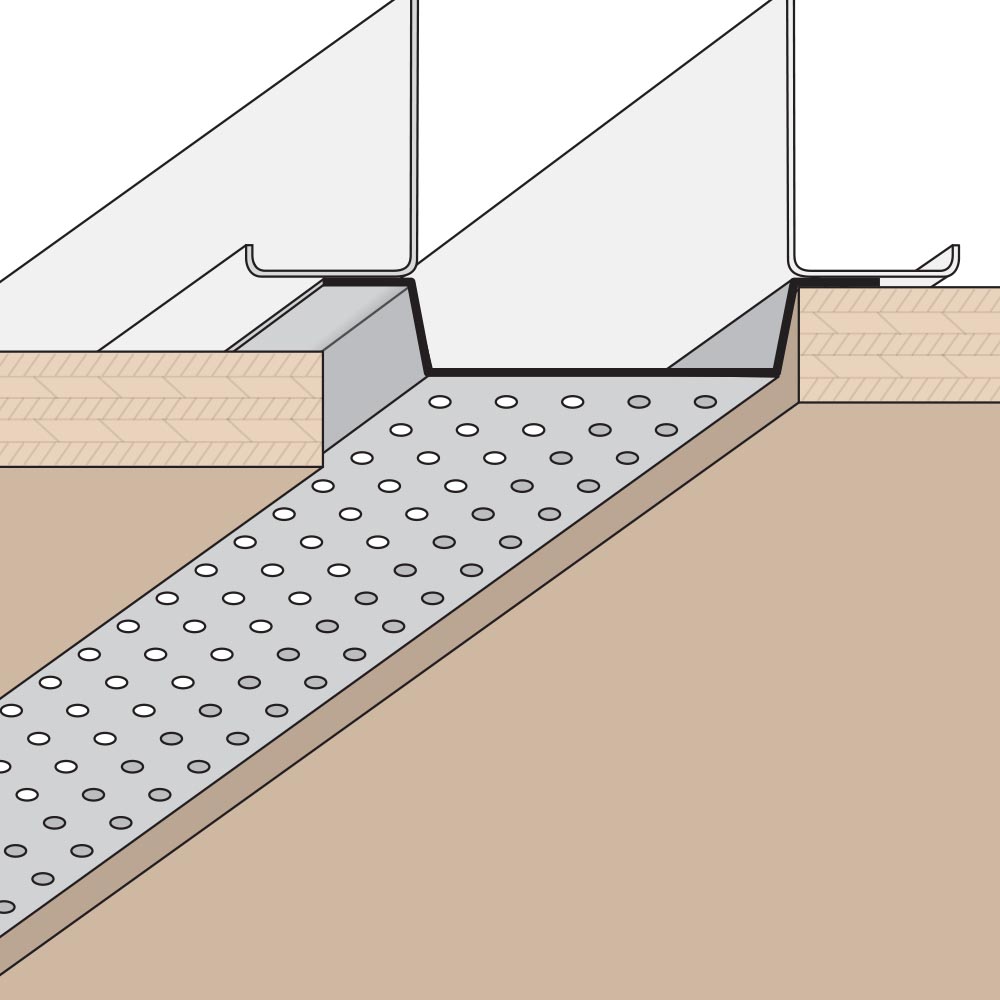

In Use

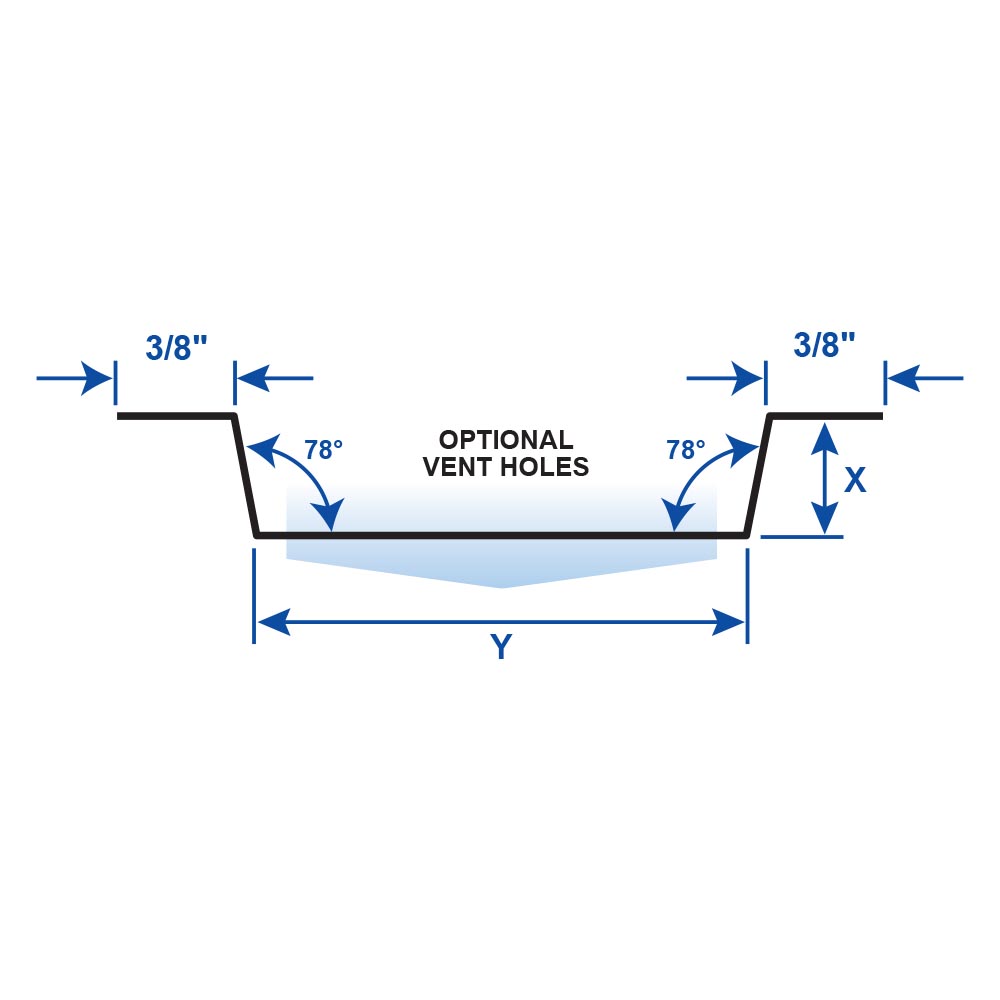

Dimensions

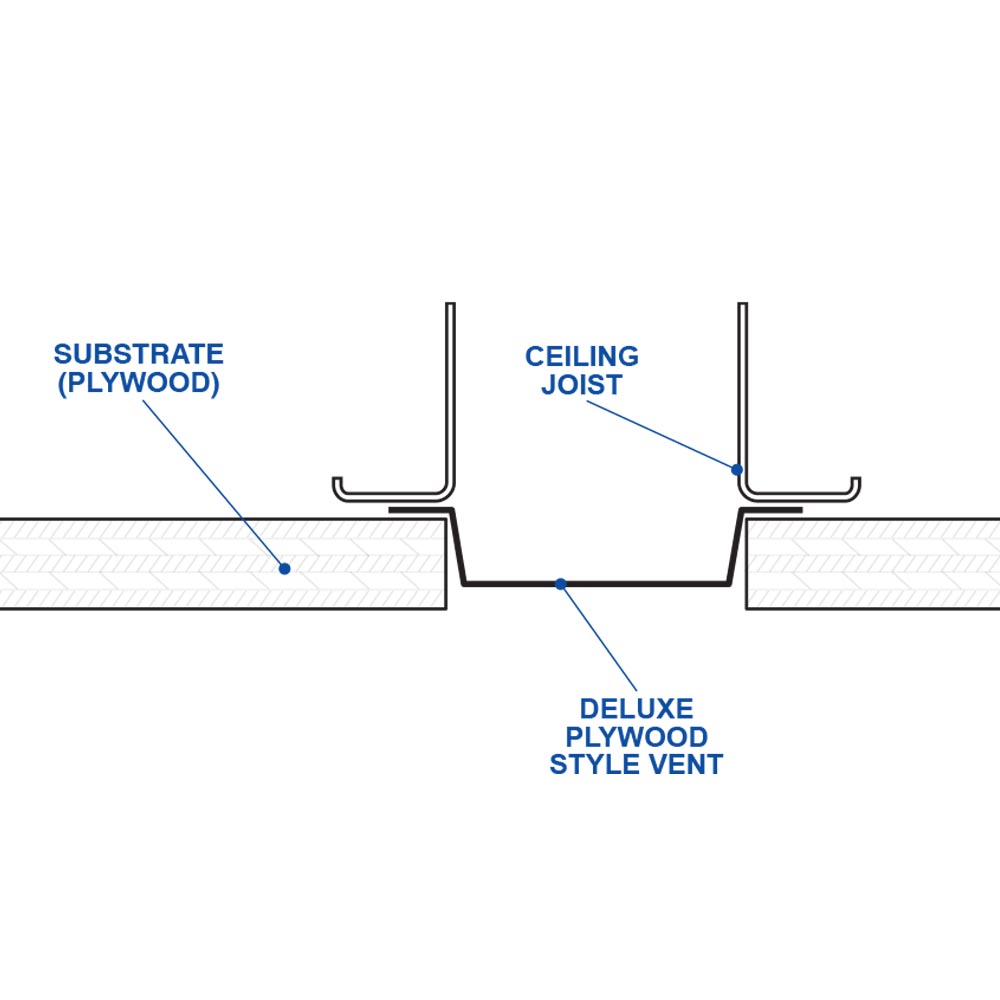

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Plywood Style Vent Sizes Options
X Sizes
1/2" or 3/8"
Y Sizes
3/4", 2 1/4" or 4"
Length
120"
