Deluxe Lath Patches
- Available in Galvanized Steel, 26 ga G60
- Excellent For Spray-Applied Fireproofing
- Custom Sizes Available!

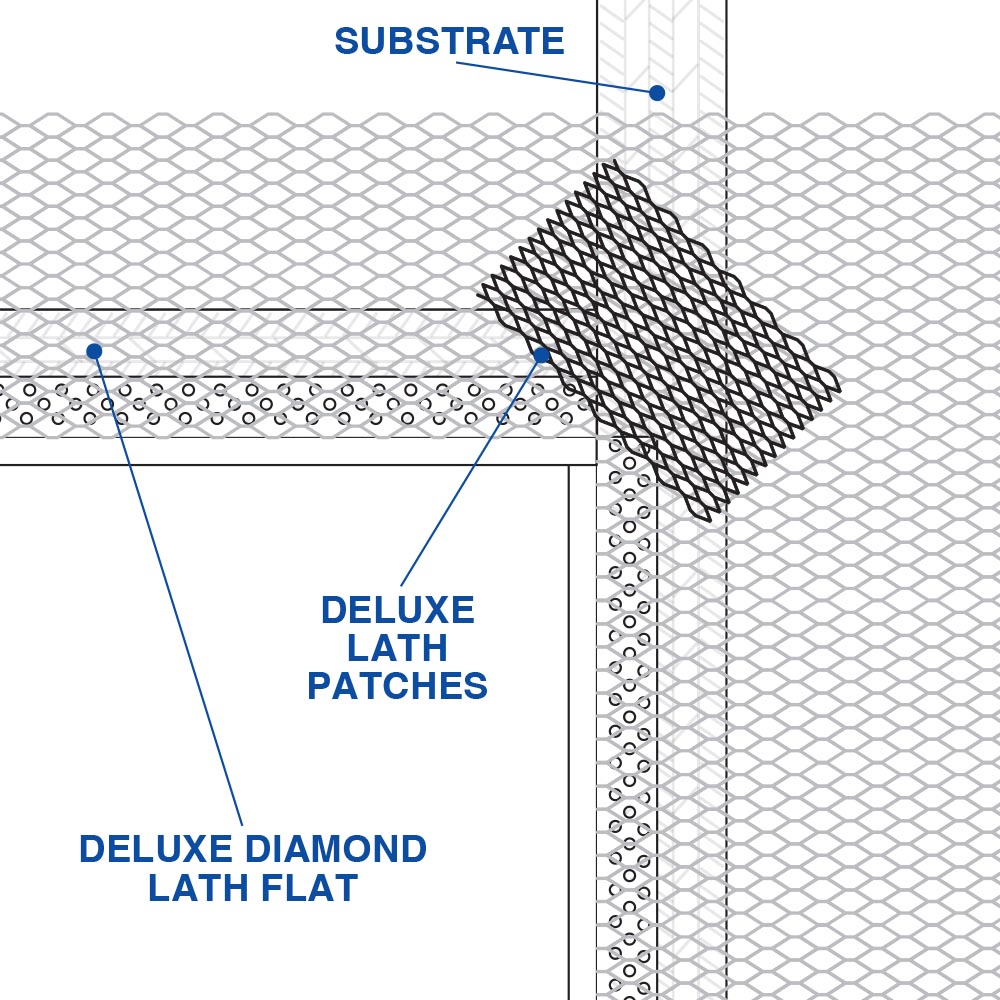

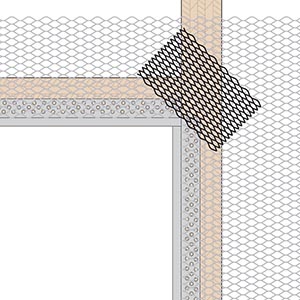

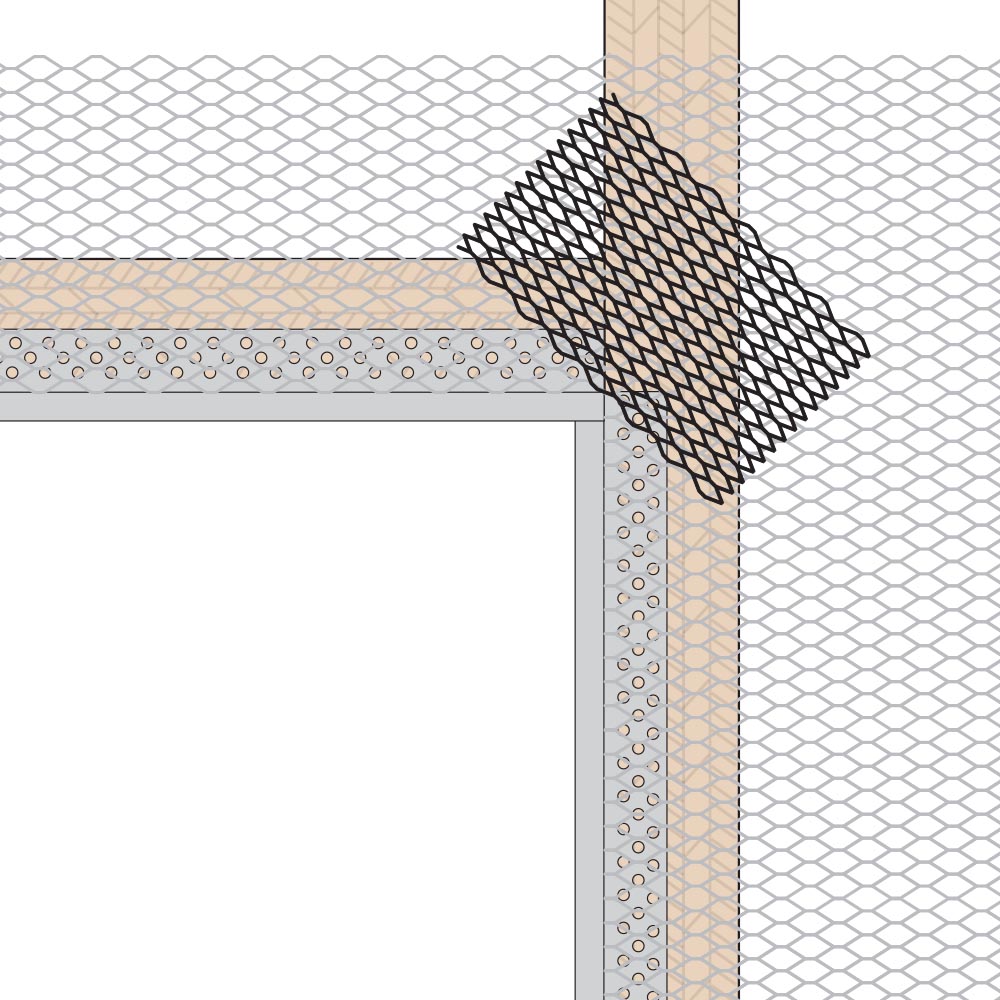

The Deluxe Lath Patches are used over window and door corners to reduce cracking. by reinforcing stress areas. They are also used as "Grout Stop" in masonry applications. Made from 2.5 diamond lath in 26 gauge galvanized steel in standard G60 coating (G90 upon request).
Deluxe Lath Patches may also be used to span pipe chases or to reinforce other stress points, such as the corners of openings in the stucco membrane within the lath system. It's an excellent mechanical break for painted steel when applying fireproofing.
MATERIALS AND FINISHES
2.5 lb (minimum) expanded lath
G-60 Hot-Dipped Galvanized Steel (G90 upon request)
ASTM & CODE STANDARDS
ASTM: A653, A924, C841, C1063
IBC: 2018, 2021, 2024
CBC: 2019, 2022, 2025
AISI: S100, S220
ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.

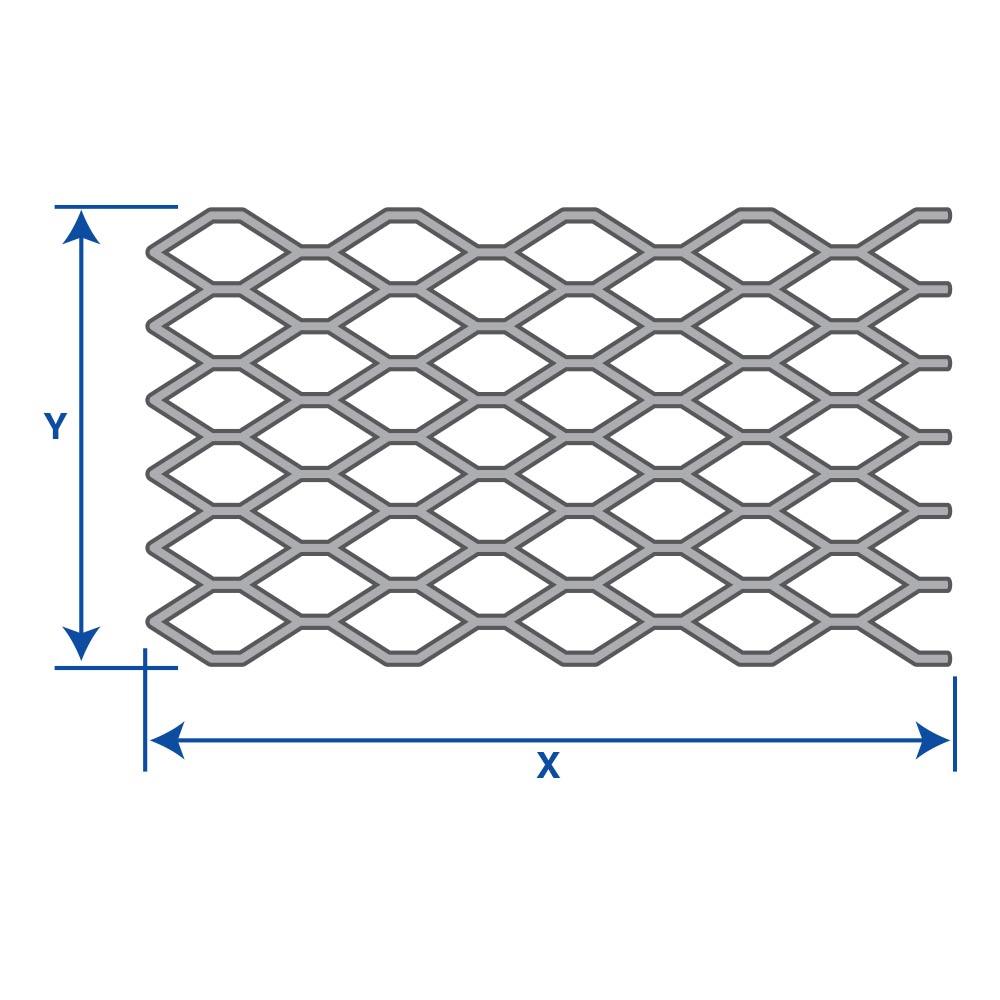

Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
