Deluxe Soffit Drip Mold
  • Available in Aluminum, Copper, Galvanized Steel (G90), Bonderized or Stainless Steel
The Deluxe Soffit Drip Mold is designed to be used as a drip molding at fascia, soffit transition or at recessed window conditions to provide a decorative plaster stop and drip edge.
Deluxe Soffit Drip Mold Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Aluminum, Bonderized, Copper, Galvanized Steel or Stainless Steel

ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G90 zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69.

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

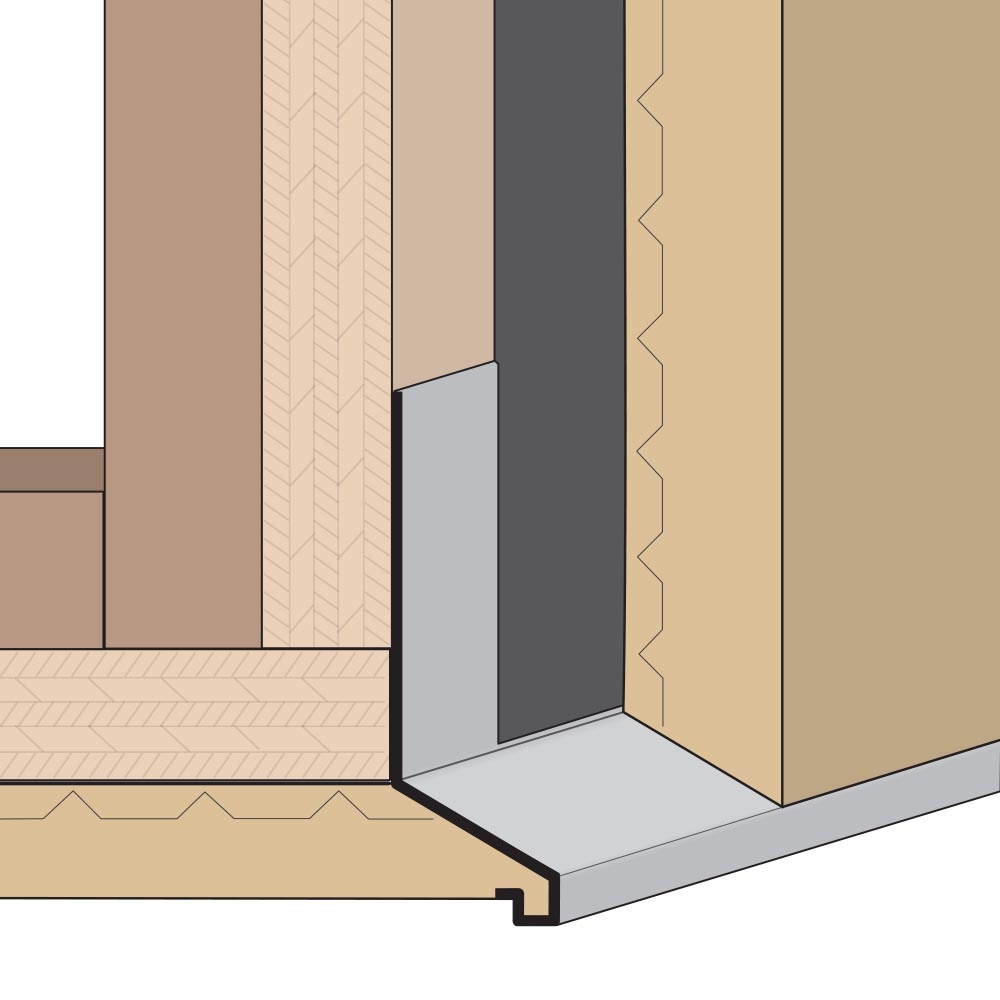

In Use

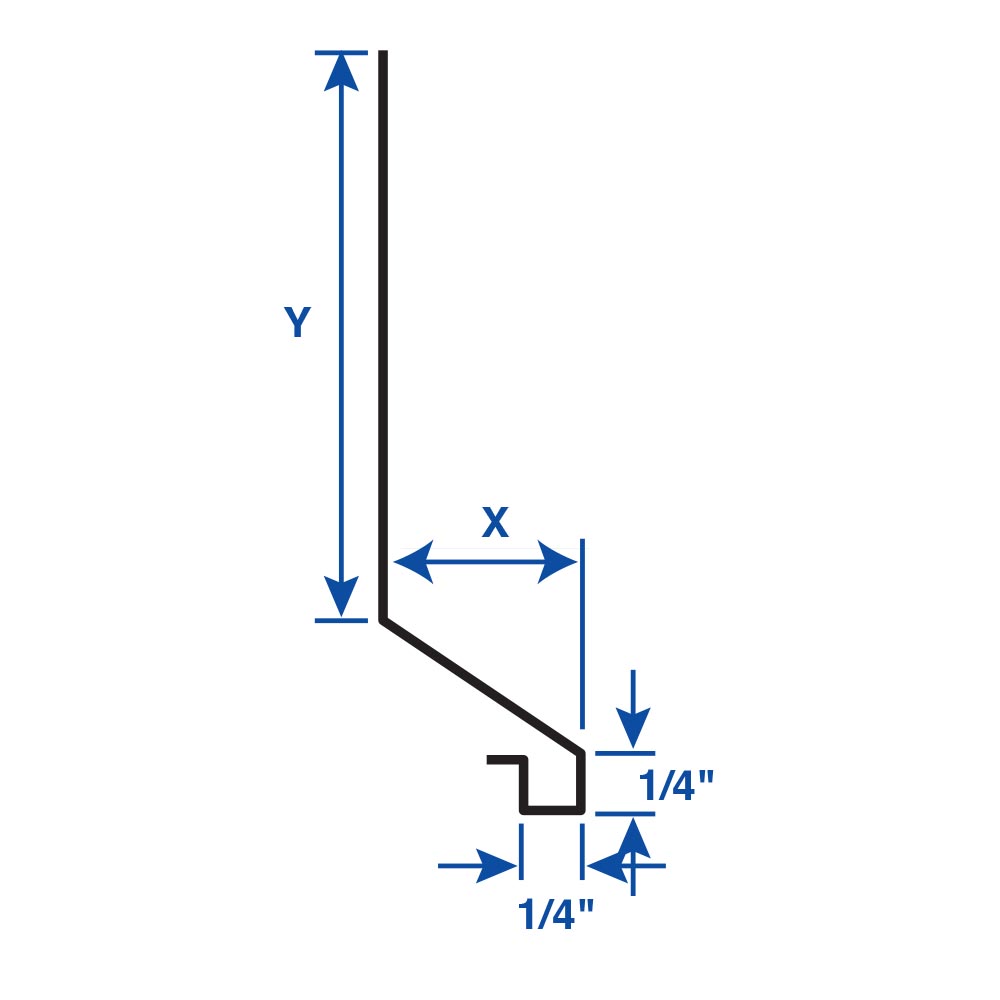

Dimensions

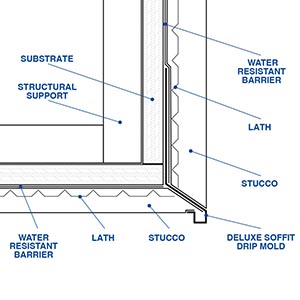

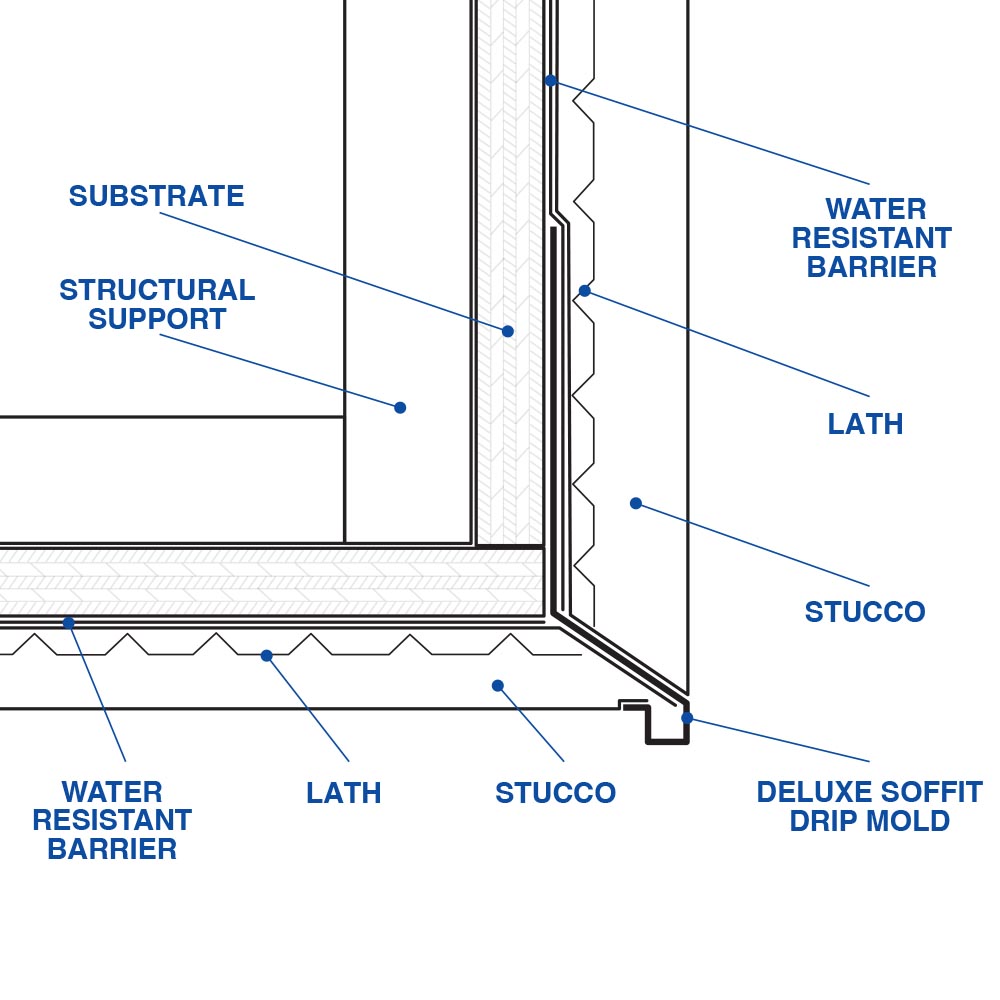

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Soffit Drip Mold Sizes Options
X Sizes
7/8" or 1-3/8" Custom Sizes Upon Request
Y Sizes
3-1/2"
Length
120"
