Deluxe Single Flange Screed
  • Available Unvented or With Either 1/8" or 1/4" Vent Holes
  • Available in Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel
The Deluxe Single Flange Screed is the same as our standard vent, less one flange, designed to butt against walls on one side while providing a plaster stop on the other. Can be used in ceiling/wall or base conditions providing perimeter airflow. Available non-vented for use as a decorative reveal upon request.
Deluxe Single Flange Screed Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Aluminum, Copper, Galvanized Steel, Bonderized® or Stainless Steel

ASTM & CODE STANDARDS
653-CS, A1018, A262, A36, A513, A653, A792, A924, B 370-12, B-209, B-209, B6/B69, C1047, C1063, C841, ML/SFA 920

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

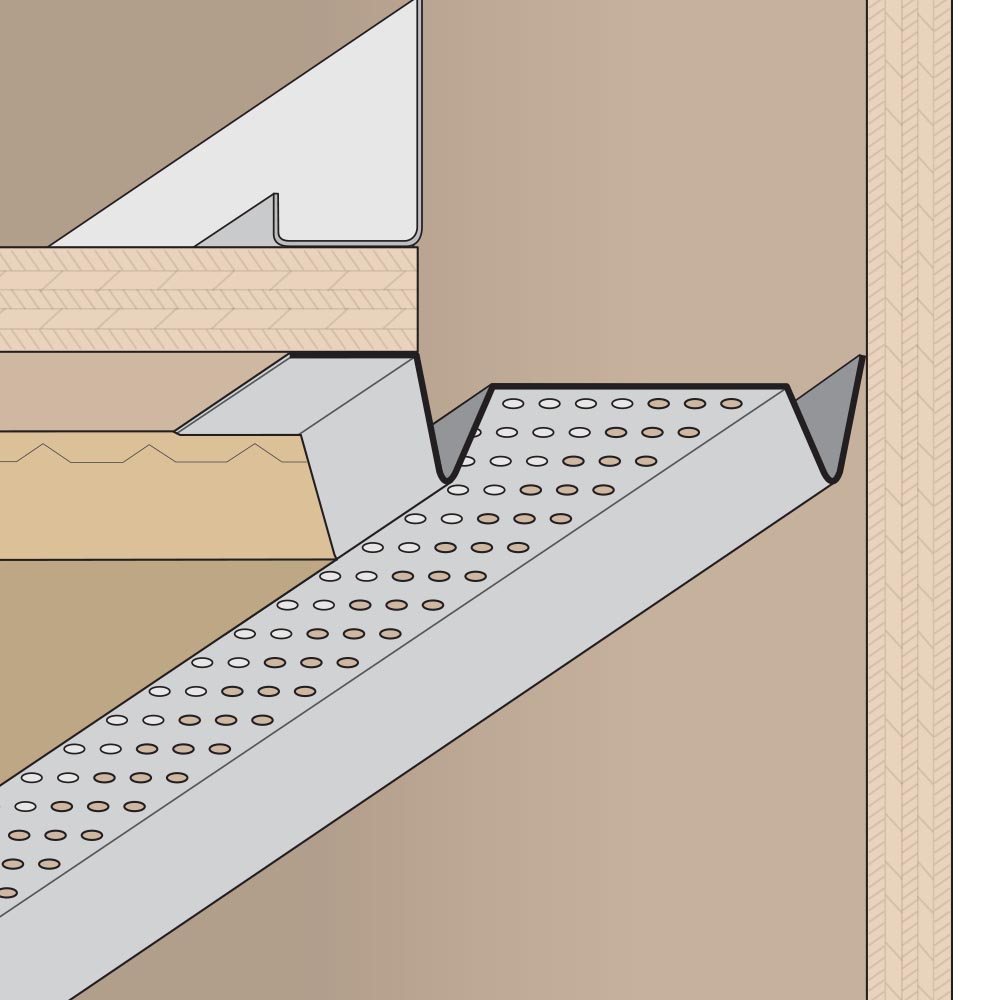

In Use

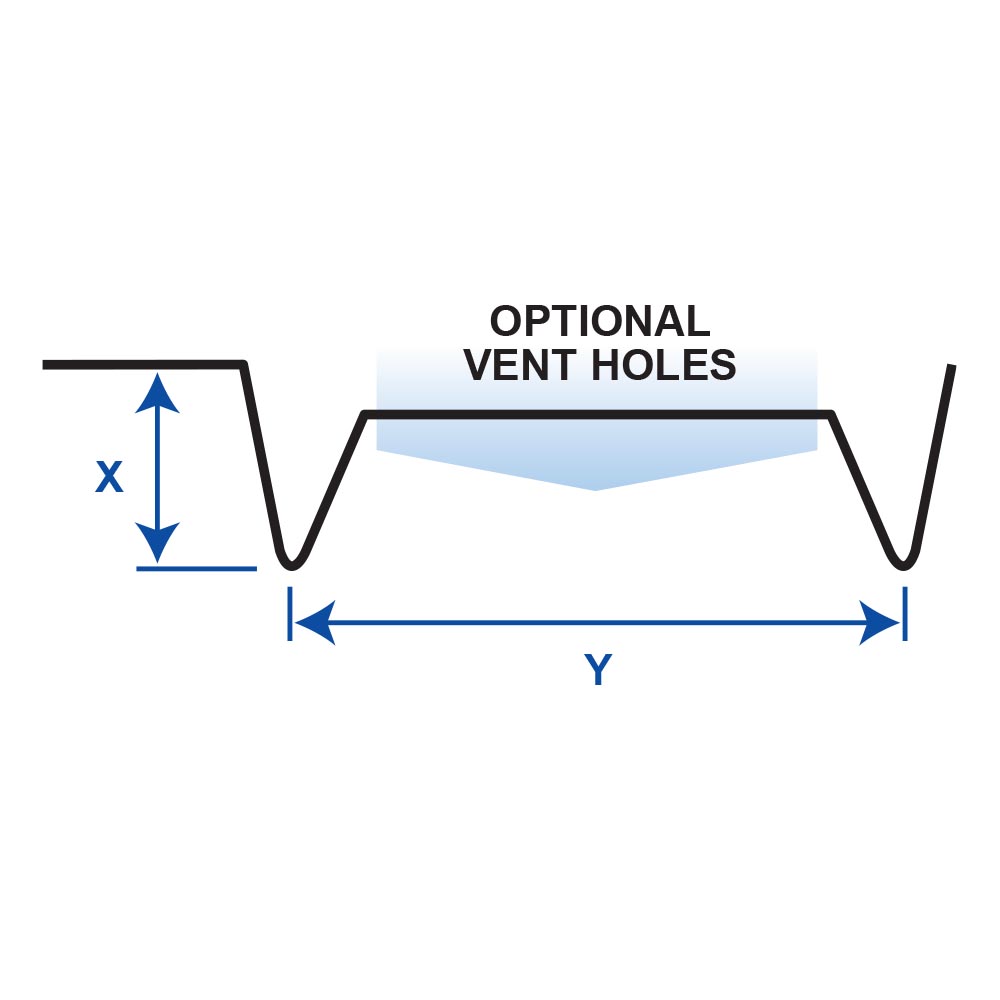

Dimensions

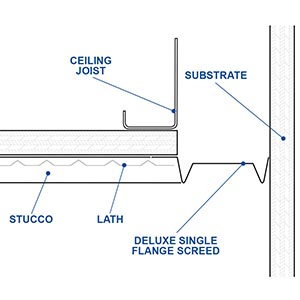

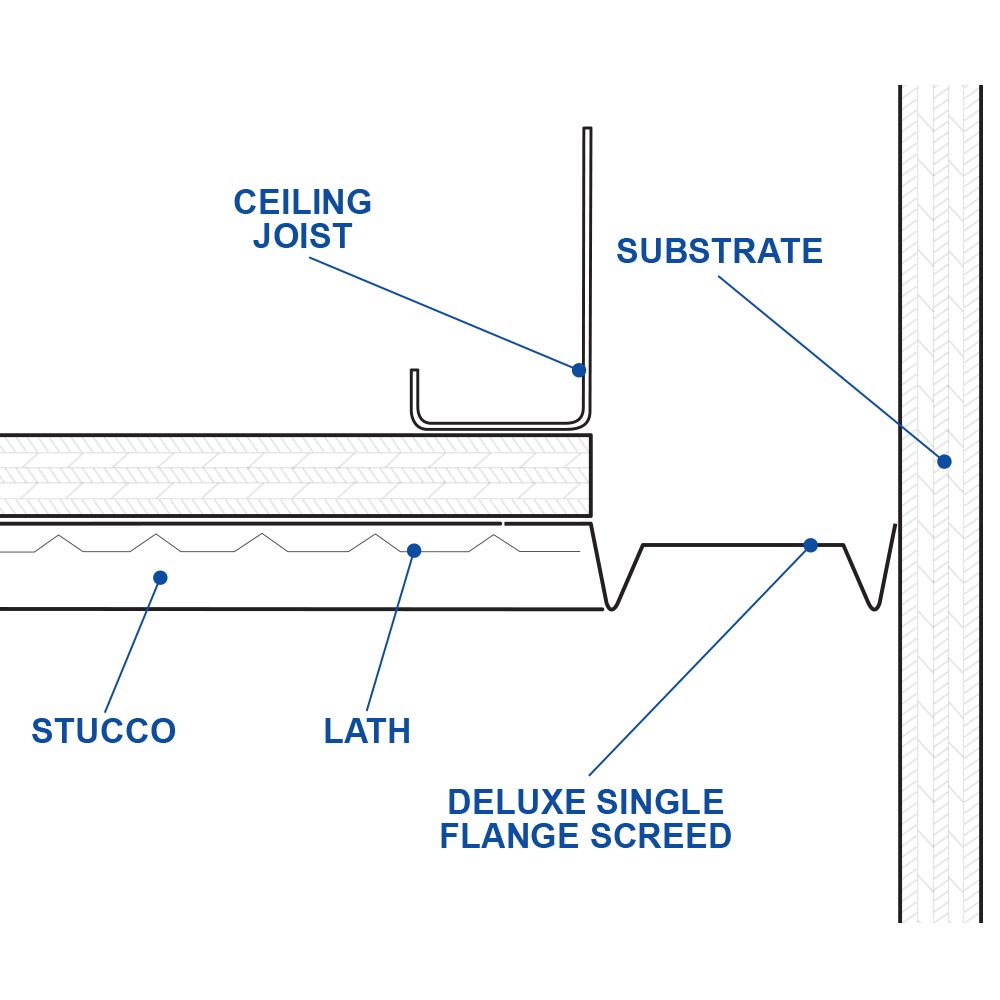

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Single Flange Screed Sizes Options
X Sizes
3/8", 1/2", 5/8", 3/4", 7/8", 1" or 1 3/8"
Y Sizes
3/4", 1", 1 1/2", 2", 2 1/2", 3", 3 1/2", 4", 4 1/2", 5", 5 1/2" or 6"
Length
120"
