Deluxe #6 Drip-Head Foundation
  • Available in Aluminum, Copper, Galvanized Steel, Bonderized or Stainless Steel
The Deluxe #6 Drip-Head Foundation is in an angles drip screed that can be used at base of walls. It may also be used as a window or door head plaster stop and flashing piece.
Deluxe #6 Drip-Head Foundation Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Aluminum, Copper, Galvanized Steel, Bonderized® or Stainless Steel

ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G90 zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69. Stainless Steel A480/A480M A580M (Stainless Steel) For installation and placement instructions refer to ASTM C1063, C841 and C926.

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Ventilation Guide
Proper Measurement: Ground and Point-To-Point

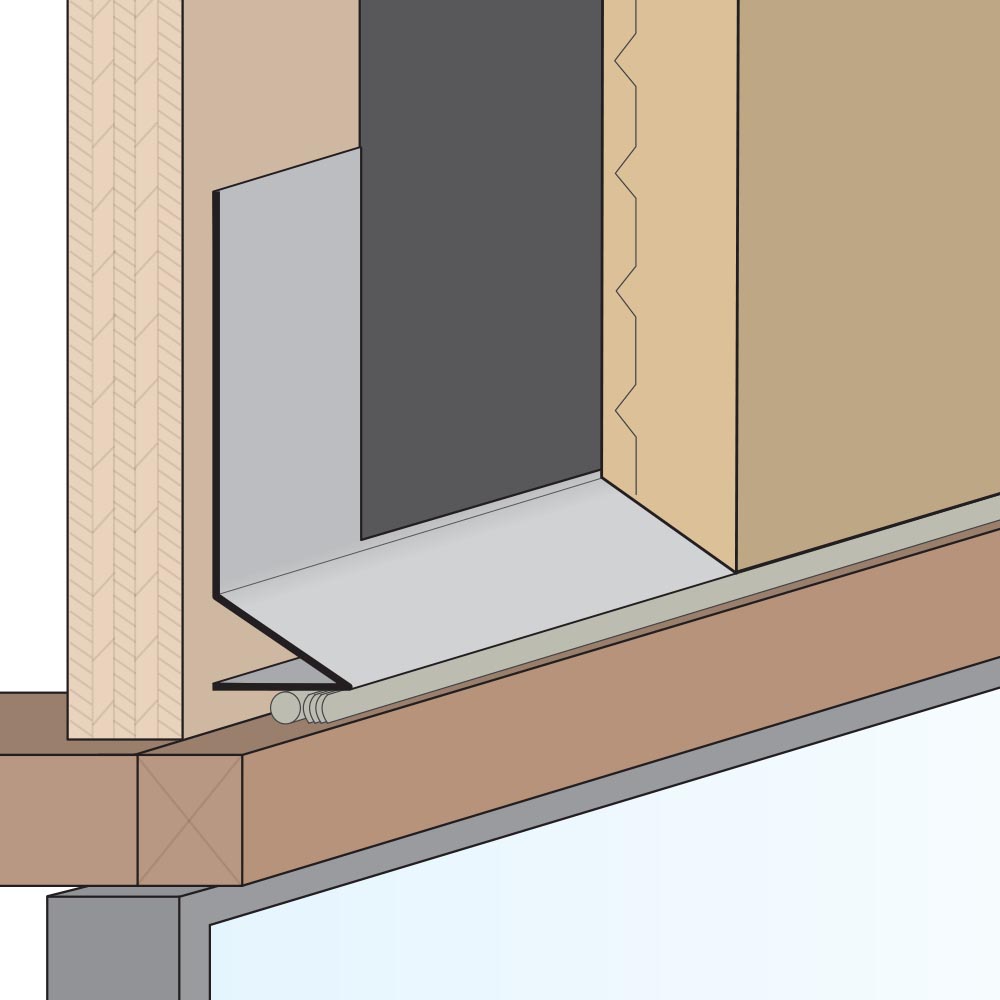

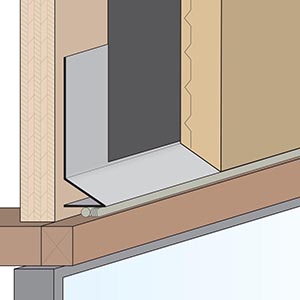

In Use

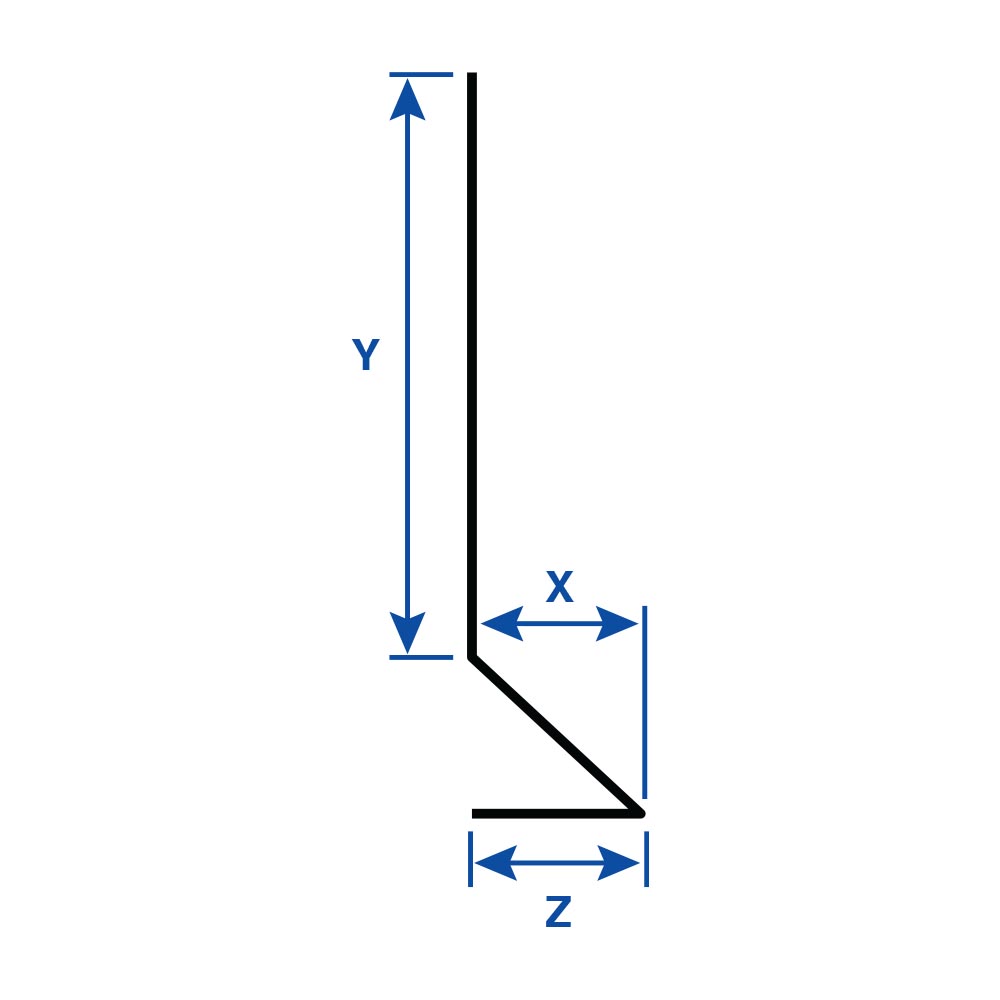

Dimensions

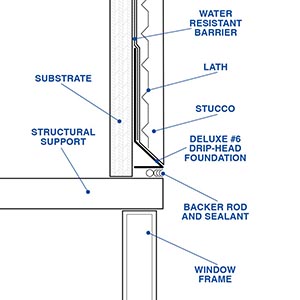

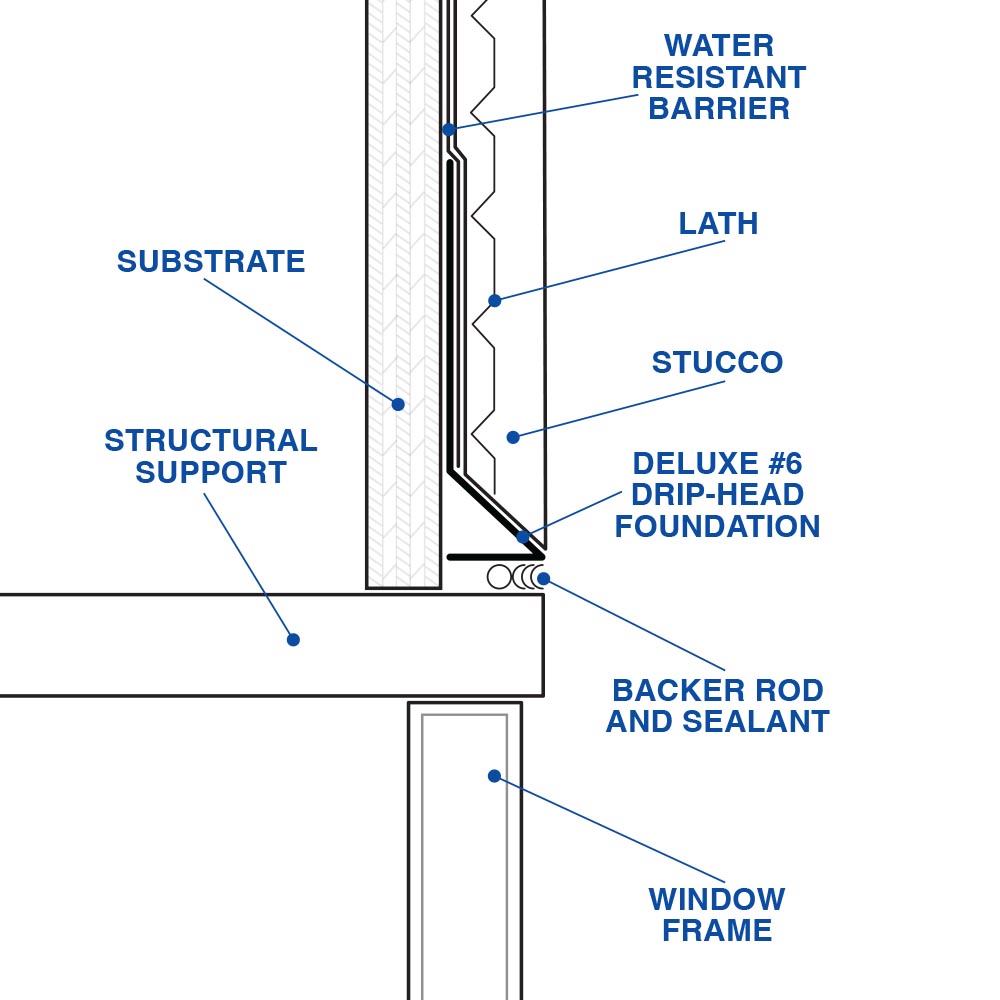

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe #6 Drip-Head Foundation Sizes Options
X Sizes
1/2", 3/4", 7/8", 1" or 1 3/8"
Y Sizes
3 1/2" or 5"
Z Sizes
1/2", 3/4", 7/8", 1" or 1 3/8"
Length
120"
