Deluxe Pipe And Conduit Clamps 2
Quote Request Form

MATERIALS AND FINISHES
All strut available in PG, HDG, stainless steel in 304, 320

ASTM & CODE STANDARDS

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Proper Measurement: Ground and Point-To-Point

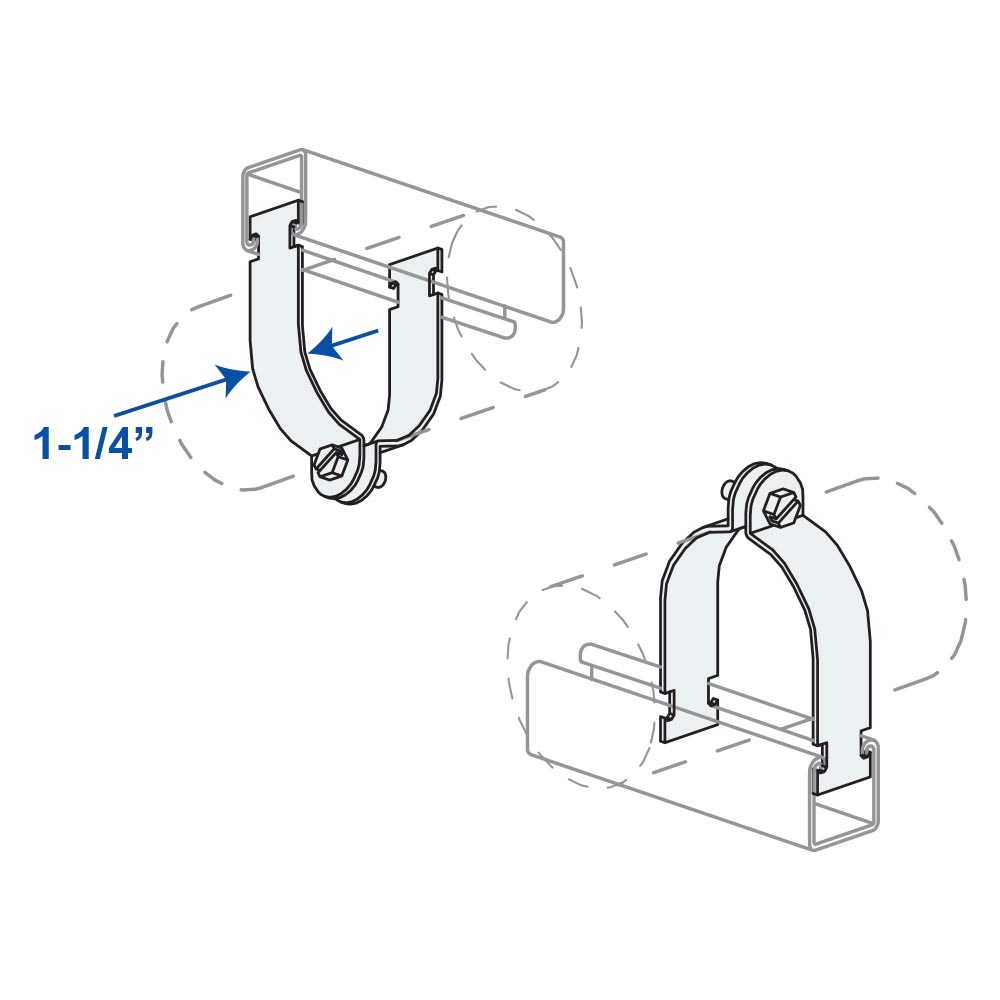

Dimensions

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Pipe And Conduit Clamps 2 Part Numbers
D1426AS EG
Conduit Size: 1/2”, O.D. Size: 0.706" (17.9 mm), Thickness Gauge: 16" (1.5 mm), Design Load: 400 lbs. (1.78 kN)
D1427AS EG
Conduit Size: 3/4”, O.D. Size: 0.922" (23.4 mm), Thickness Gauge: 16" (1.5 mm), Design Load: 400 lbs. (1.78 kN)
D1428AS EG
Conduit Size: 1”, O.D. Size: 1.163" (29.5 mm), Thickness Gauge: 14" (1.9 mm), Design Load: 600 lbs. (2.67 kN)
D1429AS EG
Conduit Size: 1-1/4”, O.D. Size: 1.510" (38.4 mm), Thickness Gauge: 14" (1.9 mm), Design Load: 4600 lbs. (2.67 kN)
D1430AS EG
Conduit Size: 1-1/2”, O.D. Size: 1.740" (44.2 mm), Thickness Gauge: 152" (2.7 mm), Design Load: 800 lbs. (3.56 kN)
D1431AS EG
Conduit Size: 2”, O.D. Size: 2.197" (55.8 mm), Thickness Gauge: 12" (2.7 mm), Design Load: 800 lbs. (3.56 kN)
