Deluxe Building Products > Strut Channels Products > Deluxe Pipe And Conduit Clamps


Deluxe Pipe And Conduit Clamps
Quote Request Form

MATERIALS AND FINISHES
All strut available in PG, HDG, stainless steel in 304, 319

ASTM & CODE STANDARDS

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Proper Measurement: Ground and Point-To-Point

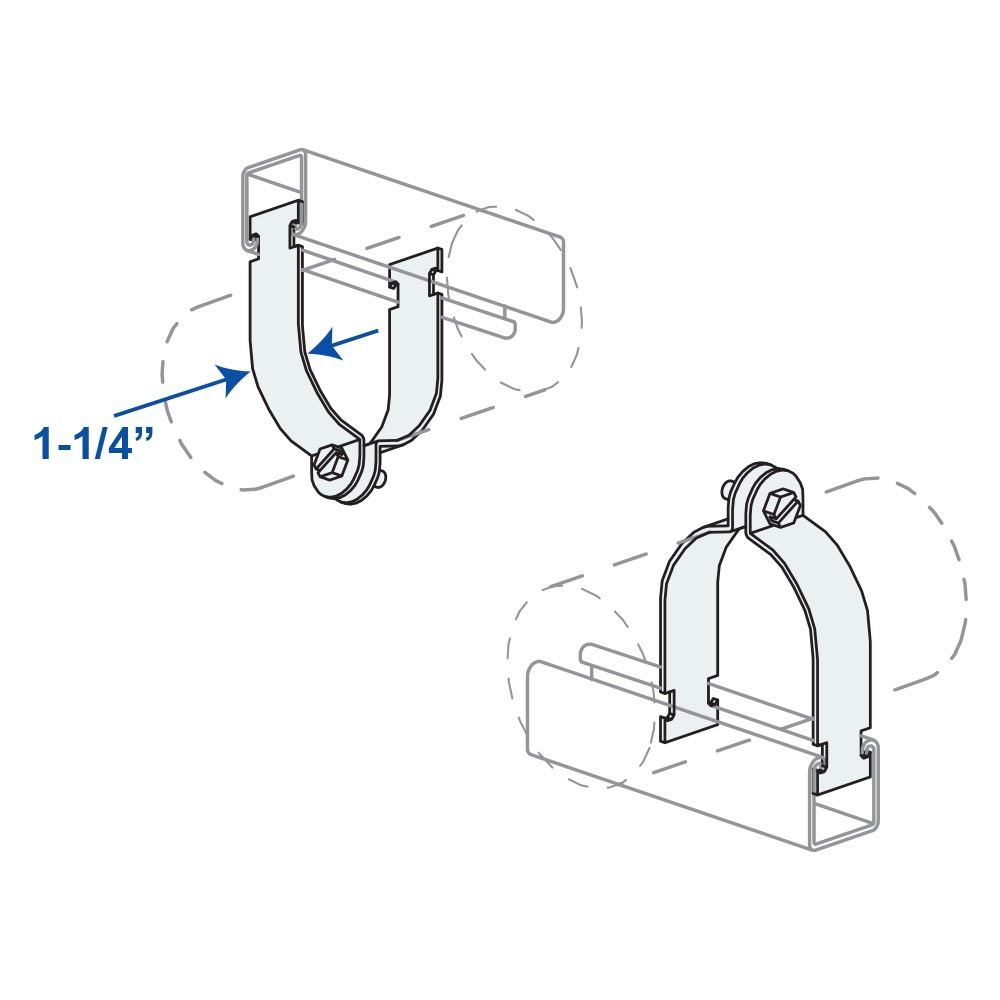

Dimensions

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Pipe And Conduit Clamps Part Numbers
D1111AS EG
Conduit Size: 1/2”, O.D. Size: 0.840" (21.3 mm), Thickness Gauge: 16" (1.5 mm), Design Load: 400 lbs. (1.78 kN)
D1112AS EG
Conduit Size: 3/4", O.D. Size: 1.050" (26.7 mm), Thickness Gauge: 14" (1.9 mm), Design Load: 600 lbs. (2.67 kN)
D1113AS EG
Conduit Size: 1", O.D. Size: 1.315" (33.4 mm), Thickness Gauge: 14" (1.9 mm), Design Load: 600 lbs. (2.67 kN)
D1114AS EG
Conduit Size: 1-1/4", O.D. Size: 1.660" (42.2 mm), Thickness Gauge: 14" (1.9 mm), Design Load: 600 lbs. (2.67 kN)
D1115AS EG
Conduit Size: 1-1/2", O.D. Size: 1.900" (48.3 mm), Thickness Gauge: 12" (2.7 mm), Design Load: 800 lbs. (3.56 kN)
D1117AS EG
Conduit Size: 2", O.D. Size: 2.375" (60.3 mm), Thickness Gauge: 12" (2.7 mm), Design Load: 800 lbs. (3.56 kN)
D1118AS EG
Conduit Size: 2-1/2", O.D. Size: 2.875" (73.0 mm), Thickness Gauge: 12" (2.7 mm), Design Load: 800 lbs. (3.56 kN)
D1119AS EG
Conduit Size: 3", O.D. Size: 3.500" (88.9 mm), Thickness Gauge: 12" (2.7 mm), Design Load: 800 lbs. (3.56 kN)
D1120AS EG
Conduit Size: 3-1/2", O.D. Size: 4.000" (101.6 mm), Thickness Gauge: 11" (3.0 mm), Design Load: 1000 lbs. (4.45 kN)
D1121AS EG
Conduit Size: 4", O.D. Size: 4.500" (144.3 mm), Thickness Gauge: 11" (3.0 mm), Design Load: 1000 lbs. (4.45 kN)
