Deluxe U-Bolt Beam Clamp
  • 3/8" Hex Nuts And U-Bolt Included.
Quote Request Form

MATERIALS AND FINISHES
All strut available in PG, HDG, stainless steel in 304, 336

ASTM & CODE STANDARDS

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Proper Measurement: Ground and Point-To-Point


Dimensions

Dimensions

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe U-Bolt Beam Clamp Part Numbers

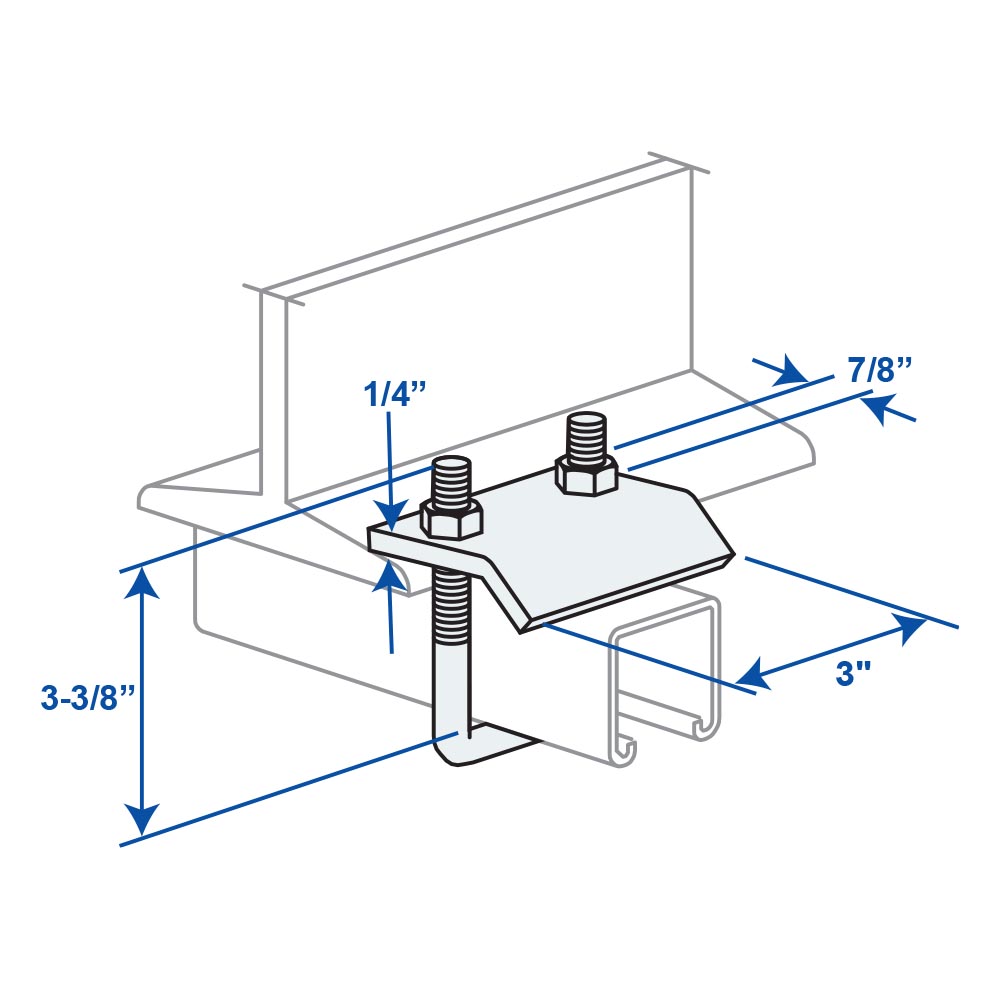

D2785 EG
3-3/8" (85.7 mm)

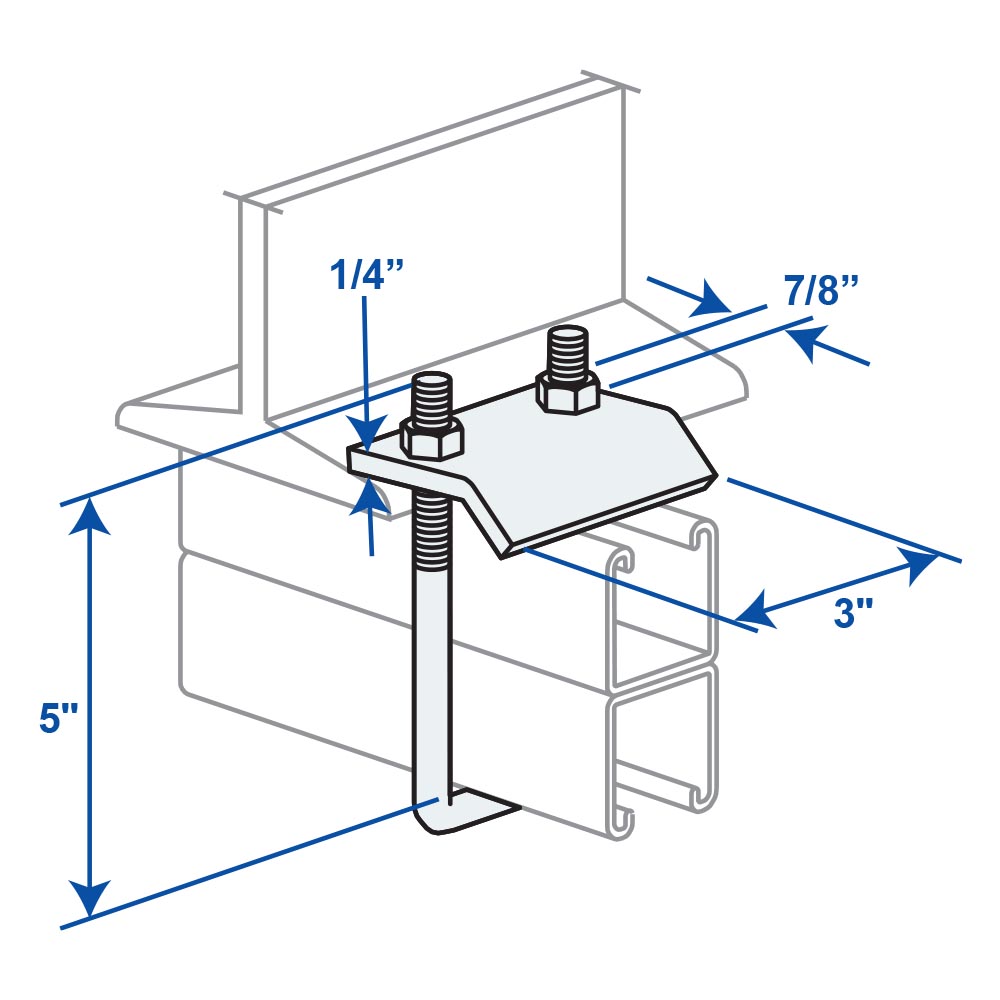

D2786 EG
5" (127.0 mm)
