Deluxe End Cap With Tapeable Flange
  • Optional Key Holes in Tape Flange
  • Available Anodized, PaintLoc or Jet Kote Finished
  • Available in Aluminum
  • Custom Sizes Available!
The Deluxe End Cap With Tapeable Flange is used as an end cap to finish off partition walls. Standard length is 10 foot. The ECX End Cap has optional holes in the taping flange for keying the drywall mud.
Deluxe End Cap With Tapeable Flange Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Galvanized Steel

ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G60 (G90 upon request) zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69. ASTM A 1003 OR A653 GRADE 33 OR 50 WITH G40, G60 OR G96

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Proper Measurement: Ground and Point-To-Point

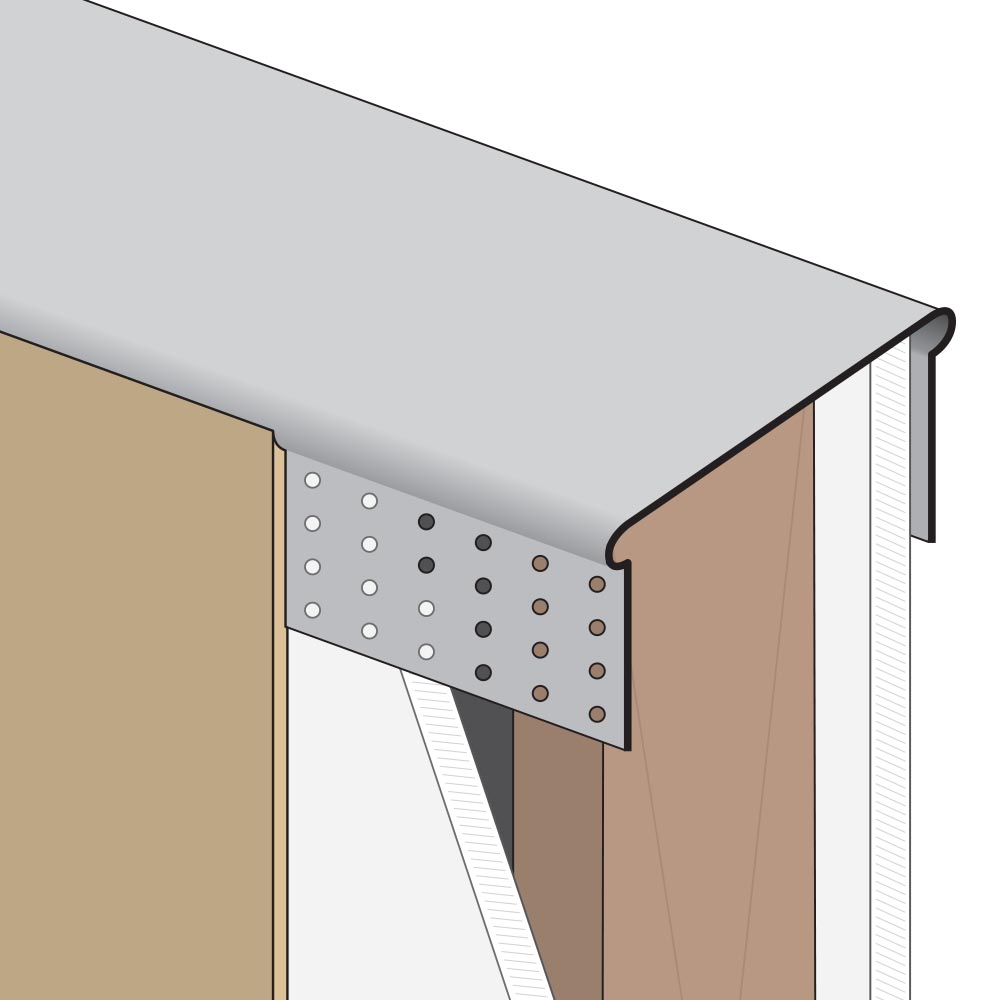

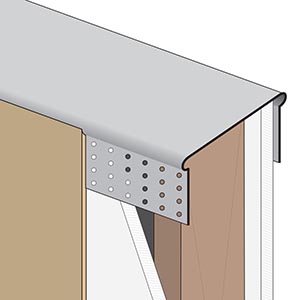

In Use

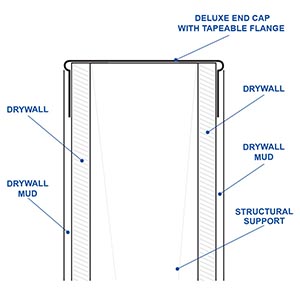

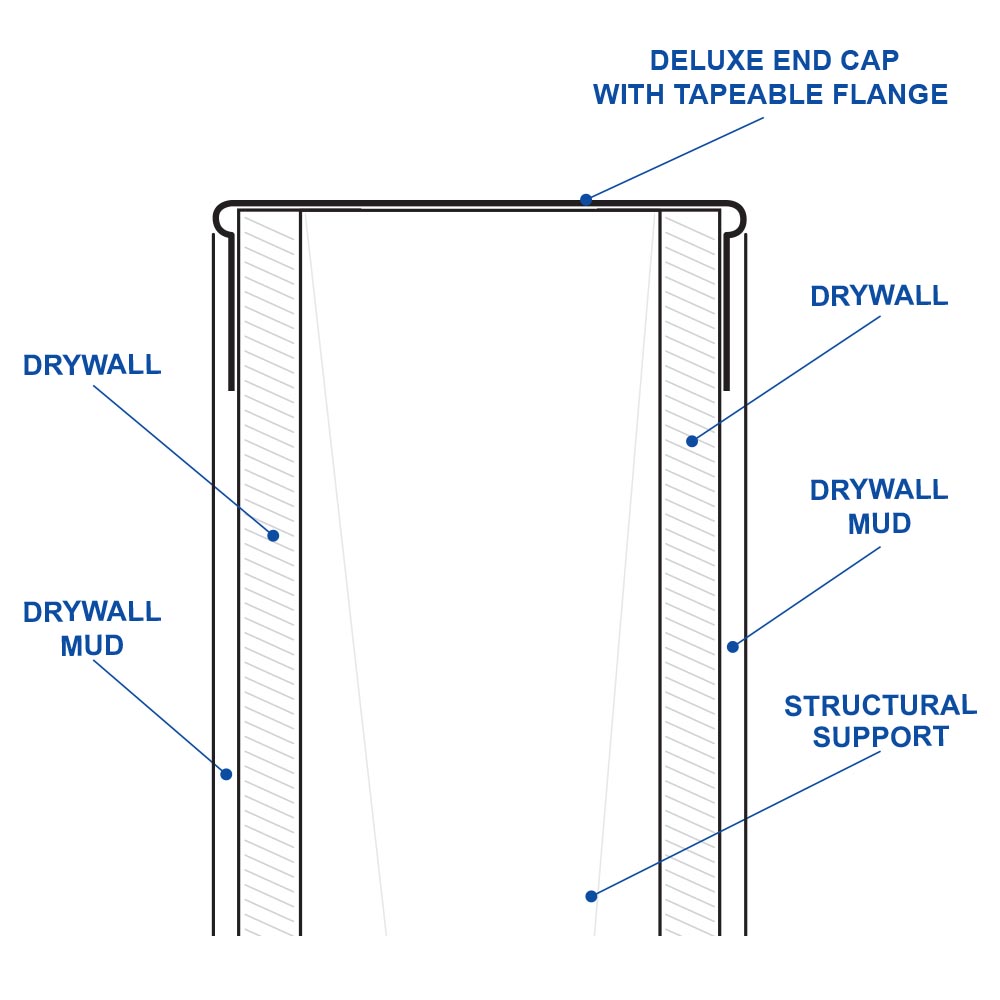

Dimensions

Dimensions

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe End Cap With Tapeable Flange Sizes Options
X Sizes
3-3/4", 3-7/8", 4-7/8", 5-1/4" or 7-1/4"
Y Sizes
1-1/4"
Length
120"
