Deluxe Building Products > Framing Products > Deluxe Z-Bar

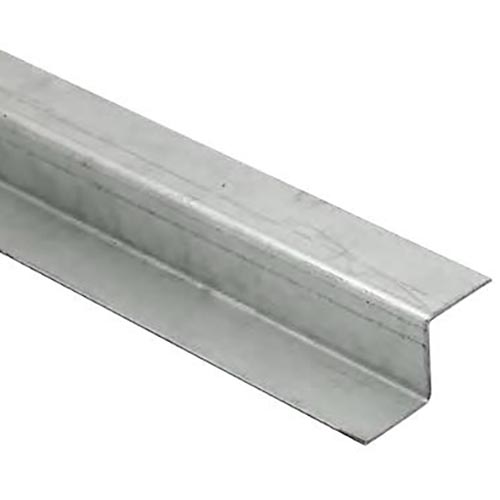

Deluxe Z-Bar
  • Available in Galvanized Steel
  • Custom Sizes Available!
The Deluxe Z-Bar provides a method of attaching rigid insulation and other material.
Deluxe Z-Bar Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Galvanized Steel

ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G60 (G90 upon request) zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69.

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Proper Measurement: Ground and Point-To-Point

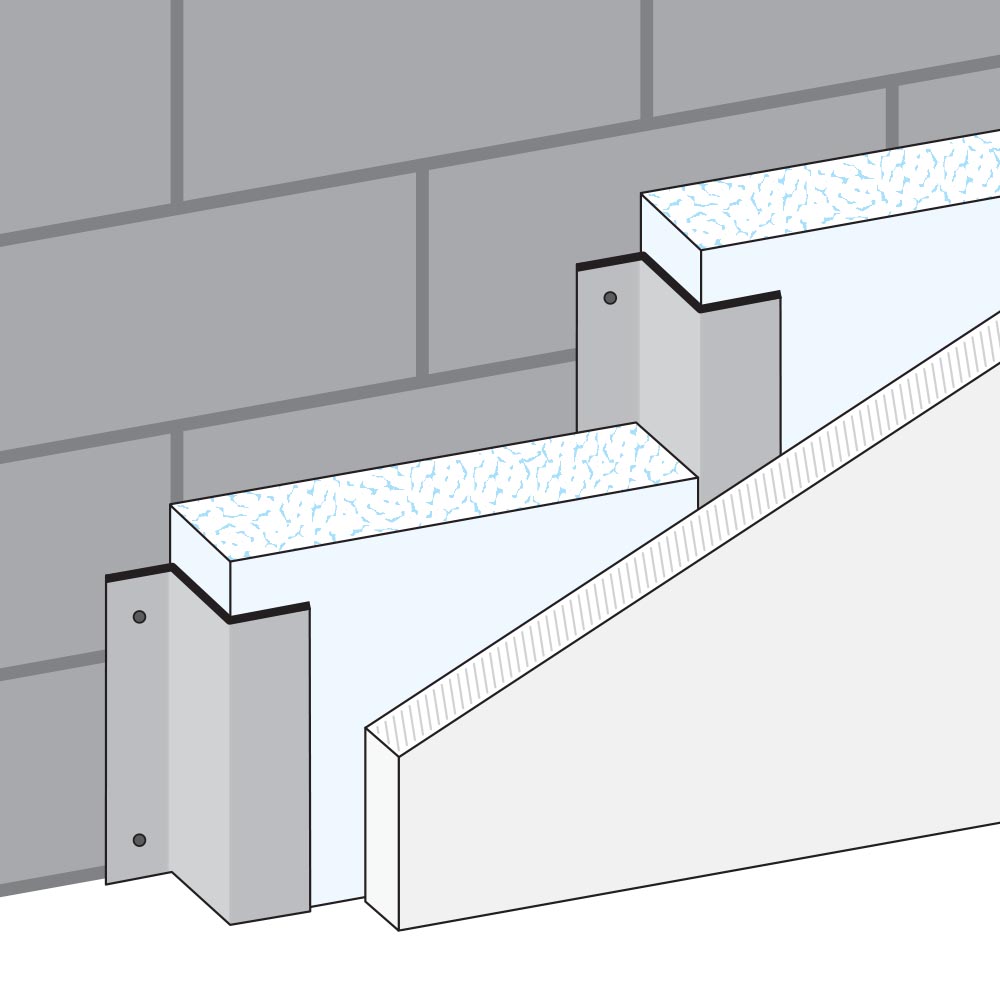

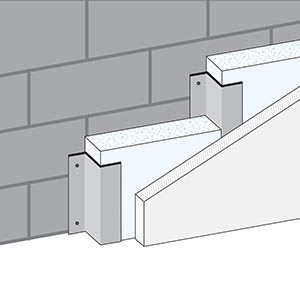

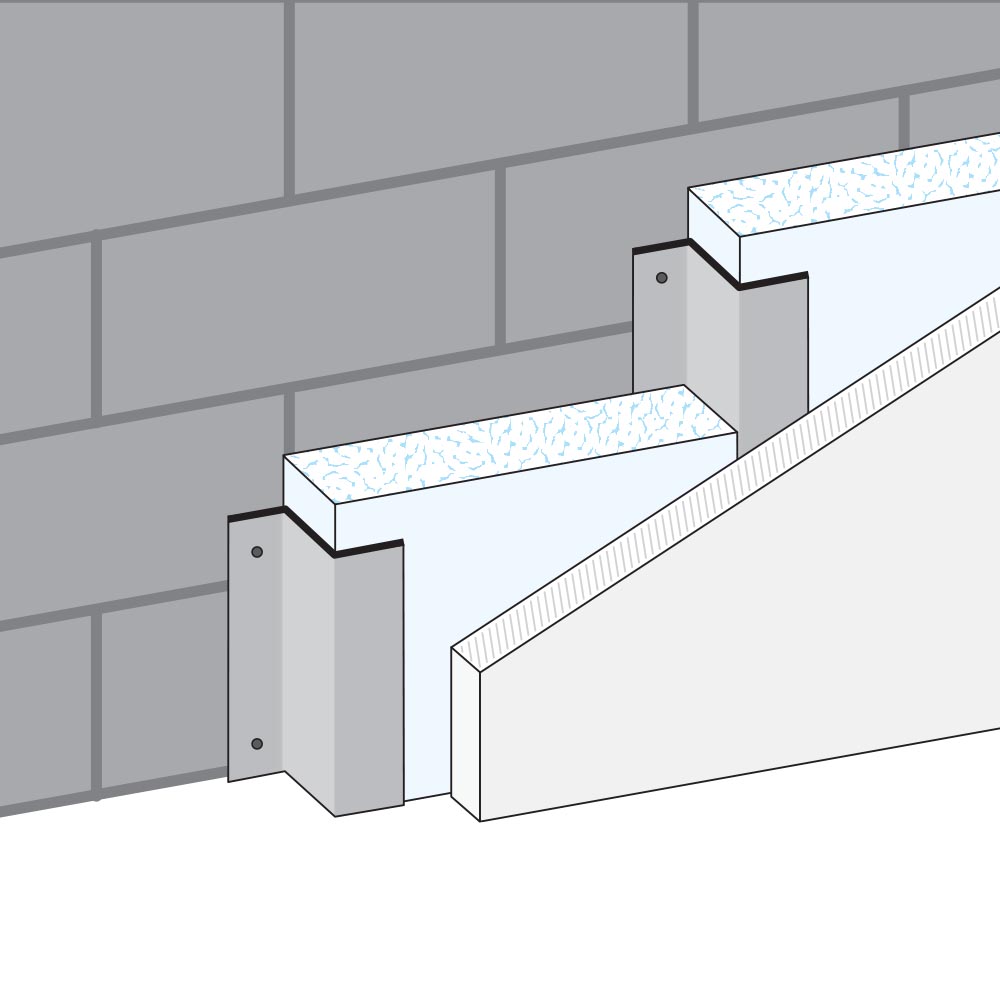

In Use

Dimensions

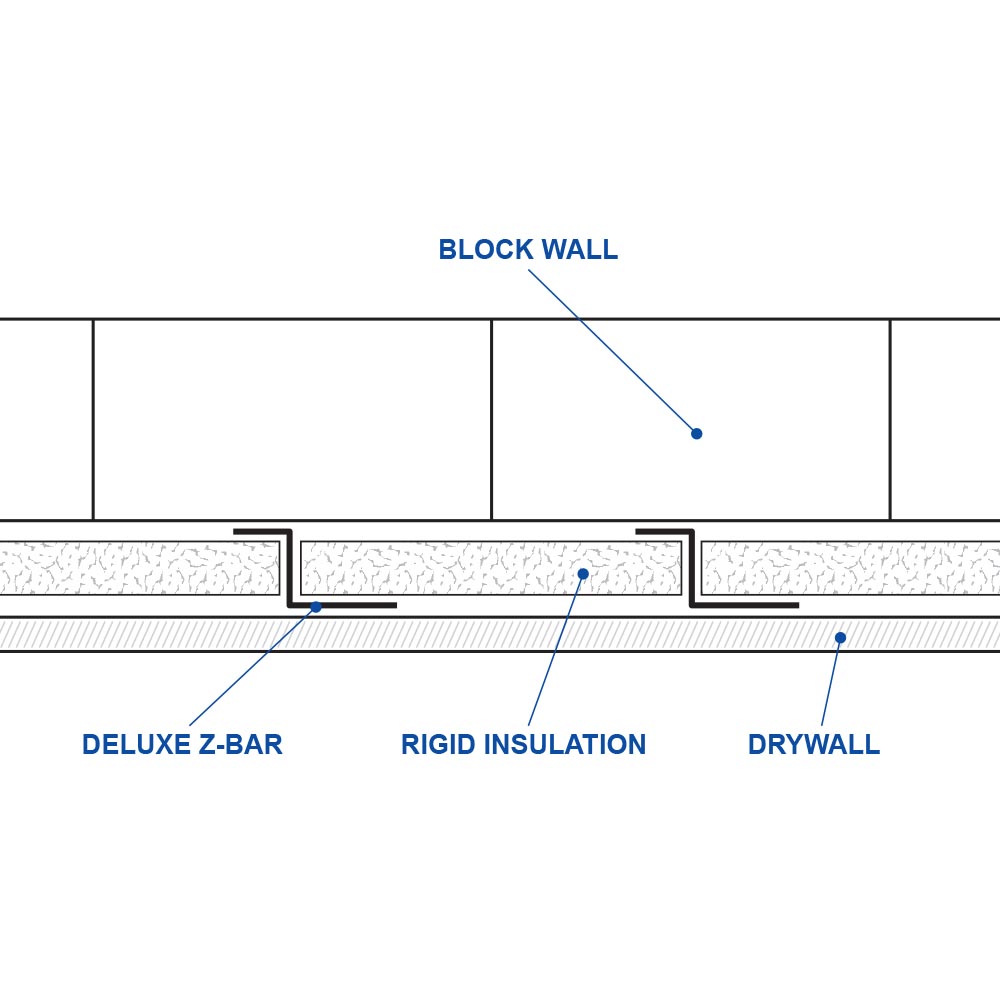

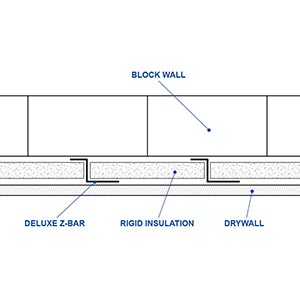

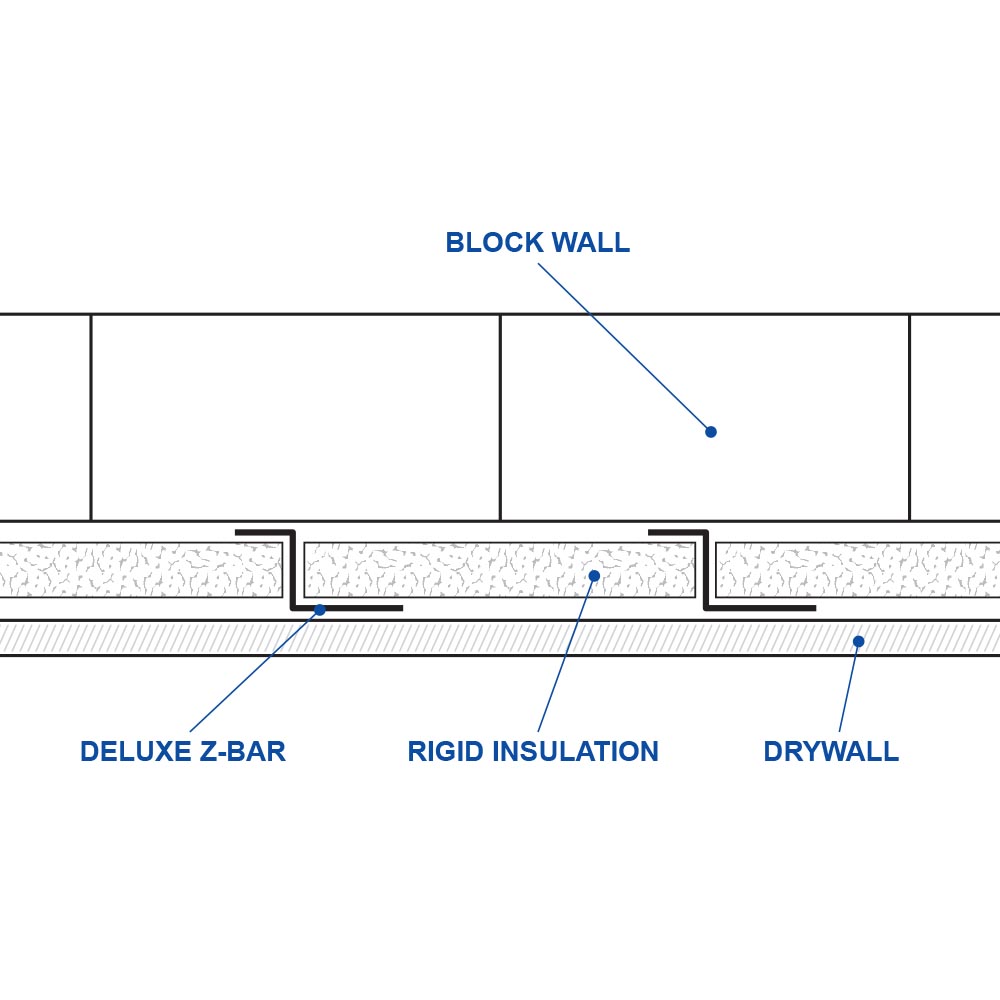

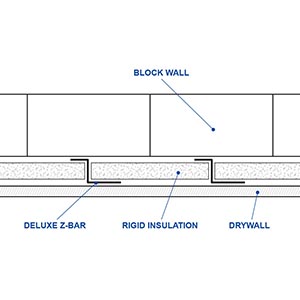

Installation

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe Z-Bar Sizes Options
X Sizes
User Defined
Y Sizes
User Defined
Z Sizes
User Defined
Length
User Defined
