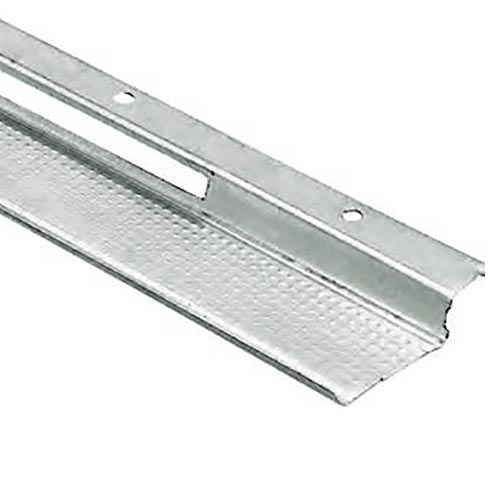

Deluxe RC-1 (Resilient Channel)
  • Available in Galvanized Steel 25ga (18Mil)
  • Custom Sizes Available!
The Deluxe RC-1 (Resilient Channel) is made with a 1-1/4" top flange, and a 1/2" nailing flange, giving the channel 1/2" furring height from the face of the wall stud.

Sound Transmission Loss Test Report (#TL21-339)
Deluxe RC-1 (Resilient Channel) Data Sheet
Quote Request Form

MATERIALS AND FINISHES
Galvanized Steel

ASTM & CODE STANDARDS
All Accessories are fabricated from prime galvanized steel G60 (G90 upon request) zinc coating by the hot dipped method, conforming to steel and coating specification ASTM A-653/A-653M or zinc alloy meeting ASTM B-69. ASTM A 1003 OR A653 GRADE 33 OR 50 WITH G40, G60 OR G93

ADDITIONAL INFORMATION
Please note not all combinations of sizes and materials may be available in stock.
Not all X Sizes (Depth), Y Sizes (Reveal) and material combinations may be possible.
Proper Measurement: Ground and Point-To-Point

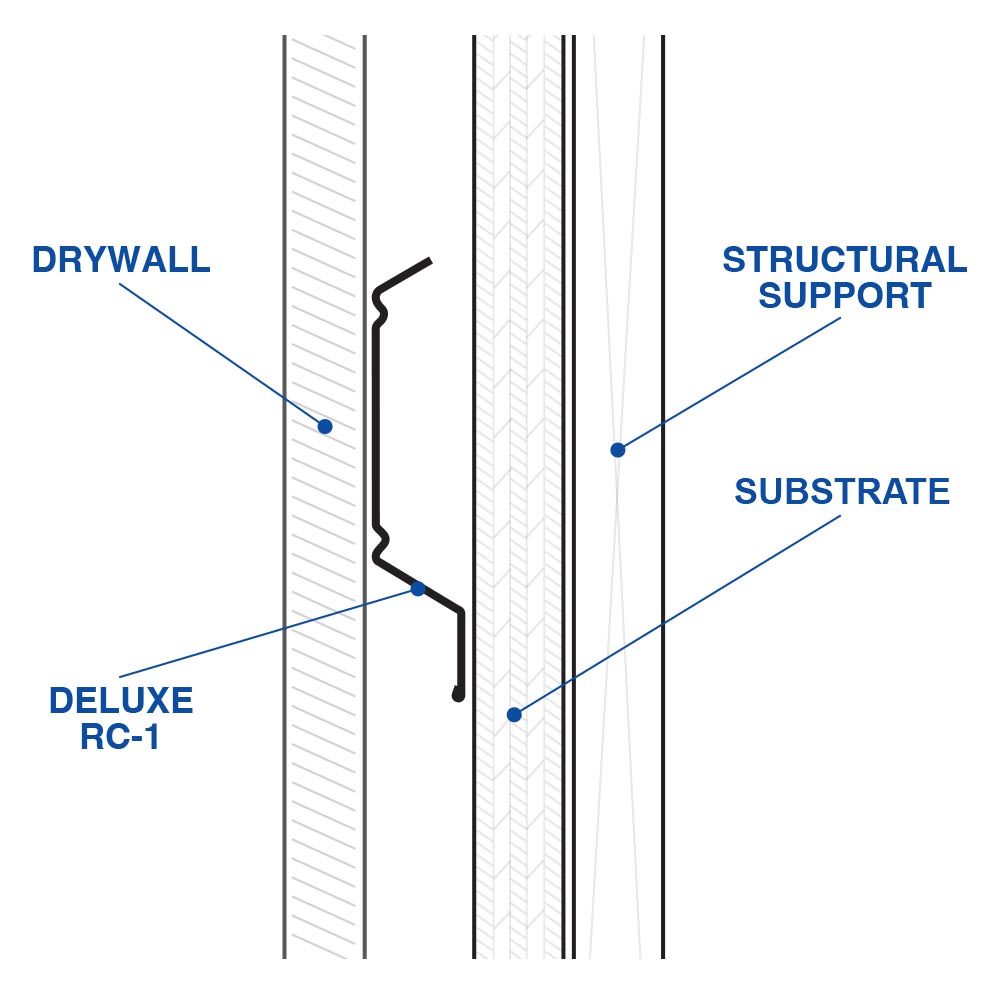

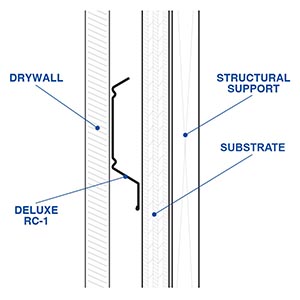

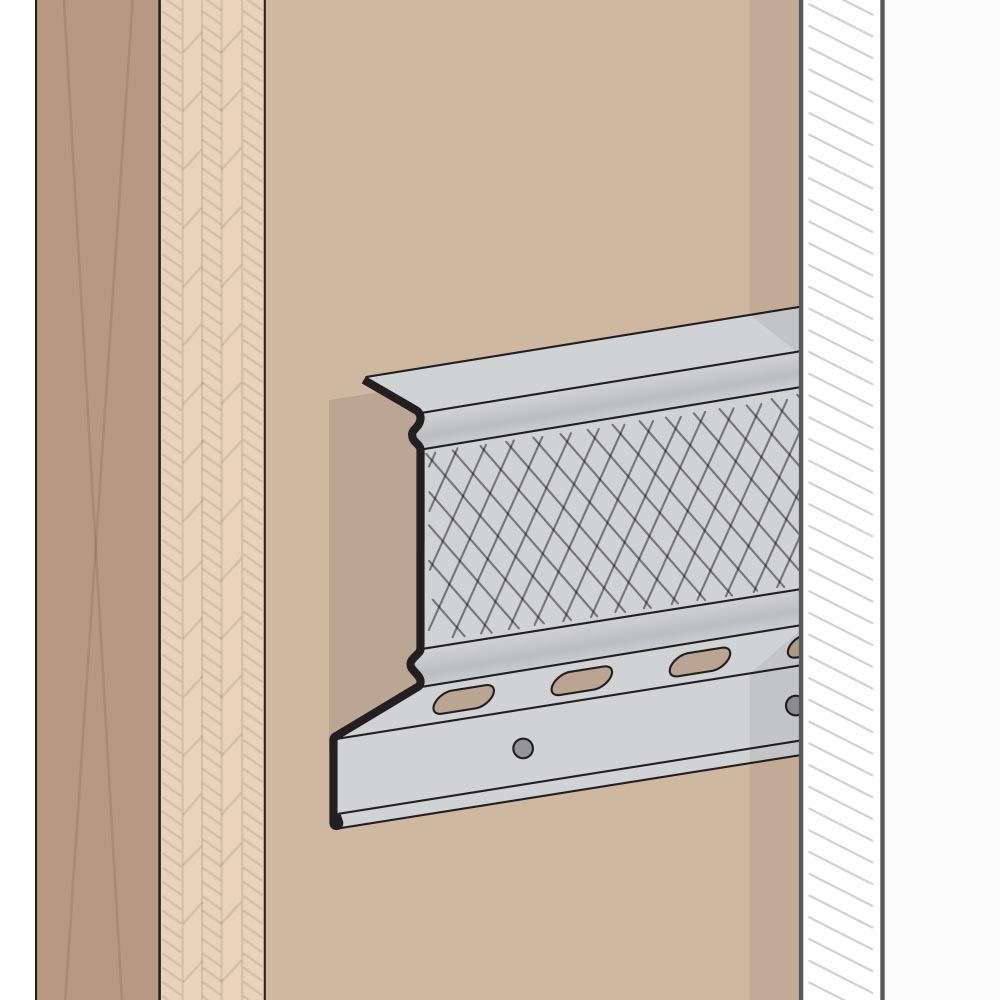

In Use

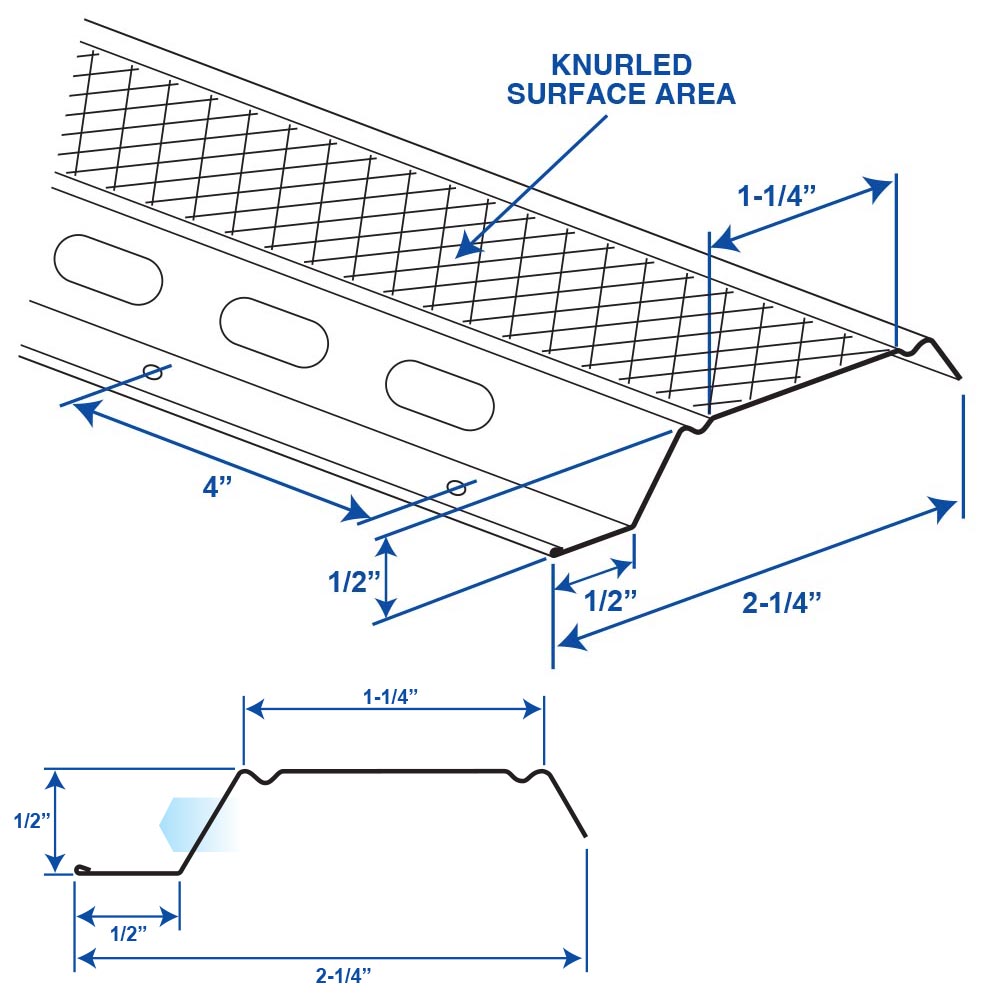

Dimensions

Dimensions

Note: This Installation Guide is supplied solely to assist in the selection and application of product manufactured by Deluxe Building Products. This drawing is generic in nature and should not be used in design or construction without an independent evaluation by a qualified Architect or Engineer of Record.


Available Deluxe RC-1 (Resilient Channel) Sizes Options
Top
1-1/4"
Flange
1/2"
Height
1/2"
